SAFARI

Nissan SAFARI · 1980 · 6,567 parts · 681 categories

← Back to categories

6,567 items

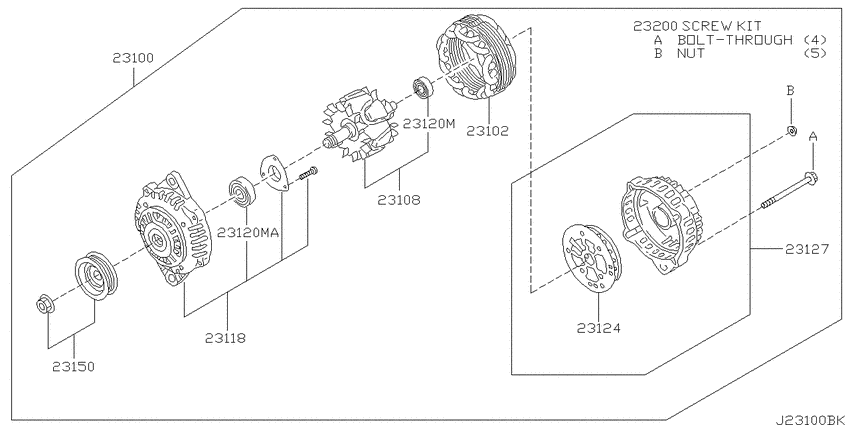

Alternator (2002-11-01 ~ ; TB48DE) 17

#	OEM	Part name
23100	23100-VC200	Alternator Assy
23100	23100-VD70A	Alternator Assy
23100	14037-42L0A	Washer-Plain
23102	23102-31U01	Stator Assy
23108	23108-2Y005	Rotor Assy
23108	23108-VB00A	Rotor Assy
23118	23118-VB000	Cover Assy-Front
23118	23118-VD70A	Cover Assy-Front
23120	23120-0M000	Bearing-Ball
23120	23120-0M005	Bearing-Ball
23124	23124-VC200	Rectifier Assy
23124	23124-VD70A	Rectifier Assy
23127	23127-VC200	Cover Assy-Rear
23150	23150-6P000	Pulley Assy
23150	23150-VD70A	Pulley Assy
23200	23200-0M000	Screw Set
23200	23200-CN10A	Screw Set

OEM	Part name	Category
14037-42L0A	Washer-Plain	Alternator (2002-11-01 ~ ; TB48DE)
23100-VC200	Alternator Assy	Alternator (2002-11-01 ~ ; TB48DE)
23100-VD70A	Alternator Assy	Alternator (2002-11-01 ~ ; TB48DE)
23102-31U01	Stator Assy	Alternator (2002-11-01 ~ ; TB48DE)
23108-2Y005	Rotor Assy	Alternator (2002-11-01 ~ ; TB48DE)
23108-VB00A	Rotor Assy	Alternator (2002-11-01 ~ ; TB48DE)
23118-VB000	Cover Assy-Front	Alternator (2002-11-01 ~ ; TB48DE)
23118-VD70A	Cover Assy-Front	Alternator (2002-11-01 ~ ; TB48DE)
23120-0M000	Bearing-Ball	Alternator (2002-11-01 ~ ; TB48DE)
23120-0M005	Bearing-Ball	Alternator (2002-11-01 ~ ; TB48DE)
23124-VC200	Rectifier Assy	Alternator (2002-11-01 ~ ; TB48DE)
23124-VD70A	Rectifier Assy	Alternator (2002-11-01 ~ ; TB48DE)
23127-VC200	Cover Assy-Rear	Alternator (2002-11-01 ~ ; TB48DE)
23150-6P000	Pulley Assy	Alternator (2002-11-01 ~ ; TB48DE)
23150-VD70A	Pulley Assy	Alternator (2002-11-01 ~ ; TB48DE)
23200-0M000	Screw Set	Alternator (2002-11-01 ~ ; TB48DE)
23200-CN10A	Screw Set	Alternator (2002-11-01 ~ ; TB48DE)

Source: Public OEM parts-catalog data
Variants: 2 / 82
Category: 681
Collected: 2026-07-27
