SA60

Toyota CARINA · 1981 · 4,838 parts · 170 categories
SA60 ×

← Back to categories

4,838 items

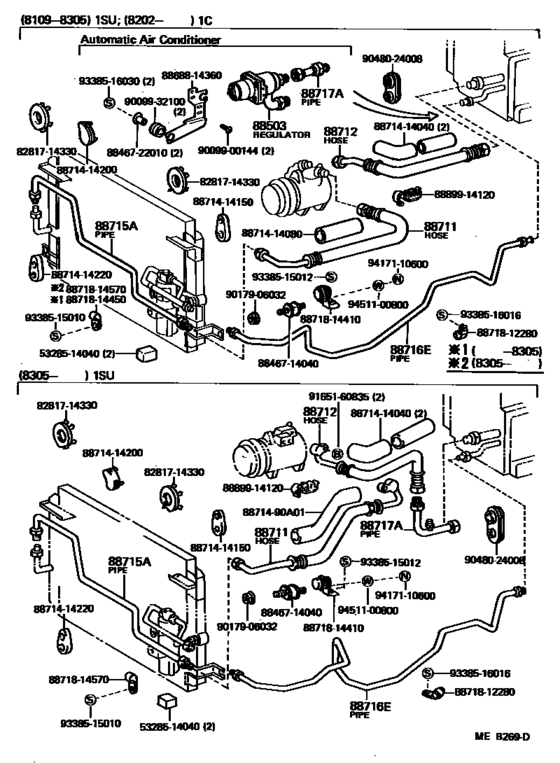

Heating & Air Conditioning - Cooler Piping ([09.1981 - 04.1988] (8109-8804)CA6#,SA60) 43
#OEMPart name
88503 88503-14070 Regulator Assy, Pressure
88711 88711-14500 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-14570 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-14710 Hose, Cooler Refrigerant Suction, No.1
88712 88712-14740 Hose, Cooler Refrigerant Suction, No.1
88712 88712-14890 Hose, Cooler Refrigerant Suction, No.1
88715 88715-14140 Pipe, Cooler Refrigerant Discharge, A
88715 88715-14170 Pipe, Cooler Refrigerant Discharge, A
88716 88716-14760 Pipe, Cooler Refrigerant Liquid, C
88717 88717-14240 Pipe, Cooler Refrigerant Suction, A
88717 88717-14270 Pipe, Cooler Refrigerant Suction, A
8871490 88714-90A01 Insulator, Cooler Refrigerant Hose, No.1
8871490 88714-89106 Insulator, Cooler Refrigerant Hose, No.1
5328514040 53285-14040 Cover, Front Bumper Arm Hole
8281714330 82817-14330 Protector, Wiring Harness, No.1
8846714040 88467-14040 Cushion, Cooler Condenser, No.1
8846722010 88467-22010 Insulator, Cooler Condenser Mounting
8868814360 88688-14360 Bracket, Cooler Diaphragm
8871414040 88714-14040 Insulator, Cooler Refrigerant Hose, No.1
8871414040 87173-36040 Insulator, Cooler Refrigerant Hose, No.4
8871414080 88714-14080 Insulator, Cooler Refrigerant Hose, No.2
8871414080 88714-24020 Insulator, Cooler Refrigerant Hose, No.1
8871414150 88714-14150 Hose, Cooler Refrigerant Liquid, No.1
8871414200 88714-14200 Hose, Cooler Refrigerant Liquid, No.1
8871414220 88714-14220 Hose, Cooler Refrigerant Liquid, No.1
8871812280 88718-12280 Clamp(For Cooler Refrigerant Pipe), No.1
8871814410 88718-14410 Pipe, Cooler Refrigerant Suction, No.2
8871814450 88718-14450 Clamp(For Cooler Refrigerant Pipe), No.1
8871814570 88718-14570 Pipe, Cooler Refrigerant Suction, No.2
8889914120 88899-14120 Cover, Evaporator
9009900144 90099-00144 New Genuine Part
9009932100 90099-32100 Cushion, Cooler Condenser, No.2
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9048024008 90480-24008 Grommet (For Cooler Unit)
9048024008 90099-32137 Grommet (For Cooler Unit)
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9338515010 93385-15010 Screw(For Steering Tilt Lever)
9338515012 93385-15012 SCREW
9338516016 93385-16016 New Genuine Part
9338516030 93385-16030 Lever, Cooler Control, No.1
9417110600 94171-10600 New Genuine Part
9451100800 94511-00800 WASHERSPRING
