SA310

Suzuki FORSA · 4,895 parts · 169 categories
SA310 ×

← Back to categories

4,895 items

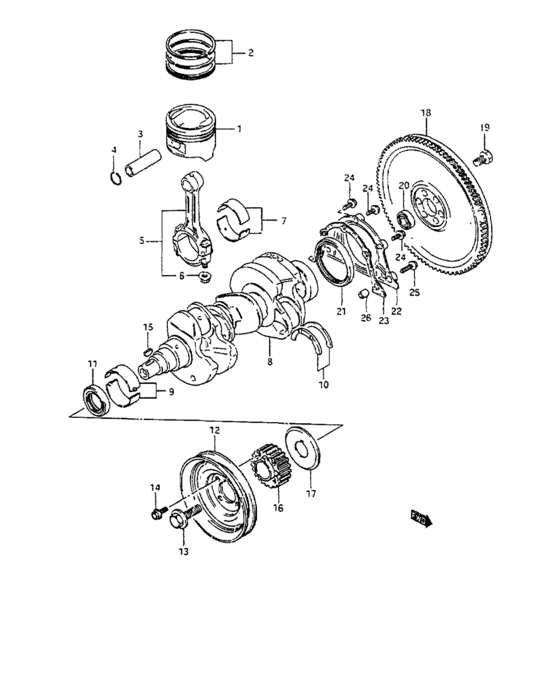

Piston and crankshaft (TURBO) 68
#OEMPart name
1 12111-82152-0A0 Piston - Std, mark 1
1 12100-82841-0A0 Piston set,std(mark1
1 12111-82152-0B0 Piston - Std, mark 2
1 12100-82841-0B0 New Genuine Part
1 12111-82152-025 Piston - Os:0.25
1 12100-82841-025 New Genuine Part
1 12111-82152-050 Piston - Os:0.5
1 12100-82841-050 New Genuine Part
2 12140-82161-000 Ring set, piston
2 12140-82X50-000 RING SET,PISTON - Ring set, piston
2 12140-82161-025 Ring set, piston
2 12140-82X50-025 RING SET,PISTON OS:0.25 - Ring set, piston (os:0.25)
2 12140-82161-050 Ring set, piston
2 12140-82X50-050 RING SET,PISTON OS:0.50 - Ring set, piston (os:0.50)
3 12151-82150-000 Pin, piston
3 12151-86501-000 PIN,PISTON
4 09381-19001-000 RING,SNAP - Snap ring
5 12160-82152-000 Rod assy, connecting
5 12160-82154-000 CONNROD ASSY
5 12160-82155-000 CONNROD ASSY
6 09159-08033-000 NUT
7 12100-82810-000 BEARING SET,CONNROD - Bearing set, big end
7 12100-82810-025 BEARING SET,CONNROD US:0.25
8 12221-82000-000 Crankshaft
8 12221-86000-000 CRANKSHAFT
9 12340-82000-0A0 BEARING SET,CRANKSHAFT STD (Green)
9 12340-82000-0B0 BEARING SET,CRANKSHAFT STD (Black)
9 12340-82000-0C0 BEARING SET,CRANKSHAFT STD (None)
9 12340-82000-0D0 BEARING SET,CRANKSHAFT STD (Yellow)
9 12340-82000-0E0 BEARING SET,CRANKSHAFT STD (Blue)
9 12300-82810-0AA BEARING SET,CRANKSHAFT US
9 12300-82810-0BA BEARING SET,CRANKSHAFT US
9 12300-82810-0CA BEARING SET,CRANKSHAFT US
9 12300-82810-0DA BEARING SET,CRANKSHAFT US
9 12300-82810-0EA BEARING SET,CRANKSHAFT US
10 12300-82820-000 Bearing set, crank thrust (STD)
10 12300-60840-000 BEARING SET,CRANK THRUST (STD)
10 12300-82820-012 Bearing set, crank thrust (OS:0.125)
10 12300-60840-012 BEARING SET,CRANK THRUST (OS:0.125)
11 09283-32026-000 Seal, Front Oil,32X47X6
11 09283-32042-000 SEAL,OIL(32X47X6)
12 12610-82000-000 Poulie vilebrequin
12 12611-82170-000 PULLEY,CRANKSHAFT
13 09103-12008-000 BOLT 12X30
13 12619-60B00-000 BOLT,CRANK PULLEY
14 01517-06203-000 Bolt
14 01550-0620B-000 Bolt - Bolt, inspection cap
14 01550-0620A-000 Bolt
15 08341-31059-000 KEY
16 12631-82000-000 PULLEY,CRANK TIMING BELT
17 12635-78400-000 Rondelle guide cour
17 12635-78401-000 GUIDE,TIMING BELT
18 12620-82600-000 Flywheel - Nt:100
18 12620-63B00-000 FLYWHEEL
19 09103-10068-000 Bolt
19 09100-10275-000 BOLT(10X18.5)
20 08133-62007-000 B1 10x39x9 bear
20 12623-60A00-000 BEARING,INPUT SHAFT - Bearing, input shaft
21 09283-68001-000 Arretoir arriere
21 09283-68002-000 SEAL,OIL(68X86X8)
22 11341-82000-000 Housing, oil seal
22 11341-82001-000 HOUSING,OIL SEAL
23 11349-82000-000 Joint
23 11349-60A01-000 GASKET,OIL SEAL HSG - Gasket, oil seal housing
25 01517-06253-000 ボルト
25 01550-0625A-000 Bolt
25 01550-0625B-000 Bolt - Bolt, head cover
26 04211-09109-000 PIN - Knock pin
