Search › Model › SA310
SA310

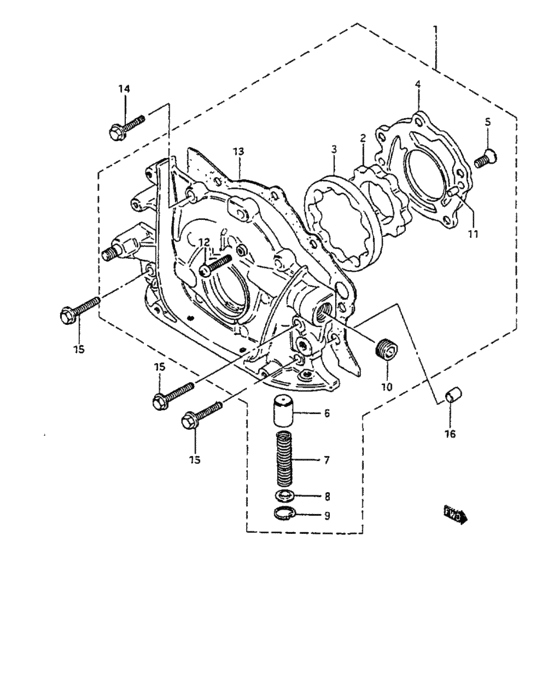

Oil pump (TURBO) 30
| # | OEM | Part name |
|---|---|---|
| 1 | 16100-82821-000 | Ensemble pompe a huile |
| 1 | 16100-82844-000 | PUMP SET,OIL |
| 1 | 16100-82822-000 | Pump assy, oil |
| 2 | 16131-82600-000 | Engrenage |
| 2 | 16130-82600-000 | ROTOR SET,OIL PUMP |
| 3 | 16132-82600-000 | Engrenage |
| 4 | 16161-82601-000 | Gear plate |
| 5 | 02122-06148-000 | Screw |
| 5 | 09126-06007-000 | SCREW(6X14) - Bolt |
| 6 | 16151-78100-000 | バルブ,リリーフ |
| 6 | 16150-78100-000 | VALVE SET,OIL PUMP RELIEF |
| 7 | 16152-78100-000 | スプリング,リリーフバルブ |
| 8 | 16153-78100-000 | RETAINERRELIEF VALV |
| 9 | 08331-41159-000 | New Genuine Part |
| 9 | 08331-4115A-000 | CIRCLIP |
| 10 | 16171-78100-000 | Bouchon |
| 10 | 09246-08002-000 | PLUG |
| 11 | 16173-78100-000 | PIN,OIL PUMP GEAR PLATE |
| 12 | 02112-06256-000 | Screw |
| 12 | 02112-0625B-000 | SCREW |
| 12 | 02112-0625A-000 | SCREW |
| 13 | 16119-82000-000 | Joint |
| 13 | 16119-82012-000 | GASKET,OIL PUMP |
| 14 | 01517-06253-000 | ボルト |
| 14 | 01550-0625A-000 | Bolt |
| 14 | 01550-0625B-000 | Bolt - Bolt, head cover |
| 15 | 01517-06353-000 | ボルト |
| 15 | 01550-0635B-000 | Bolt |
| 15 | 01550-0635A-000 | Bolt |
| 16 | 04211-09109-000 | PIN - Knock pin |
| OEM | Part name | Category |
|---|---|---|
| 01517-06253-000 | ボルト | Oil pump (TURBO) |
| 01517-06353-000 | ボルト | Oil pump (TURBO) |
| 01550-0625A-000 | Bolt | Oil pump (TURBO) |
| 01550-0625B-000 | Bolt - Bolt, head cover | Oil pump (TURBO) |
| 01550-0635A-000 | Bolt | Oil pump (TURBO) |
| 01550-0635B-000 | Bolt | Oil pump (TURBO) |
| 02112-06256-000 | Screw | Oil pump (TURBO) |
| 02112-0625A-000 | SCREW | Oil pump (TURBO) |
| 02112-0625B-000 | SCREW | Oil pump (TURBO) |
| 02122-06148-000 | Screw | Oil pump (TURBO) |
| 04211-09109-000 | PIN - Knock pin | Oil pump (TURBO) |
| 08331-41159-000 | New Genuine Part | Oil pump (TURBO) |
| 08331-4115A-000 | CIRCLIP | Oil pump (TURBO) |
| 09126-06007-000 | SCREW(6X14) - Bolt | Oil pump (TURBO) |
| 09246-08002-000 | PLUG | Oil pump (TURBO) |
| 16100-82821-000 | Ensemble pompe a huile | Oil pump (TURBO) |
| 16100-82822-000 | Pump assy, oil | Oil pump (TURBO) |
| 16100-82844-000 | PUMP SET,OIL | Oil pump (TURBO) |
| 16119-82000-000 | Joint | Oil pump (TURBO) |
| 16119-82012-000 | GASKET,OIL PUMP | Oil pump (TURBO) |
| 16130-82600-000 | ROTOR SET,OIL PUMP | Oil pump (TURBO) |
| 16131-82600-000 | Engrenage | Oil pump (TURBO) |
| 16132-82600-000 | Engrenage | Oil pump (TURBO) |
| 16150-78100-000 | VALVE SET,OIL PUMP RELIEF | Oil pump (TURBO) |
| 16151-78100-000 | バルブ,リリーフ | Oil pump (TURBO) |
| 16152-78100-000 | スプリング,リリーフバルブ | Oil pump (TURBO) |
| 16153-78100-000 | RETAINERRELIEF VALV | Oil pump (TURBO) |
| 16161-82601-000 | Gear plate | Oil pump (TURBO) |
| 16171-78100-000 | Bouchon | Oil pump (TURBO) |
| 16173-78100-000 | PIN,OIL PUMP GEAR PLATE | Oil pump (TURBO) |
