Search › Model › SA310

SA310

Suzuki FORSA · 4,895 parts · 169 categories

4,895 items

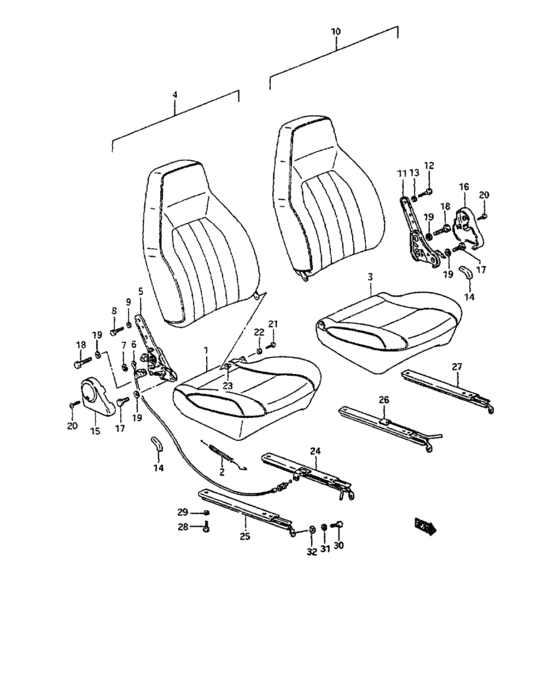

Front seat (3DR:GE, GA, VAN) 78

#	OEM	Part name
1	85101-86270-8TE	Cushion assy, seat rh - Blue
1	85101-86270-8TF	Cushion assy, seat rh - Gray
1	85101-86270-9VY	Cushion assy, seat rh - Gray
1	85101-86270-9VZ	Cushion assy, seat rh - Blue
1	85101-86220-2CA	Cushion assy, seat rh - Gray
1	85101-86220-2CB	Cushion assy, seat rh - Blue
2	85691-82300-000	Spring, walking tension
3	85102-86260-8TE	Cushion assy, seat lh - Blue
3	85102-86260-8TF	Cushion assy, seat lh - Gray
3	85102-86260-9VY	Cushion assy, seat lh - Gray
3	85102-86260-9VZ	Cushion assy, seat lh - Blue
3	85102-86220-2CA	Cushion assy, seat lh - Gray
3	85102-86220-2CB	Cushion assy, seat lh - Blue
4	85301-86270-8TE	Back assy, seat rh - Blue
4	85301-86270-9VY	Back assy, seat rh - Gray
4	85301-86270-8TF	Back assy, seat rh - Gray
4	85301-86270-9VZ	Back assy, seat rh - Blue
4	85301-86230-2CA	Back assy, seat rh - Gray
4	85301-86230-2CB	Back assy, seat rh - Blue
5	85210-86110-000	Reclining assy, rh
5	85210-86030-000	Reclining assy rh
6	87470-82020-000	Cable assy, fr walkin
7	08332-11056-000	E ring
7	08332-1105A-000	E RING
8	01107-08167-000	Bolt
8	01500-0816B-000	Bolt
9	08321-21088-000	Lock washer
9	08321-01087-000	WASHER,LOCK - Washer, lock
10	85302-86260-8TE	Back assy, seat lh - Blue
10	85302-86260-8TF	Back assy, seat lh - Gray
10	85302-86260-9VY	Back assy, seat lh - Gray
10	85302-86260-9VZ	Back assy, seat lh - Blue
10	85302-86220-2CA	Back assy, seat lh - Gray
10	85302-86220-2CB	Back assy, seat lh - Blue
11	85710-86000-000	RECLINING ASSY,FR SEAT,L
14	85211-82000-4NM	Knob, reclining front
14	85211-82000-T01	KNOB,RECL
14	85211-82000-4MM	Knob, reclining front
14	85211-84000-5PK	KNOB,RECLINING
15	85221-82040-4NM	Cover, reclining rh - Blue
15	85221-82040-281	Cover, reclining rh
15	85221-82040-4MM	Cover, reclining rh - Gray
15	85221-82001-4NM	Cover, reclining rh - Blue
15	85221-82001-5PK	COVER,RECLINING,R
15	85221-82001-4MM	Cover, reclining rh - Gray
16	85721-82040-4NM	Cover, reclining lh - Blue
16	85721-82040-281	Cover, reclining lh
16	85721-82040-4MM	Cover, reclining lh - Gray
16	85721-82001-4NM	Cover, reclining lh - Blue
16	85721-82001-5PK	COVER,RECLINING,L
16	85721-82001-4MM	Cover, reclining lh - Gray
17	01107-10168-000	Bolt
17	01500-10167-000	Bolt
18	01107-10408-000	Bolt
18	01500-10407-000	Bolt
19	08321-21107-000	Lock washer
19	08321-01107-000	WASHER,LOCK - Lock washer
20	03241-05125-000	Screw
20	03241-0512A-000	SCREW
21	02142-06125-000	Screw
21	02142-0612B-000	SCREW
21	02142-0612A-000	SCREW
22	09160-06039-000	Washer
22	09160-06109-000	WASHER(6.5X18X1.6)
23	85319-82000-000	BUSH,FR SEAT BACK FIXING
24	86610-82031-000	ADJUSTER,FR SEAT INSIDE,R
25	86630-82012-000	Adjuster, front outside
26	86810-82011-000	Adjuster, front inside
27	86830-82012-000	Adjuster, front outside
28	01107-08166-000	Bolt m8x1.25x16
29	08321-21086-000	Wsherlck8.2x15.2x1.6
29	08321-0108B-000	WASHER,LOCK
29	08321-0108A-000	WASHER,LOCK
30	01107-08165-000	Bolt 6x16
31	08321-21084-000	Lock washer
32	08322-11084-000	Washer
32	08322-0108B-000	WASHER
32	08322-0108A-000	WASHER

OEM	Part name	Category
01107-08165-000	Bolt 6x16	Front seat (3DR:GE, GA, VAN)
01107-08166-000	Bolt m8x1.25x16	Front seat (3DR:GE, GA, VAN)
01107-08167-000	Bolt	Front seat (3DR:GE, GA, VAN)
01107-10168-000	Bolt	Front seat (3DR:GE, GA, VAN)
01107-10408-000	Bolt	Front seat (3DR:GE, GA, VAN)
01500-0816B-000	Bolt	Front seat (3DR:GE, GA, VAN)
01500-10167-000	Bolt	Front seat (3DR:GE, GA, VAN)
01500-10407-000	Bolt	Front seat (3DR:GE, GA, VAN)
02142-06125-000	Screw	Front seat (3DR:GE, GA, VAN)
02142-0612A-000	SCREW	Front seat (3DR:GE, GA, VAN)
02142-0612B-000	SCREW	Front seat (3DR:GE, GA, VAN)
03241-05125-000	Screw	Front seat (3DR:GE, GA, VAN)
03241-0512A-000	SCREW	Front seat (3DR:GE, GA, VAN)
08321-01087-000	WASHER,LOCK - Washer, lock	Front seat (3DR:GE, GA, VAN)
08321-0108A-000	WASHER,LOCK	Front seat (3DR:GE, GA, VAN)
08321-0108B-000	WASHER,LOCK	Front seat (3DR:GE, GA, VAN)
08321-01107-000	WASHER,LOCK - Lock washer	Front seat (3DR:GE, GA, VAN)
08321-21084-000	Lock washer	Front seat (3DR:GE, GA, VAN)
08321-21086-000	Wsherlck8.2x15.2x1.6	Front seat (3DR:GE, GA, VAN)
08321-21088-000	Lock washer	Front seat (3DR:GE, GA, VAN)
08321-21107-000	Lock washer	Front seat (3DR:GE, GA, VAN)
08322-0108A-000	WASHER	Front seat (3DR:GE, GA, VAN)
08322-0108B-000	WASHER	Front seat (3DR:GE, GA, VAN)
08322-11084-000	Washer	Front seat (3DR:GE, GA, VAN)
08332-11056-000	E ring	Front seat (3DR:GE, GA, VAN)
08332-1105A-000	E RING	Front seat (3DR:GE, GA, VAN)
09160-06039-000	Washer	Front seat (3DR:GE, GA, VAN)
09160-06109-000	WASHER(6.5X18X1.6)	Front seat (3DR:GE, GA, VAN)
85101-86220-2CA	Cushion assy, seat rh - Gray	Front seat (3DR:GE, GA, VAN)
85101-86220-2CB	Cushion assy, seat rh - Blue	Front seat (3DR:GE, GA, VAN)
85101-86270-8TE	Cushion assy, seat rh - Blue	Front seat (3DR:GE, GA, VAN)
85101-86270-8TF	Cushion assy, seat rh - Gray	Front seat (3DR:GE, GA, VAN)
85101-86270-9VY	Cushion assy, seat rh - Gray	Front seat (3DR:GE, GA, VAN)
85101-86270-9VZ	Cushion assy, seat rh - Blue	Front seat (3DR:GE, GA, VAN)
85102-86220-2CA	Cushion assy, seat lh - Gray	Front seat (3DR:GE, GA, VAN)
85102-86220-2CB	Cushion assy, seat lh - Blue	Front seat (3DR:GE, GA, VAN)
85102-86260-8TE	Cushion assy, seat lh - Blue	Front seat (3DR:GE, GA, VAN)
85102-86260-8TF	Cushion assy, seat lh - Gray	Front seat (3DR:GE, GA, VAN)
85102-86260-9VY	Cushion assy, seat lh - Gray	Front seat (3DR:GE, GA, VAN)
85102-86260-9VZ	Cushion assy, seat lh - Blue	Front seat (3DR:GE, GA, VAN)
85210-86030-000	Reclining assy rh	Front seat (3DR:GE, GA, VAN)
85210-86110-000	Reclining assy, rh	Front seat (3DR:GE, GA, VAN)
85211-82000-4MM	Knob, reclining front	Front seat (3DR:GE, GA, VAN)
85211-82000-4NM	Knob, reclining front	Front seat (3DR:GE, GA, VAN)
85211-82000-T01	KNOB,RECL	Front seat (3DR:GE, GA, VAN)
85211-84000-5PK	KNOB,RECLINING	Front seat (3DR:GE, GA, VAN)
85221-82001-4MM	Cover, reclining rh - Gray	Front seat (3DR:GE, GA, VAN)
85221-82001-4NM	Cover, reclining rh - Blue	Front seat (3DR:GE, GA, VAN)
85221-82001-5PK	COVER,RECLINING,R	Front seat (3DR:GE, GA, VAN)
85221-82040-281	Cover, reclining rh	Front seat (3DR:GE, GA, VAN)
85221-82040-4MM	Cover, reclining rh - Gray	Front seat (3DR:GE, GA, VAN)
85221-82040-4NM	Cover, reclining rh - Blue	Front seat (3DR:GE, GA, VAN)
85301-86230-2CA	Back assy, seat rh - Gray	Front seat (3DR:GE, GA, VAN)
85301-86230-2CB	Back assy, seat rh - Blue	Front seat (3DR:GE, GA, VAN)
85301-86270-8TE	Back assy, seat rh - Blue	Front seat (3DR:GE, GA, VAN)
85301-86270-8TF	Back assy, seat rh - Gray	Front seat (3DR:GE, GA, VAN)
85301-86270-9VY	Back assy, seat rh - Gray	Front seat (3DR:GE, GA, VAN)
85301-86270-9VZ	Back assy, seat rh - Blue	Front seat (3DR:GE, GA, VAN)
85302-86220-2CA	Back assy, seat lh - Gray	Front seat (3DR:GE, GA, VAN)
85302-86220-2CB	Back assy, seat lh - Blue	Front seat (3DR:GE, GA, VAN)
85302-86260-8TE	Back assy, seat lh - Blue	Front seat (3DR:GE, GA, VAN)
85302-86260-8TF	Back assy, seat lh - Gray	Front seat (3DR:GE, GA, VAN)
85302-86260-9VY	Back assy, seat lh - Gray	Front seat (3DR:GE, GA, VAN)
85302-86260-9VZ	Back assy, seat lh - Blue	Front seat (3DR:GE, GA, VAN)
85319-82000-000	BUSH,FR SEAT BACK FIXING	Front seat (3DR:GE, GA, VAN)
85691-82300-000	Spring, walking tension	Front seat (3DR:GE, GA, VAN)
85710-86000-000	RECLINING ASSY,FR SEAT,L	Front seat (3DR:GE, GA, VAN)
85721-82001-4MM	Cover, reclining lh - Gray	Front seat (3DR:GE, GA, VAN)
85721-82001-4NM	Cover, reclining lh - Blue	Front seat (3DR:GE, GA, VAN)
85721-82001-5PK	COVER,RECLINING,L	Front seat (3DR:GE, GA, VAN)
85721-82040-281	Cover, reclining lh	Front seat (3DR:GE, GA, VAN)
85721-82040-4MM	Cover, reclining lh - Gray	Front seat (3DR:GE, GA, VAN)
85721-82040-4NM	Cover, reclining lh - Blue	Front seat (3DR:GE, GA, VAN)
86610-82031-000	ADJUSTER,FR SEAT INSIDE,R	Front seat (3DR:GE, GA, VAN)
86630-82012-000	Adjuster, front outside	Front seat (3DR:GE, GA, VAN)
86810-82011-000	Adjuster, front inside	Front seat (3DR:GE, GA, VAN)
86830-82012-000	Adjuster, front outside	Front seat (3DR:GE, GA, VAN)
87470-82020-000	Cable assy, fr walkin	Front seat (3DR:GE, GA, VAN)
