Search › Model › SA310
SA310

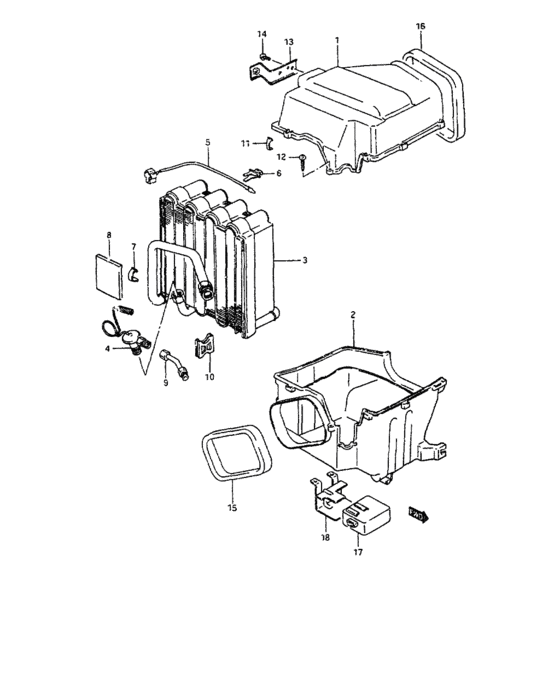

Evaporator (EVAPORATOR) 26
| # | OEM | Part name |
|---|---|---|
| 0 | 95400-86011-000 | Unit, evaporator |
| 1 | 95421-86010-000 | Case, evaporator upper |
| 2 | 95422-86010-000 | Case, evaporator lower |
| 3 | 95410-86010-000 | CORE,EVAPORATOR |
| 4 | 95350-82000-000 | Valve, expahsion |
| 4 | 95431-60B10-000 | VALVE,EXPANSION |
| 5 | 95461-78000-000 | Thermostat |
| 5 | 95461-63B70-000 | THERMISTOR |
| 6 | 95462-84300-000 | Clamp, thermistar |
| 6 | 95452-60F20-000 | CLAMP,THERMISTOR |
| 6 | 95452-70B21-000 | CLAMP,THERMISTER |
| 7 | 95492-78360-000 | HOLDER |
| 7 | 95491-60B10-000 | CLAMP,TEMPERATURE TUBE |
| 8 | 95623-80000-000 | Packing |
| 8 | 36930-82010-000 | COVER,HARNESS - Cover, roof wire |
| 9 | 95734-86010-000 | Pipe, valve inlet |
| 10 | 95423-86000-000 | Plate, valve inlet |
| 11 | 74133-82000-000 | CLAMP,CASE |
| 12 | 03511-05166-000 | Screw |
| 12 | 03511-0516A-000 | SCREW |
| 13 | 95961-86010-000 | Bracket, evaporator upper |
| 14 | 03511-05146-000 | Screw |
| 15 | 95461-86000-000 | Gasket, air inlet |
| 16 | 95462-86000-000 | Gasket, air outlet |
| 17 | 95576-86000-000 | Delay, amplifier |
| 18 | 95962-86010-000 | Bracket, delay |
| OEM | Part name | Category |
|---|---|---|
| 03511-05146-000 | Screw | Evaporator (EVAPORATOR) |
| 03511-05166-000 | Screw | Evaporator (EVAPORATOR) |
| 03511-0516A-000 | SCREW | Evaporator (EVAPORATOR) |
| 36930-82010-000 | COVER,HARNESS - Cover, roof wire | Evaporator (EVAPORATOR) |
| 74133-82000-000 | CLAMP,CASE | Evaporator (EVAPORATOR) |
| 95350-82000-000 | Valve, expahsion | Evaporator (EVAPORATOR) |
| 95400-86011-000 | Unit, evaporator | Evaporator (EVAPORATOR) |
| 95410-86010-000 | CORE,EVAPORATOR | Evaporator (EVAPORATOR) |
| 95421-86010-000 | Case, evaporator upper | Evaporator (EVAPORATOR) |
| 95422-86010-000 | Case, evaporator lower | Evaporator (EVAPORATOR) |
| 95423-86000-000 | Plate, valve inlet | Evaporator (EVAPORATOR) |
| 95431-60B10-000 | VALVE,EXPANSION | Evaporator (EVAPORATOR) |
| 95452-60F20-000 | CLAMP,THERMISTOR | Evaporator (EVAPORATOR) |
| 95452-70B21-000 | CLAMP,THERMISTER | Evaporator (EVAPORATOR) |
| 95461-63B70-000 | THERMISTOR | Evaporator (EVAPORATOR) |
| 95461-78000-000 | Thermostat | Evaporator (EVAPORATOR) |
| 95461-86000-000 | Gasket, air inlet | Evaporator (EVAPORATOR) |
| 95462-84300-000 | Clamp, thermistar | Evaporator (EVAPORATOR) |
| 95462-86000-000 | Gasket, air outlet | Evaporator (EVAPORATOR) |
| 95491-60B10-000 | CLAMP,TEMPERATURE TUBE | Evaporator (EVAPORATOR) |
| 95492-78360-000 | HOLDER | Evaporator (EVAPORATOR) |
| 95576-86000-000 | Delay, amplifier | Evaporator (EVAPORATOR) |
| 95623-80000-000 | Packing | Evaporator (EVAPORATOR) |
| 95734-86010-000 | Pipe, valve inlet | Evaporator (EVAPORATOR) |
| 95961-86010-000 | Bracket, evaporator upper | Evaporator (EVAPORATOR) |
| 95962-86010-000 | Bracket, delay | Evaporator (EVAPORATOR) |
