SA310

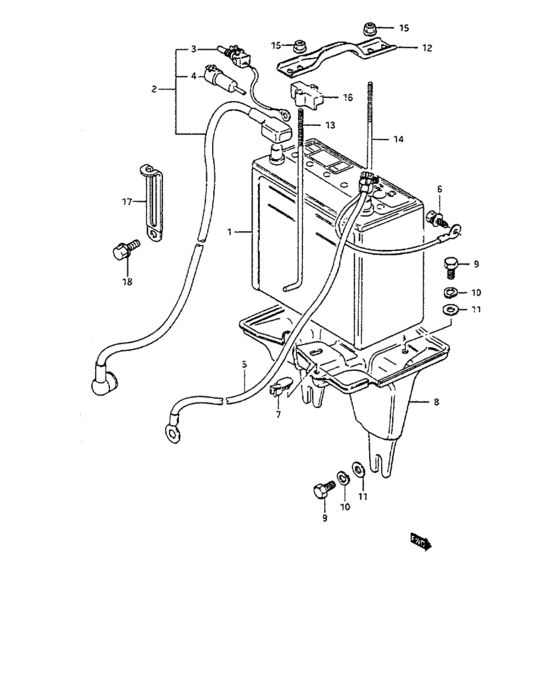

Battery (BATTERY) 30
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-82320-000 | Battery assy - 12v, 38ah/5hr |
| 1 | 33610-60A11-000 | バッテリ,55B24R(S)ーMF,12V36AH,YB |
| 2 | 33800-86000-000 | Cable, starting motor |
| 3 | 36740-82011-000 | Link, fusible |
| 4 | 36740-82200-000 | LINK ASSY,FUSIBLE(RED) |
| 5 | 33850-82010-000 | Cable, battery ground |
| 5 | 33850-61B00-000 | Cable comp,btry gnd |
| 6 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 6 | 09115-06005-000 | BOLT(6X16) |
| 7 | 09403-07314-000 | CLAMP |
| 8 | 72520-82001-000 | Bracket assy,battery |
| 9 | 01107-08203-000 | Bolt |
| 9 | 01500-0820A-000 | Bolt |
| 10 | 08321-31083-000 | New Genuine Part |
| 10 | 08321-0108A-000 | WASHER,LOCK |
| 10 | 08321-0108B-000 | WASHER,LOCK |
| 11 | 09160-08025-000 | Washer |
| 11 | 09160-08501-000 | WASHER(8.5X24X2.3) |
| 12 | 72511-82010-000 | BAND,BATTERY |
| 13 | 72512-82010-000 | Bolt, battery |
| 13 | 72512-82011-000 | BOLT,BATTERY |
| 14 | 72513-82010-000 | Bolt, battery - L:233 |
| 14 | 72513-60B01-000 | Bolt,battery |
| 15 | 08361-15063-000 | Nut |
| 15 | 08361-1506A-000 | NUT |
| 16 | 72514-82000-000 | PAD,BATTERY BAND |
| 17 | 09404-08405-000 | Clamp, drain tube |
| 17 | 09404-08420-000 | CLAMP(L:120 T:1.0) |
| 18 | 01534-08123-000 | ボルト |
| 18 | 01550-0812B-000 | Bolt - Plug, drain |
| OEM | Part name | Category |
|---|---|---|
| 01107-08203-000 | Bolt | Battery (BATTERY) |
| 01500-0820A-000 | Bolt | Battery (BATTERY) |
| 01534-08123-000 | ボルト | Battery (BATTERY) |
| 01550-0812B-000 | Bolt - Plug, drain | Battery (BATTERY) |
| 08321-0108A-000 | WASHER,LOCK | Battery (BATTERY) |
| 08321-0108B-000 | WASHER,LOCK | Battery (BATTERY) |
| 08321-31083-000 | New Genuine Part | Battery (BATTERY) |
| 08361-15063-000 | Nut | Battery (BATTERY) |
| 08361-1506A-000 | NUT | Battery (BATTERY) |
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | Battery (BATTERY) |
| 09115-06005-000 | BOLT(6X16) | Battery (BATTERY) |
| 09160-08025-000 | Washer | Battery (BATTERY) |
| 09160-08501-000 | WASHER(8.5X24X2.3) | Battery (BATTERY) |
| 09403-07314-000 | CLAMP | Battery (BATTERY) |
| 09404-08405-000 | Clamp, drain tube | Battery (BATTERY) |
| 09404-08420-000 | CLAMP(L:120 T:1.0) | Battery (BATTERY) |
| 33610-60A11-000 | バッテリ,55B24R(S)ーMF,12V36AH,YB | Battery (BATTERY) |
| 33610-82320-000 | Battery assy - 12v, 38ah/5hr | Battery (BATTERY) |
| 33800-86000-000 | Cable, starting motor | Battery (BATTERY) |
| 33850-61B00-000 | Cable comp,btry gnd | Battery (BATTERY) |
| 33850-82010-000 | Cable, battery ground | Battery (BATTERY) |
| 36740-82011-000 | Link, fusible | Battery (BATTERY) |
| 36740-82200-000 | LINK ASSY,FUSIBLE(RED) | Battery (BATTERY) |
| 72511-82010-000 | BAND,BATTERY | Battery (BATTERY) |
| 72512-82010-000 | Bolt, battery | Battery (BATTERY) |
| 72512-82011-000 | BOLT,BATTERY | Battery (BATTERY) |
| 72513-60B01-000 | Bolt,battery | Battery (BATTERY) |
| 72513-82010-000 | Bolt, battery - L:233 | Battery (BATTERY) |
| 72514-82000-000 | PAD,BATTERY BAND | Battery (BATTERY) |
| 72520-82001-000 | Bracket assy,battery | Battery (BATTERY) |
