Search › Model › SA310
SA310

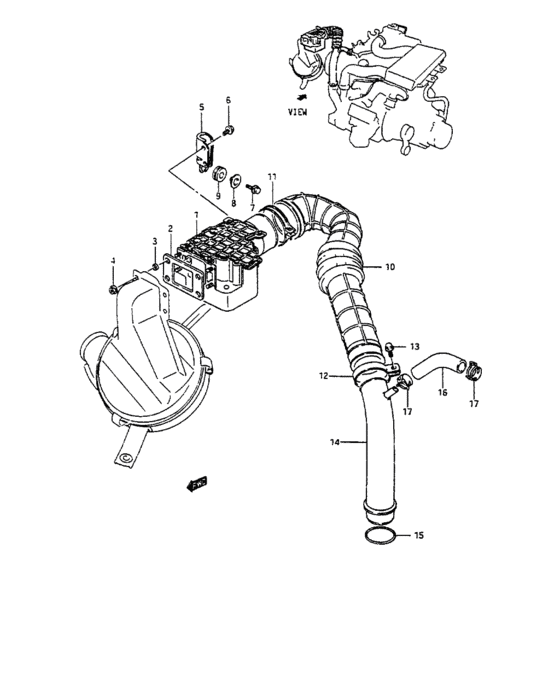

Air flow meter (TURBO) 24
| # | OEM | Part name |
|---|---|---|
| 1 | 13800-82400-000 | Meter, air flow |
| 2 | 13805-82400-000 | Gasket, air flow meter |
| 3 | 09180-06176-000 | SPACER(6.5X10X2.5) |
| 4 | 08316-16063-000 | Nut |
| 4 | 08316-1006B-000 | NUT |
| 5 | 13886-82401-000 | Bracket, air flow meter |
| 6 | 01517-06103-000 | BOLT 6X10 |
| 6 | 01550-0610A-000 | Bolt |
| 6 | 01550-0610B-000 | Bolt |
| 7 | 01517-06163-000 | Bolt |
| 7 | 01550-0616B-000 | Bolt |
| 7 | 01550-0616A-000 | Bolt |
| 8 | 09169-08041-000 | Spacer |
| 9 | 09320-09021-000 | Cushion, leg guard |
| 9 | 09320-09502-000 | CUSHION - Cushion, leg guard |
| 10 | 13881-82401-000 | Hose, air flow outlet |
| 11 | 09402-68202-000 | Сlamp |
| 11 | 09402-68208-000 | CLAMP |
| 14 | 13890-82400-000 | Pipe, air flow outlet |
| 15 | 09280-42001-000 | O ring |
| 16 | 11191-82400-000 | Hose, breather |
| 16 | 11191-79200-000 | HOSE,BREATHER |
| 17 | 09401-18402-000 | CLAMP |
| 17 | 09401-18404-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 01517-06103-000 | BOLT 6X10 | Air flow meter (TURBO) |
| 01517-06163-000 | Bolt | Air flow meter (TURBO) |
| 01550-0610A-000 | Bolt | Air flow meter (TURBO) |
| 01550-0610B-000 | Bolt | Air flow meter (TURBO) |
| 01550-0616A-000 | Bolt | Air flow meter (TURBO) |
| 01550-0616B-000 | Bolt | Air flow meter (TURBO) |
| 08316-1006B-000 | NUT | Air flow meter (TURBO) |
| 08316-16063-000 | Nut | Air flow meter (TURBO) |
| 09169-08041-000 | Spacer | Air flow meter (TURBO) |
| 09180-06176-000 | SPACER(6.5X10X2.5) | Air flow meter (TURBO) |
| 09280-42001-000 | O ring | Air flow meter (TURBO) |
| 09320-09021-000 | Cushion, leg guard | Air flow meter (TURBO) |
| 09320-09502-000 | CUSHION - Cushion, leg guard | Air flow meter (TURBO) |
| 09401-18402-000 | CLAMP | Air flow meter (TURBO) |
| 09401-18404-000 | CLIP | Air flow meter (TURBO) |
| 09402-68202-000 | Сlamp | Air flow meter (TURBO) |
| 09402-68208-000 | CLAMP | Air flow meter (TURBO) |
| 11191-79200-000 | HOSE,BREATHER | Air flow meter (TURBO) |
| 11191-82400-000 | Hose, breather | Air flow meter (TURBO) |
| 13800-82400-000 | Meter, air flow | Air flow meter (TURBO) |
| 13805-82400-000 | Gasket, air flow meter | Air flow meter (TURBO) |
| 13881-82401-000 | Hose, air flow outlet | Air flow meter (TURBO) |
| 13886-82401-000 | Bracket, air flow meter | Air flow meter (TURBO) |
| 13890-82400-000 | Pipe, air flow outlet | Air flow meter (TURBO) |
