Search › Model › SA1
SA1

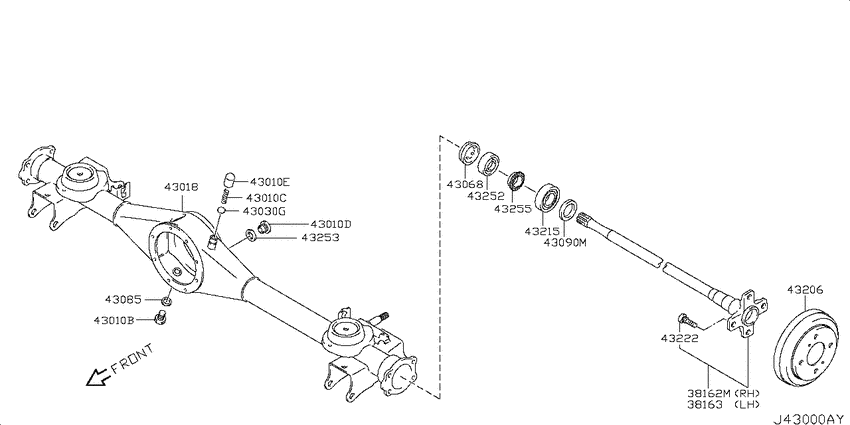

Rear axle (2006-02-01 ~ ; 4WD.K6A +4WD.K6AT) 11
| # | OEM | Part name |
|---|---|---|
| 38162 | 39600-4A0A0 | Shaft Assy-Rear Axle, Rh |
| 43010 | 77700-4A0A3 | Plug-Drain |
| 43010 | 38192-4A0A0 | Breather-Rear Axle Case |
| 43010 | 06211-4A0A1 | Plug-Filler |
| 43010 | 41129-4A0A2 | Cap-Breather |
| 43018 | 43018-4A00A | Housing Assy-Rear Axle |
| 43018 | 43018-4A0A3 | Housing Assy-Rear Axle |
| 43030 | 17368-4A0A0 | Plug |
| 43085 | 15193-4A0A2 | Seal-O Ring |
| 43252 | 43252-4A0A1 | Seal-Oil, Rear Axle Shaft |
| 43253 | 15193-4A0A6 | Seal-O Ring |
| OEM | Part name | Category |
|---|---|---|
| 06211-4A0A1 | Plug-Filler | Rear axle (2006-02-01 ~ ; 4WD.K6A +4WD.K6AT) |
| 15193-4A0A2 | Seal-O Ring | Rear axle (2006-02-01 ~ ; 4WD.K6A +4WD.K6AT) |
| 15193-4A0A6 | Seal-O Ring | Rear axle (2006-02-01 ~ ; 4WD.K6A +4WD.K6AT) |
| 17368-4A0A0 | Plug | Rear axle (2006-02-01 ~ ; 4WD.K6A +4WD.K6AT) |
| 38192-4A0A0 | Breather-Rear Axle Case | Rear axle (2006-02-01 ~ ; 4WD.K6A +4WD.K6AT) |
| 39600-4A0A0 | Shaft Assy-Rear Axle, Rh | Rear axle (2006-02-01 ~ ; 4WD.K6A +4WD.K6AT) |
| 41129-4A0A2 | Cap-Breather | Rear axle (2006-02-01 ~ ; 4WD.K6A +4WD.K6AT) |
| 43018-4A00A | Housing Assy-Rear Axle | Rear axle (2006-02-01 ~ ; 4WD.K6A +4WD.K6AT) |
| 43018-4A0A3 | Housing Assy-Rear Axle | Rear axle (2006-02-01 ~ ; 4WD.K6A +4WD.K6AT) |
| 43252-4A0A1 | Seal-Oil, Rear Axle Shaft | Rear axle (2006-02-01 ~ ; 4WD.K6A +4WD.K6AT) |
| 77700-4A0A3 | Plug-Drain | Rear axle (2006-02-01 ~ ; 4WD.K6A +4WD.K6AT) |
