Search › Model › SA1
SA1

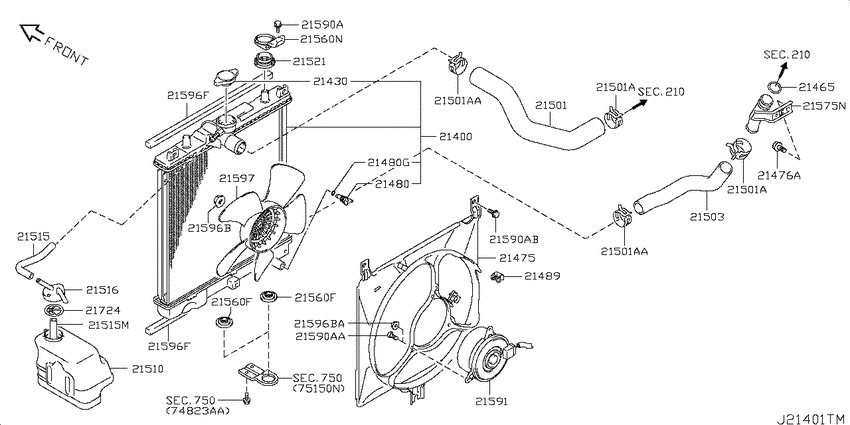

Radiator, shroud & fitting (2006-02-01 ~ ; ﾌｧﾝ､ｸｰﾘﾝｸﾞ; K6A) 6
| # | OEM | Part name |
|---|---|---|
| 21400 | 21400-4A00B | ラジエ-タ- アツセンブリ- |
| 21465 | 21465-4A00A | シール,o リング |
| 21476 | 16122-4A00C | Bolt |
| 21590 | 21591-4A00A | Bolt |
| 21591 | 21598-4A00B | モ-タ- アツセンブリ-,フアン |
| 21596 | 21591-4A0A5 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 16122-4A00C | Bolt | Radiator, shroud & fitting (2006-02-01 ~ ; ﾌｧﾝ､ｸｰﾘﾝｸﾞ; K6A) |
| 21400-4A00B | ラジエ-タ- アツセンブリ- | Radiator, shroud & fitting (2006-02-01 ~ ; ﾌｧﾝ､ｸｰﾘﾝｸﾞ; K6A) |
| 21465-4A00A | シール,o リング | Radiator, shroud & fitting (2006-02-01 ~ ; ﾌｧﾝ､ｸｰﾘﾝｸﾞ; K6A) |
| 21591-4A00A | Bolt | Radiator, shroud & fitting (2006-02-01 ~ ; ﾌｧﾝ､ｸｰﾘﾝｸﾞ; K6A) |
| 21591-4A0A5 | Nut | Radiator, shroud & fitting (2006-02-01 ~ ; ﾌｧﾝ､ｸｰﾘﾝｸﾞ; K6A) |
| 21598-4A00B | モ-タ- アツセンブリ-,フアン | Radiator, shroud & fitting (2006-02-01 ~ ; ﾌｧﾝ､ｸｰﾘﾝｸﾞ; K6A) |
