SA1

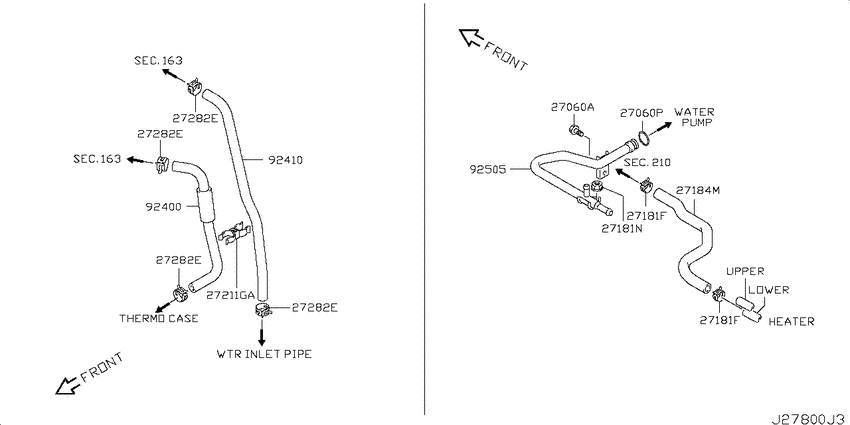

Heater piping (2006-02-01 ~ ; 4V; W.K6A) 6
| # | OEM | Part name |
|---|---|---|
| 27060 | 16122-4A00C | Bolt |
| 27181 | 01225-4A00B | Nut-Hex |
| 27211 | 24210-4A0B2 | Clamp |
| 27282 | 16439-4A0A9 | Clamp-Hose |
| 92400 | 92400-4A00A | ホ-ス,ヒ-タ- インレツト |
| 92410 | 92410-4A00A | ホ-ス,ヒ-タ- アウトレツト |
| OEM | Part name | Category |
|---|---|---|
| 01225-4A00B | Nut-Hex | Heater piping (2006-02-01 ~ ; 4V; W.K6A) |
| 16122-4A00C | Bolt | Heater piping (2006-02-01 ~ ; 4V; W.K6A) |
| 16439-4A0A9 | Clamp-Hose | Heater piping (2006-02-01 ~ ; 4V; W.K6A) |
| 24210-4A0B2 | Clamp | Heater piping (2006-02-01 ~ ; 4V; W.K6A) |
| 92400-4A00A | ホ-ス,ヒ-タ- インレツト | Heater piping (2006-02-01 ~ ; 4V; W.K6A) |
| 92410-4A00A | ホ-ス,ヒ-タ- アウトレツト | Heater piping (2006-02-01 ~ ; 4V; W.K6A) |
