SA1

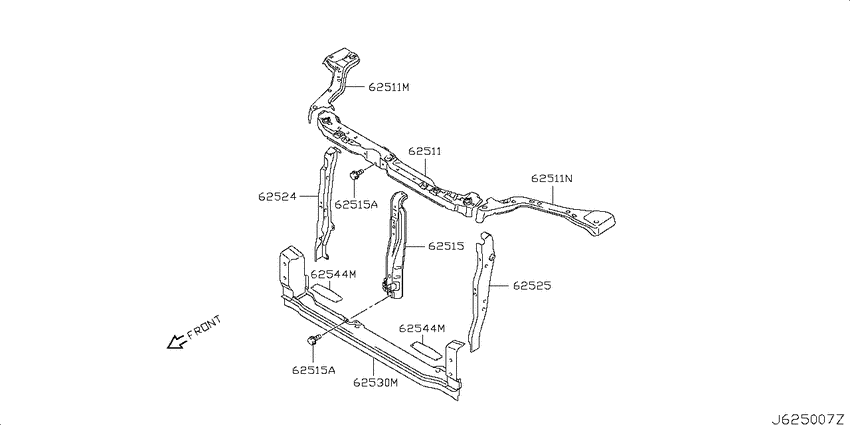

Front apron & radiator core support (2006-02-01 ~ ; W) 9
| # | OEM | Part name |
|---|---|---|
| 62511 | 62501-4A00A | Support-Radiator Core, Upper |
| 62511 | 62519-4A00A | Support-Radiator Core Upper, Rh |
| 62511 | 62518-4A00A | Support-Radiator Core Upper, Lh |
| 62515 | 62522-4A00A | Stay-Hood Lock |
| 62515 | 01461-4A0E5 | Bolt |
| 62524 | 62524-4A00A | Reinforce-Radiator Core Side, Rh |
| 62530 | 62530-4A00A | Support-Radiator Core, Lower |
| 62530 | 62530-4A00B | Support-Radiator Core, Lower |
| 62530 | 62530-4A00C | Support-Radiator Core, Lower |
| OEM | Part name | Category |
|---|---|---|
| 01461-4A0E5 | Bolt | Front apron & radiator core support (2006-02-01 ~ ; W) |
| 62501-4A00A | Support-Radiator Core, Upper | Front apron & radiator core support (2006-02-01 ~ ; W) |
| 62518-4A00A | Support-Radiator Core Upper, Lh | Front apron & radiator core support (2006-02-01 ~ ; W) |
| 62519-4A00A | Support-Radiator Core Upper, Rh | Front apron & radiator core support (2006-02-01 ~ ; W) |
| 62522-4A00A | Stay-Hood Lock | Front apron & radiator core support (2006-02-01 ~ ; W) |
| 62524-4A00A | Reinforce-Radiator Core Side, Rh | Front apron & radiator core support (2006-02-01 ~ ; W) |
| 62530-4A00A | Support-Radiator Core, Lower | Front apron & radiator core support (2006-02-01 ~ ; W) |
| 62530-4A00B | Support-Radiator Core, Lower | Front apron & radiator core support (2006-02-01 ~ ; W) |
| 62530-4A00C | Support-Radiator Core, Lower | Front apron & radiator core support (2006-02-01 ~ ; W) |
