Search › Model › SA1
SA1

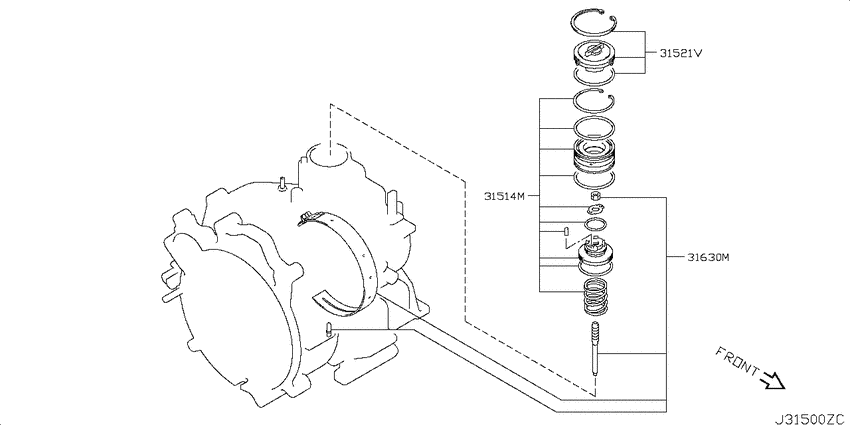

Clutch & band servo (2006-02-01 ~ ; サーボパーツ; 4AT) 5
| # | OEM | Part name |
|---|---|---|
| 31514 | 31615-4A0A0 | Piston Assy-Clutch |
| 31514 | 31615-4A0A1 | Piston Assy-Clutch |
| 31521 | 31611-4A0A0 | Retaner Assy-Spring |
| 31630 | 31630-4A00A | Band Assy-Brake |
| 31630 | 32614-4A0A0 | Band Assy-Brake |
| OEM | Part name | Category |
|---|---|---|
| 31611-4A0A0 | Retaner Assy-Spring | Clutch & band servo (2006-02-01 ~ ; サーボパーツ; 4AT) |
| 31615-4A0A0 | Piston Assy-Clutch | Clutch & band servo (2006-02-01 ~ ; サーボパーツ; 4AT) |
| 31615-4A0A1 | Piston Assy-Clutch | Clutch & band servo (2006-02-01 ~ ; サーボパーツ; 4AT) |
| 31630-4A00A | Band Assy-Brake | Clutch & band servo (2006-02-01 ~ ; サーボパーツ; 4AT) |
| 32614-4A0A0 | Band Assy-Brake | Clutch & band servo (2006-02-01 ~ ; サーボパーツ; 4AT) |
