SA0

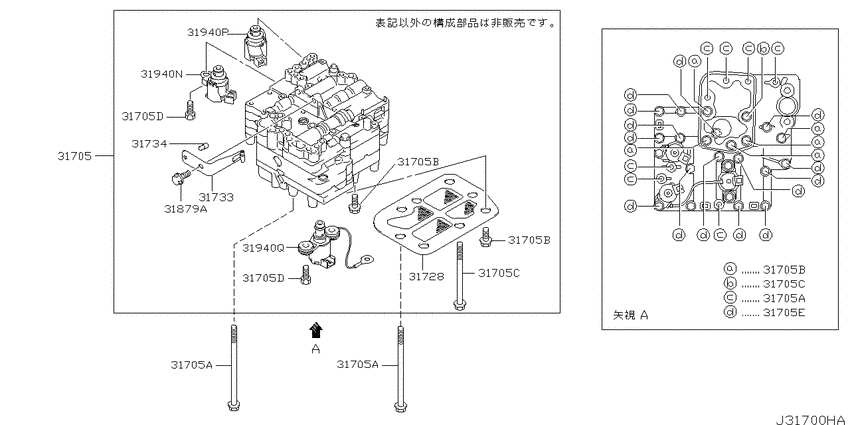

Control valve (atm) (2004-02-01 ~ ; AT.R4) 12
| # | OEM | Part name |
|---|---|---|
| 31705 | 31705-4A0A3 | Valve Assy-Control |
| 31705 | 31705-4A0A4 | Valve Assy-Control |
| 31705 | 31726-4A0A0 | Bolt |
| 31705 | 01121-4A0A7 | Bolt |
| 31705 | 31716-4A0A1 | Bolt |
| 31705 | 01121-4A0A0 | Bolt |
| 31705 | 01125-4A0G1 | Bolt |
| 31728 | 31728-4A0A0 | Strainer Assy-Oil |
| 31733 | 33188-4A0A0 | Spring-Detent Manual |
| 31734 | 34124-4A0A0 | Pin-Detent Spring |
| 31940 | 31941-4A0A1 | Solenoid Assy-3Rd & 4Th |
| 31940 | 31941-4A0A0 | Solenoid Assy-Pilot |
| OEM | Part name | Category |
|---|---|---|
| 01121-4A0A0 | Bolt | Control valve (atm) (2004-02-01 ~ ; AT.R4) |
| 01121-4A0A7 | Bolt | Control valve (atm) (2004-02-01 ~ ; AT.R4) |
| 01125-4A0G1 | Bolt | Control valve (atm) (2004-02-01 ~ ; AT.R4) |
| 31705-4A0A3 | Valve Assy-Control | Control valve (atm) (2004-02-01 ~ ; AT.R4) |
| 31705-4A0A4 | Valve Assy-Control | Control valve (atm) (2004-02-01 ~ ; AT.R4) |
| 31716-4A0A1 | Bolt | Control valve (atm) (2004-02-01 ~ ; AT.R4) |
| 31726-4A0A0 | Bolt | Control valve (atm) (2004-02-01 ~ ; AT.R4) |
| 31728-4A0A0 | Strainer Assy-Oil | Control valve (atm) (2004-02-01 ~ ; AT.R4) |
| 31941-4A0A0 | Solenoid Assy-Pilot | Control valve (atm) (2004-02-01 ~ ; AT.R4) |
| 31941-4A0A1 | Solenoid Assy-3Rd & 4Th | Control valve (atm) (2004-02-01 ~ ; AT.R4) |
| 33188-4A0A0 | Spring-Detent Manual | Control valve (atm) (2004-02-01 ~ ; AT.R4) |
| 34124-4A0A0 | Pin-Detent Spring | Control valve (atm) (2004-02-01 ~ ; AT.R4) |
