Search › Model › S5A

S5A

Honda CIVIC · 2001 · 1,803 parts · 122 categories
S5A ×

← Back to categories

1,803 items

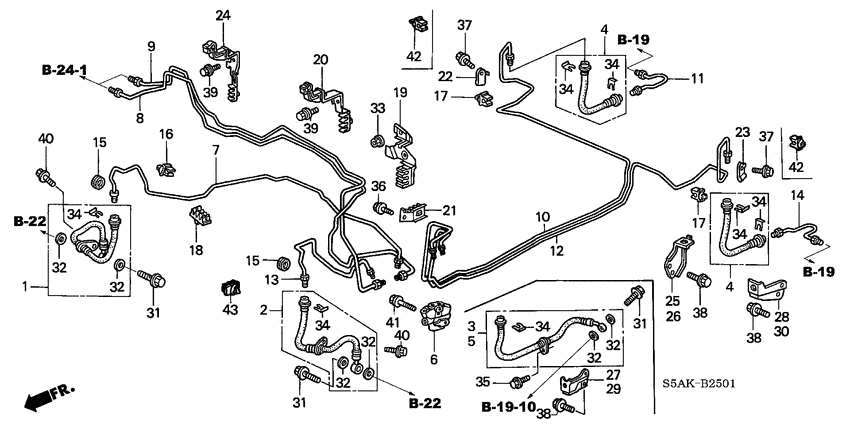

Brake lines (RH) 27
#OEMPart name
1 01464-S5A-J02 Hose set - R. FR. BRAKE
2 01465-S5A-J02 Hose set - L. FR. BRAKE
3 01466-S5A-J03 Hose set - R. RR. BRAKE
5 01468-S5A-J03 Hose set - L. RR. BRAKE
6 46210-S5A-912 Valve assy. - PROPORTIONING
7 46310-S5A-E02 Pipe comp. a - BRAKE
8 46320-S5A-E02 Pipe comp. b - BRAKE
9 46321-S5A-E01 Pipe comp. h - BRAKE
10 46330-S5A-Q01 Pipe comp. c - BRAKE
12 46340-S5A-Q01 Pipe comp. d - BRAKE
13 46360-S5A-Q01 Pipe comp. f - BRAKE
15 46380-SH3-000 Grommet a - BRAKE PIPE
16 46391-SX8-T01 Clip - BRAKE PIPE
17 46391-S5A-J01 Clip - BRAKE PIPE
18 46393-SZ3-003 Clip - BRAKE PIPE
19 46393-S5A-N00 Clip - BRAKE PIPE
20 46394-S5A-J00 Clip - BRAKE PIPE
24 46406-S5A-J01 Stay - BRAKE PIPE
25 46435-S5A-900 Bracket a - R. RR. BRAKE HOSE
26 46436-S5A-900 Bracket a - L. RR. BRAKE HOSE
27 46437-S5A-J00 Bracket - R. RR. BRAKE HOSE
29 46438-S5A-J00 Bracket - L. RR. BRAKE HOSE
31 46462-SE0-000 Bolt - OIL
32 46472-568-000 Packing - OIL BOLT
33 90361-SV4-003 Nut - PAINT CUTTING, 6MM
34 90651-538-000 Clip - BRAKE HOSE
43 46392-SX8-T01 Clip - BRAKE PIPE
Source
Public OEM parts-catalog data
Variants
2 / 12
Category
122
Collected
2026-07-22
