Search › Model › S412M

S412M

Toyota LITE-TOWNACE · 2010 · 2,573 parts · 155 categories

2,573 items

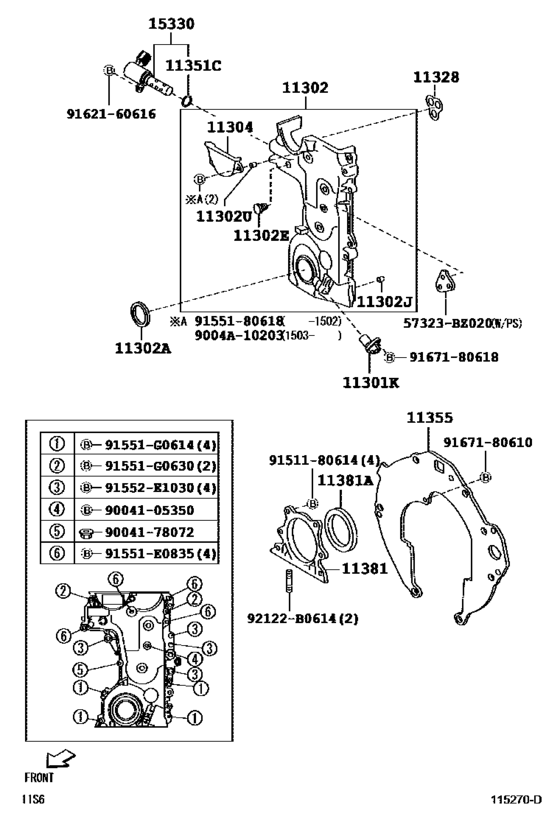

Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- )) 28

#	OEM	Part name
0	91551-E0835	New Genuine Part
0	91552-E1030	New Genuine Part
11301	19311-BZ020	Sensor, Crank Position
11301	19311-97401	Sensor, Crank Position
11302	11310-BZ060	Cover Sub-Assy, Timing Chain Or Belt
11302	90043-41075	Plug, Straight(For Timing Gear Cover)
11302	90042-53010	Pin, Ring(For Camshaft Bearing Cap Setting)
11304	11322-BZ050	Cover, Timing Chain Or Belt, No.2
11328	11328-BZ010	Gasket, Timing Gear Or Chain Cover
11351	90043-01262	Ring, O
11355	11355-BZ060	Plate, Rear End
11381	11381-BZ010	Retainer, Engine Rear Oil Seal
11381	11381-97402	Retainer, Engine Rear Oil Seal
15330	15330-BZ020	Valve Assy, Cam Timing Oil Control
15330	15330-BZ021	Valve Assy, Cam Timing Oil Control
57323	57323-BZ020	Plate, Timing Chain Cover
57323	57323-B4010	Plate, Timing Chain Cover
91551	91551-G0614	New Genuine Part
91551	91551-G0630	New Genuine Part
92122	92122-B0614	Bolt, Stud(For Oil Strainer)
9004105350	90041-05350	New Genuine Part
9004178072	90041-78072	New Genuine Part
9151180614	91511-80614	BOLT FLANGE
9155180618	91551-80618	Bolt, W/washer(For Repair Actuator Set)
9162160616	91621-60616	New Genuine Part
9162160616	91621-B0616	Bolt
9167180610	91671-80610	New Genuine Part
9167180618	91671-80618	BOLT FLANGE WWSHER

OEM	Part name	Category
11310-BZ060	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
11322-BZ050	Cover, Timing Chain Or Belt, No.2	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
11328-BZ010	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
11355-BZ060	Plate, Rear End	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
11381-97402	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
11381-BZ010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
15330-BZ020	Valve Assy, Cam Timing Oil Control	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
15330-BZ021	Valve Assy, Cam Timing Oil Control	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
19311-97401	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
19311-BZ020	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
57323-B4010	Plate, Timing Chain Cover	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
57323-BZ020	Plate, Timing Chain Cover	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
90041-05350	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
90041-78072	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
90042-53010	Pin, Ring(For Camshaft Bearing Cap Setting)	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
90043-01262	Ring, O	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
90043-41075	Plug, Straight(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
91511-80614	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
91551-80618	Bolt, W/washer(For Repair Actuator Set)	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
91551-E0835	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
91551-G0614	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
91551-G0630	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
91552-E1030	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
91621-60616	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
91621-B0616	Bolt	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
91671-80610	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
91671-80618	BOLT FLANGE WWSHER	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
92122-B0614	Bolt, Stud(For Oil Strainer)	Timing Gear Cover & Rear End Plate ([01.2008 - ] (0801- ))
