S412M

Toyota LITE-TOWNACE · 2010 · 2,573 parts · 155 categories
S412M ×

← Back to categories

2,573 items

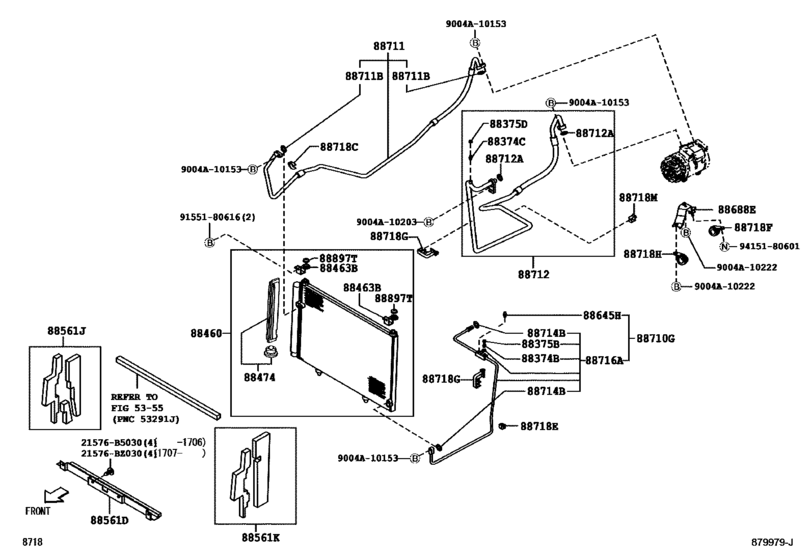

Heating & Air Conditioning - Cooler Piping ([01.2008 - ] (0801- )) 29
#OEMPart name
21576 21576-B5030 Clip, Pump Strainer
88374 88374-87601 Valve, Service, No.1
88375 88375-87603 Cap, Service Valve (For Cooler Pipe)
88375 88375-87601 Cap, Service Valve, No.1
88460 88460-BZ120 Condenser Assy, Cooler
88463 88463-BZ140 Bracket, Cooler Condenser, No.3
88474 88474-17010 Dryer, Cooler
88561 88561-BZ150 Grille, Air Inlet No.3
88561 88578-BZ270 Grille, Air Inlet No.1
88561 88578-BZ280 Grille, Air Inlet No.2
88645 88645-87602 Switch, Pressure No.1
88688 88688-BZ070 Bracket, Cooler Refrigerant Hose, No.1
88710 88710-BZ130 Tube & Accessory Assy, Air Conditioner, No.2
88711 88711-BZ430 Hose, Cooler Refrigerant Discharge, No.1
88711 15188-87402 Ring, O
88712 88712-BZ280 Hose, Cooler Refrigerant Suction, No.1
88712 88712-BZ281 Hose, Cooler Refrigerant Suction, No.1
88712 15188-87403 Ring, O(For Cooler Refrigerant Suction Hose)
88714 15188-87401 Ring, O
88716 88716-BZ600 Pipe, Cooler Refrigerant Liquid, A
88718 88718-B5060 Clamp(For Cooler Refrigerant Pipe), No.3
88718 88718-BZ640 Clamp(For Cooler Refrigerant Pipe), No.3
88718 88718-BZ580 Clamp(For Cooler Refrigerant Pipe), No.5
88718 88718-BZ470 Clamp(For Cooler Refrigerant Hose), No.1
88718 88718-BZ570 Clamp(For Cooler Refrigerant Hose), No.2
88718 88718-BZ480 Clamp(For Cooler Refrigerant Hose), No.3
88897 88463-BZ150 Grommet, Cooler
9155180616 91551-80616 BOLT FLANGE
9415180601 94151-80601 New Genuine Part
