Search › Model › S412M

S412M

Toyota LITE-TOWNACE · 2010 · 2,573 parts · 155 categories

2,573 items

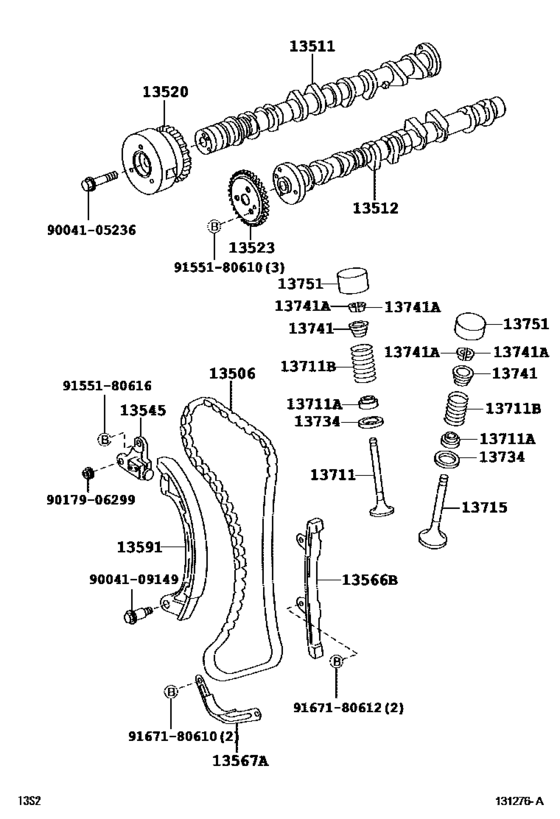

Camshaft & Valve ([01.2008 - ] (0801- )) 90

#	OEM	Part name
13506	13506-BZ020	Chain Sub-Assy
13506	13506-BZ050	Chain Sub-Assy
13506	13506-B1010	Chain Sub-Assy
13511	13501-B1020	Camshaft
13512	13502-97401	Camshaft, No.2
13520	13520-BZ030	Sprocket Assy, Camshaft Timing
13520	13520-B1020	Sprocket Assy, Camshaft Timing
13523	13523-BZ040	Gear Or Sprocket, Camshaft Timing
13523	13523-BZ060	Gear Or Sprocket, Camshaft Timing
13545	13545-BZ011	Plunger, Chain Tensioner
13545	13545-BZ031	Plunger, Chain Tensioner
13545	13545-23022	Plunger, Chain Tensioner
13566	13566-BZ010	Guide, Timing Chain
13566	13566-BZ040	Guide, Timing Chain
13566	13566-B1020	Guide, Timing Chain
13567	13567-BZ020	Guide, Timing Chain, No.2
13567	13567-23030	Guide, Timing Chain, No.2
13591	13591-BZ010	Arm, Timing Chain Tension
13591	13591-BZ040	Arm, Timing Chain Tension
13591	13591-B1020	Arm, Timing Chain Tension
13711	13711-BZ060	Valve, Intake
13715	13715-BZ060	Valve, Exhaust
13734	13734-87206	Seat, Valve Spring
13741	13741-97401	Retainer, Valve Spring
13741	90048-13013	Lock, Valve Spring Retainer
13751	13751-BZ030	Lifter, Valve
13751	13751-BZ340	Lifter, Valve
13751	13751-BZ040	Lifter, Valve
13751	13751-BZ350	Lifter, Valve
13751	13751-BZ050	Lifter, Valve
13751	13751-BZ360	Lifter, Valve
13751	13751-BZ060	Lifter, Valve
13751	13751-BZ370	Lifter, Valve
13751	13751-BZ070	Lifter, Valve
13751	13751-BZ380	Lifter, Valve
13751	13751-BZ080	Lifter, Valve
13751	13751-BZ390	Lifter, Valve
13751	13751-BZ090	Lifter, Valve
13751	13751-BZ400	Lifter, Valve
13751	13751-BZ100	Lifter, Valve
13751	13751-BZ410	Lifter, Valve
13751	13751-BZ110	Lifter, Valve
13751	13751-BZ420	Lifter, Valve
13751	13751-BZ120	Lifter, Valve
13751	13751-BZ430	Lifter, Valve
13751	13751-BZ130	Lifter, Valve
13751	13751-BZ440	Lifter, Valve
13751	13751-BZ140	Lifter, Valve
13751	13751-BZ450	Lifter, Valve
13751	13751-BZ150	Lifter, Valve
13751	13751-BZ460	Lifter, Valve
13751	13751-BZ160	Lifter, Valve
13751	13751-BZ470	Lifter, Valve
13751	13751-BZ170	Lifter, Valve
13751	13751-BZ480	Lifter, Valve
13751	13751-BZ180	Lifter, Valve
13751	13751-BZ490	Lifter, Valve
13751	13751-BZ190	Lifter, Valve
13751	13751-BZ500	Lifter, Valve
13751	13751-BZ200	Lifter, Valve
13751	13751-BZ510	Lifter, Valve
13751	13751-BZ210	Lifter, Valve
13751	13751-BZ520	Lifter, Valve
13751	13751-BZ220	Lifter, Valve
13751	13751-BZ530	Lifter, Valve
13751	13751-BZ230	Lifter, Valve
13751	13751-BZ540	Lifter, Valve
13751	13751-BZ240	Lifter, Valve
13751	13751-BZ550	Lifter, Valve
13751	13751-BZ250	Lifter, Valve
13751	13751-BZ560	Lifter, Valve
13751	13751-BZ260	Lifter, Valve
13751	13751-BZ570	Lifter, Valve
13751	13751-BZ270	Lifter, Valve
13751	13751-BZ580	Lifter, Valve
13751	13751-BZ280	Lifter, Valve
13751	13751-BZ590	Lifter, Valve
13751	13751-BZ290	Lifter, Valve
13751	13751-BZ600	Lifter, Valve
13751	13751-BZ300	Lifter, Valve
13751	13751-BZ610	Lifter, Valve
13751	13751-BZ310	Lifter, Valve
13751	13751-BZ620	Lifter, Valve
9004105236	90041-05236	New Genuine Part
9004109149	90041-09149	New Genuine Part
9017906299	90179-06299	Nut, Wire Adjusting, No.1
9155180610	91551-80610	BOLT FLANGE
9155180616	91551-80616	BOLT FLANGE
9167180610	91671-80610	New Genuine Part
9167180612	91671-80612	Bolt

OEM	Part name	Category
13501-B1020	Camshaft	Camshaft & Valve ([01.2008 - ] (0801- ))
13502-97401	Camshaft, No.2	Camshaft & Valve ([01.2008 - ] (0801- ))
13506-B1010	Chain Sub-Assy	Camshaft & Valve ([01.2008 - ] (0801- ))
13506-BZ020	Chain Sub-Assy	Camshaft & Valve ([01.2008 - ] (0801- ))
13506-BZ050	Chain Sub-Assy	Camshaft & Valve ([01.2008 - ] (0801- ))
13520-B1020	Sprocket Assy, Camshaft Timing	Camshaft & Valve ([01.2008 - ] (0801- ))
13520-BZ030	Sprocket Assy, Camshaft Timing	Camshaft & Valve ([01.2008 - ] (0801- ))
13523-BZ040	Gear Or Sprocket, Camshaft Timing	Camshaft & Valve ([01.2008 - ] (0801- ))
13523-BZ060	Gear Or Sprocket, Camshaft Timing	Camshaft & Valve ([01.2008 - ] (0801- ))
13545-23022	Plunger, Chain Tensioner	Camshaft & Valve ([01.2008 - ] (0801- ))
13545-BZ011	Plunger, Chain Tensioner	Camshaft & Valve ([01.2008 - ] (0801- ))
13545-BZ031	Plunger, Chain Tensioner	Camshaft & Valve ([01.2008 - ] (0801- ))
13566-B1020	Guide, Timing Chain	Camshaft & Valve ([01.2008 - ] (0801- ))
13566-BZ010	Guide, Timing Chain	Camshaft & Valve ([01.2008 - ] (0801- ))
13566-BZ040	Guide, Timing Chain	Camshaft & Valve ([01.2008 - ] (0801- ))
13567-23030	Guide, Timing Chain, No.2	Camshaft & Valve ([01.2008 - ] (0801- ))
13567-BZ020	Guide, Timing Chain, No.2	Camshaft & Valve ([01.2008 - ] (0801- ))
13591-B1020	Arm, Timing Chain Tension	Camshaft & Valve ([01.2008 - ] (0801- ))
13591-BZ010	Arm, Timing Chain Tension	Camshaft & Valve ([01.2008 - ] (0801- ))
13591-BZ040	Arm, Timing Chain Tension	Camshaft & Valve ([01.2008 - ] (0801- ))
13711-BZ060	Valve, Intake	Camshaft & Valve ([01.2008 - ] (0801- ))
13715-BZ060	Valve, Exhaust	Camshaft & Valve ([01.2008 - ] (0801- ))
13734-87206	Seat, Valve Spring	Camshaft & Valve ([01.2008 - ] (0801- ))
13741-97401	Retainer, Valve Spring	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ030	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ040	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ050	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ060	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ070	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ080	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ090	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ100	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ110	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ120	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ130	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ140	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ150	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ160	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ170	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ180	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ190	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ200	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ210	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ220	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ230	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ240	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ250	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ260	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ270	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ280	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ290	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ300	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ310	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ340	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ350	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ360	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ370	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ380	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ390	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ400	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ410	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ420	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ430	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ440	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ450	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ460	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ470	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ480	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ490	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ500	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ510	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ520	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ530	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ540	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ550	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ560	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ570	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ580	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ590	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ600	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ610	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
13751-BZ620	Lifter, Valve	Camshaft & Valve ([01.2008 - ] (0801- ))
90041-05236	New Genuine Part	Camshaft & Valve ([01.2008 - ] (0801- ))
90041-09149	New Genuine Part	Camshaft & Valve ([01.2008 - ] (0801- ))
90048-13013	Lock, Valve Spring Retainer	Camshaft & Valve ([01.2008 - ] (0801- ))
90179-06299	Nut, Wire Adjusting, No.1	Camshaft & Valve ([01.2008 - ] (0801- ))
91551-80610	BOLT FLANGE	Camshaft & Valve ([01.2008 - ] (0801- ))
91551-80616	BOLT FLANGE	Camshaft & Valve ([01.2008 - ] (0801- ))
91671-80610	New Genuine Part	Camshaft & Valve ([01.2008 - ] (0801- ))
91671-80612	Bolt	Camshaft & Valve ([01.2008 - ] (0801- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 155
Collected: 2026-08-04
