Search › Model › S402M
S402M

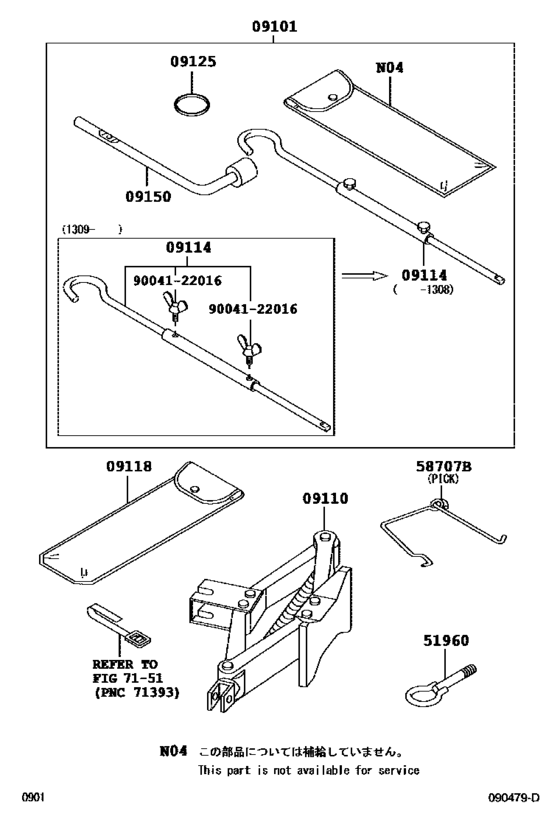

Standard Tool ([01.2008 - ] (0801- )) 12
| # | OEM | Part name |
|---|---|---|
| 9101 | 09101-BZ120 | Tool Set, Standard W/o Jack |
| 9101 | 09101-BZ121 | Tool Set, Standard W/o Jack |
| 9110 | 09111-BZ150 | Jack Assy |
| 9110 | 09111-BZ151 | Jack Assy |
| 9114 | 09114-BZ040 | Extension Sub-Assy, Jack Handle |
| 9114 | 09114-BZ041 | Extension Sub-Assy, Jack Handle |
| 9118 | 09118-BZ010 | Cover, Jack |
| 9125 | 09125-BZ010 | Band, Tool Bag |
| 9150 | 09150-87Z01 | Wrench, Hub Nut Box |
| 9150 | 09150-BZ040 | Wrench, Hub Nut Box |
| 51960 | 51960-BZ070 | Hook Assy, Front |
| 9004122016 | 90041-22016 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 09101-BZ120 | Tool Set, Standard W/o Jack | Standard Tool ([01.2008 - ] (0801- )) |
| 09101-BZ121 | Tool Set, Standard W/o Jack | Standard Tool ([01.2008 - ] (0801- )) |
| 09111-BZ150 | Jack Assy | Standard Tool ([01.2008 - ] (0801- )) |
| 09111-BZ151 | Jack Assy | Standard Tool ([01.2008 - ] (0801- )) |
| 09114-BZ040 | Extension Sub-Assy, Jack Handle | Standard Tool ([01.2008 - ] (0801- )) |
| 09114-BZ041 | Extension Sub-Assy, Jack Handle | Standard Tool ([01.2008 - ] (0801- )) |
| 09118-BZ010 | Cover, Jack | Standard Tool ([01.2008 - ] (0801- )) |
| 09125-BZ010 | Band, Tool Bag | Standard Tool ([01.2008 - ] (0801- )) |
| 09150-87Z01 | Wrench, Hub Nut Box | Standard Tool ([01.2008 - ] (0801- )) |
| 09150-BZ040 | Wrench, Hub Nut Box | Standard Tool ([01.2008 - ] (0801- )) |
| 51960-BZ070 | Hook Assy, Front | Standard Tool ([01.2008 - ] (0801- )) |
| 90041-22016 | New Genuine Part | Standard Tool ([01.2008 - ] (0801- )) |
