Search › Model › S35
S35

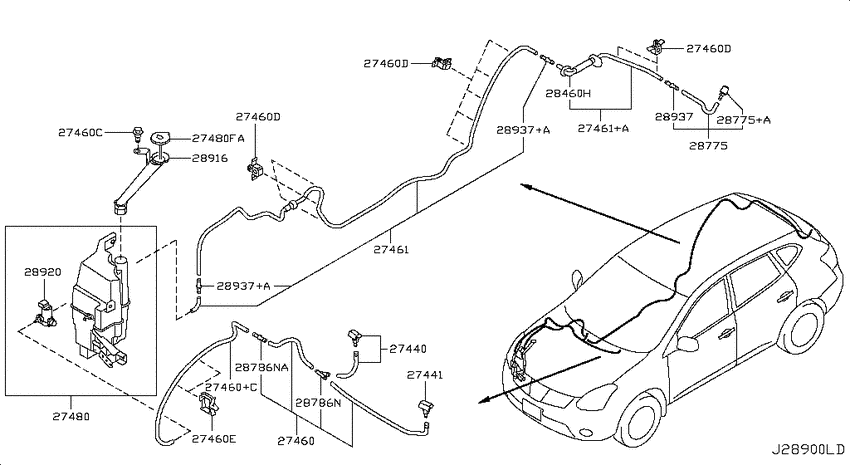

Windshield washer (2009-08-01 ~ ; HB) 11
| # | OEM | Part name |
|---|---|---|
| 27440 | 28930-JM00A | Nozzle assy-washer,rh |
| 27441 | 28931-JM00A | Nozzle Assy-Washer, Lh |
| 27460 | 28935-JM00A | Tube-Washer, Windshield |
| 27460 | 28940-VW001 | Hose-Washer |
| 27461 | 28975-JM00A | Hose-Washer |
| 27461 | 28975-JM01A | Hose-Washer |
| 27480 | 28910-JM000 | Tank Assy-Windshield Washer |
| 28460 | 28982-JM00A | Grommet |
| 28775 | 28972-JM00A | Nozzle Assy-Rear Window Washer |
| 28775 | 28970-JM00A | Nozzle Assy-Rear Window Washer |
| 28786 | 28937-EB70A | Connector-Hose |
| OEM | Part name | Category |
|---|---|---|
| 28910-JM000 | Tank Assy-Windshield Washer | Windshield washer (2009-08-01 ~ ; HB) |
| 28930-JM00A | Nozzle assy-washer,rh | Windshield washer (2009-08-01 ~ ; HB) |
| 28931-JM00A | Nozzle Assy-Washer, Lh | Windshield washer (2009-08-01 ~ ; HB) |
| 28935-JM00A | Tube-Washer, Windshield | Windshield washer (2009-08-01 ~ ; HB) |
| 28937-EB70A | Connector-Hose | Windshield washer (2009-08-01 ~ ; HB) |
| 28940-VW001 | Hose-Washer | Windshield washer (2009-08-01 ~ ; HB) |
| 28970-JM00A | Nozzle Assy-Rear Window Washer | Windshield washer (2009-08-01 ~ ; HB) |
| 28972-JM00A | Nozzle Assy-Rear Window Washer | Windshield washer (2009-08-01 ~ ; HB) |
| 28975-JM00A | Hose-Washer | Windshield washer (2009-08-01 ~ ; HB) |
| 28975-JM01A | Hose-Washer | Windshield washer (2009-08-01 ~ ; HB) |
| 28982-JM00A | Grommet | Windshield washer (2009-08-01 ~ ; HB) |
