Search › Model › S35
S35

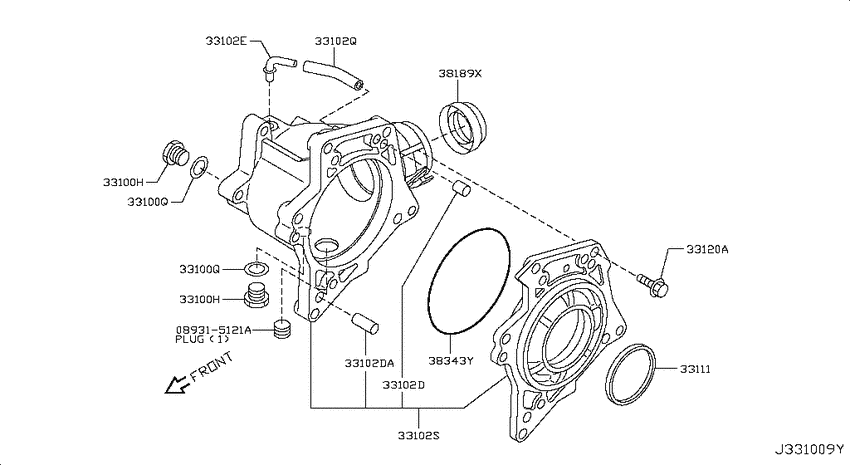

Transfer case (2009-08-01 ~ ; 4WD.QR25DE) 10
| # | OEM | Part name |
|---|---|---|
| 33100 | 32103-4N21A | Plug-Drain |
| 33100 | 32103-1MG0B | Plug-Filler |
| 33100 | 11026-EN10A | Gasket-Filler Plug |
| 33102 | 32105-C6901 | Pin |
| 33102 | 32106-EN10A | Pin |
| 33102 | 38322-EN12A | Breather |
| 33102 | 31098-EN10B | Hose-Breather |
| 33102 | 33101-JG20A | Case Set-Transfer |
| 33120 | 31377-EN11A | Bolt |
| 38189 | 38189-4N20A | Seal-Oil, Drive Pinion |
| OEM | Part name | Category |
|---|---|---|
| 11026-EN10A | Gasket-Filler Plug | Transfer case (2009-08-01 ~ ; 4WD.QR25DE) |
| 31098-EN10B | Hose-Breather | Transfer case (2009-08-01 ~ ; 4WD.QR25DE) |
| 31377-EN11A | Bolt | Transfer case (2009-08-01 ~ ; 4WD.QR25DE) |
| 32103-1MG0B | Plug-Filler | Transfer case (2009-08-01 ~ ; 4WD.QR25DE) |
| 32103-4N21A | Plug-Drain | Transfer case (2009-08-01 ~ ; 4WD.QR25DE) |
| 32105-C6901 | Pin | Transfer case (2009-08-01 ~ ; 4WD.QR25DE) |
| 32106-EN10A | Pin | Transfer case (2009-08-01 ~ ; 4WD.QR25DE) |
| 33101-JG20A | Case Set-Transfer | Transfer case (2009-08-01 ~ ; 4WD.QR25DE) |
| 38189-4N20A | Seal-Oil, Drive Pinion | Transfer case (2009-08-01 ~ ; 4WD.QR25DE) |
| 38322-EN12A | Breather | Transfer case (2009-08-01 ~ ; 4WD.QR25DE) |
