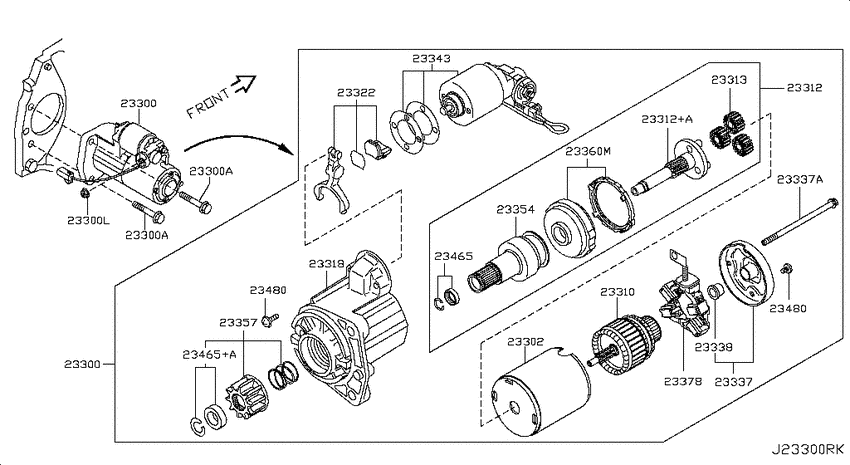

| 23300-ET80B |
Motor Assy-Starter |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23302-ET80A |
Yoke Assy |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23310-8Y000 |
Armature Assy |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23312-ET80A |
Pinion Assy |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23312-ET81A |
Pinion Assy |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23318-ET80A |
Case Assy-Gear |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23322-ED000 |
Lever Set-Shift |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23337-ET80A |
Cover Assy-Rear |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23338-8Y000 |
Metal-Rear Cover |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23340-JF00B |
Bolt-Through |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23343-ET80A |
Switch Assy-Magnetic |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23350-8Y000 |
Internal Gear Assy |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23354-ET80A |
Clutch Assy |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23357-EA200 |
Shaft-Pinion |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23361-42L70 |
Planet Gear |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23378-ET80A |
Holder Assy-Brush |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23465-0B711 |
Stopper Set-Pinion |
Starter motor (2009-08-01 ~ ; QR25DE) |
| 23465-W9810 |
Stopper Set-Pinion |
Starter motor (2009-08-01 ~ ; QR25DE) |
