S35

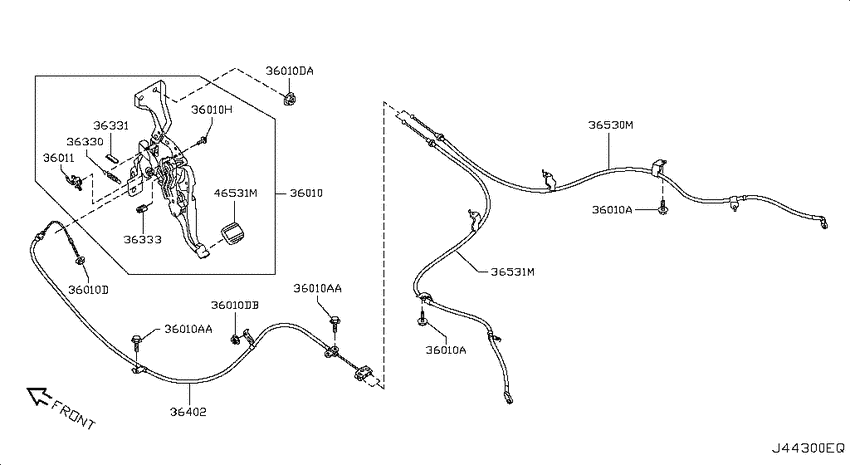

Parking brake control (2009-08-01 ~ ; QR25DE) 10
| # | OEM | Part name |
|---|---|---|
| 36010 | 36010-JM000 | Device Assy-Parking Brake Control |
| 36010 | 54459-0M00C | Bolt |
| 36010 | 01125-N8041 | Bolt |
| 36330 | 36330-EN000 | Spring-Return, Pawl |
| 36331 | 36331-EN000 | Silencer-Spring |
| 36333 | 36333-EN000 | Stopper-Rubber |
| 36402 | 36402-JM000 | Cable Assy-Parking Brake, Front |
| 36530 | 36530-JM000 | Cable Assy-Parking, Rear Rh |
| 36531 | 36531-JM000 | Cable Assy-Parking, Rear Lh |
| 46531 | 46531-CK000 | Pad-Pedal |
| OEM | Part name | Category |
|---|---|---|
| 01125-N8041 | Bolt | Parking brake control (2009-08-01 ~ ; QR25DE) |
| 36010-JM000 | Device Assy-Parking Brake Control | Parking brake control (2009-08-01 ~ ; QR25DE) |
| 36330-EN000 | Spring-Return, Pawl | Parking brake control (2009-08-01 ~ ; QR25DE) |
| 36331-EN000 | Silencer-Spring | Parking brake control (2009-08-01 ~ ; QR25DE) |
| 36333-EN000 | Stopper-Rubber | Parking brake control (2009-08-01 ~ ; QR25DE) |
| 36402-JM000 | Cable Assy-Parking Brake, Front | Parking brake control (2009-08-01 ~ ; QR25DE) |
| 36530-JM000 | Cable Assy-Parking, Rear Rh | Parking brake control (2009-08-01 ~ ; QR25DE) |
| 36531-JM000 | Cable Assy-Parking, Rear Lh | Parking brake control (2009-08-01 ~ ; QR25DE) |
| 46531-CK000 | Pad-Pedal | Parking brake control (2009-08-01 ~ ; QR25DE) |
| 54459-0M00C | Bolt | Parking brake control (2009-08-01 ~ ; QR25DE) |
