S35

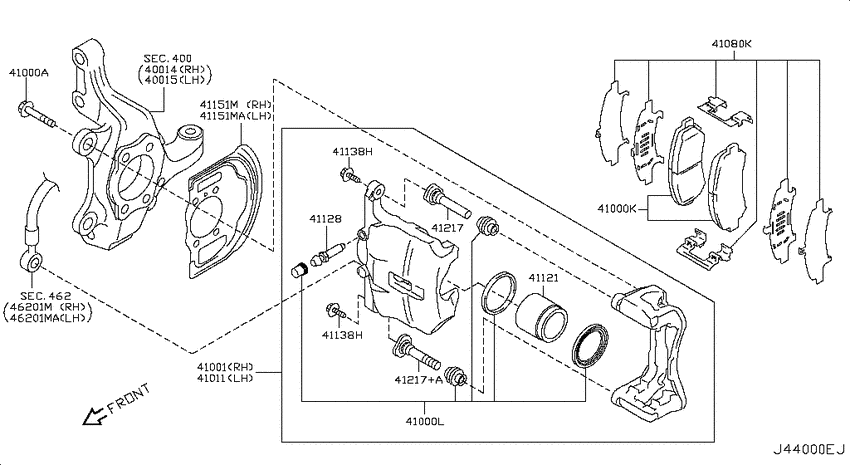

Front brake (2009-08-01 ~ ; QR25DE) 4
| # | OEM | Part name |
|---|---|---|
| 41011 | 41011-JE00A | Caliper Assy-Front Lh, W/o Pads Or Shims |
| 41121 | 41121-JE00A | Piston-Cylinder |
| 41151 | 41151-JU00A | Plate-Baffle |
| 41151 | 41161-JU00A | Plate-Baffle |
| OEM | Part name | Category |
|---|---|---|
| 41011-JE00A | Caliper Assy-Front Lh, W/o Pads Or Shims | Front brake (2009-08-01 ~ ; QR25DE) |
| 41121-JE00A | Piston-Cylinder | Front brake (2009-08-01 ~ ; QR25DE) |
| 41151-JU00A | Plate-Baffle | Front brake (2009-08-01 ~ ; QR25DE) |
| 41161-JU00A | Plate-Baffle | Front brake (2009-08-01 ~ ; QR25DE) |
