Search › Model › S35
S35

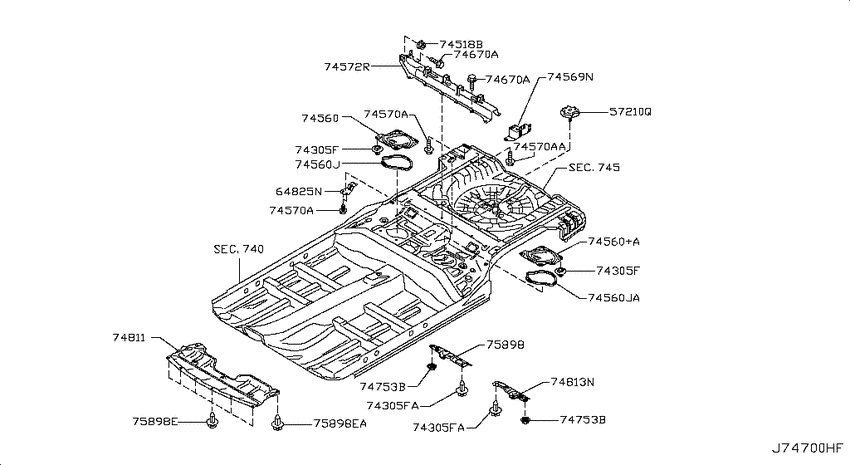

Floor fitting (2009-08-01 ~ ; HB) 9
| # | OEM | Part name |
|---|---|---|
| 64825 | 64825-JM00A | Bracket-Canister |
| 74305 | 62318-4M400 | Clip |
| 74569 | 74569-JG00A | Bracket-2Nd Seat Mounting, Lh |
| 74570 | 01125-N8021 | Bolt |
| 74570 | 01125-N2021 | Bolt |
| 74572 | 74520-JM00A | Support Assy-Rear Seat Back |
| 74811 | 75892-JM00A | Cover-Under, Engine |
| 75898 | 74814-JG00A | Cover-Floor Under, Rh |
| 75898 | 01553-05933 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 01125-N2021 | Bolt | Floor fitting (2009-08-01 ~ ; HB) |
| 01125-N8021 | Bolt | Floor fitting (2009-08-01 ~ ; HB) |
| 01553-05933 | CLIP | Floor fitting (2009-08-01 ~ ; HB) |
| 62318-4M400 | Clip | Floor fitting (2009-08-01 ~ ; HB) |
| 64825-JM00A | Bracket-Canister | Floor fitting (2009-08-01 ~ ; HB) |
| 74520-JM00A | Support Assy-Rear Seat Back | Floor fitting (2009-08-01 ~ ; HB) |
| 74569-JG00A | Bracket-2Nd Seat Mounting, Lh | Floor fitting (2009-08-01 ~ ; HB) |
| 74814-JG00A | Cover-Floor Under, Rh | Floor fitting (2009-08-01 ~ ; HB) |
| 75892-JM00A | Cover-Under, Engine | Floor fitting (2009-08-01 ~ ; HB) |
