Search › Model › S35
S35

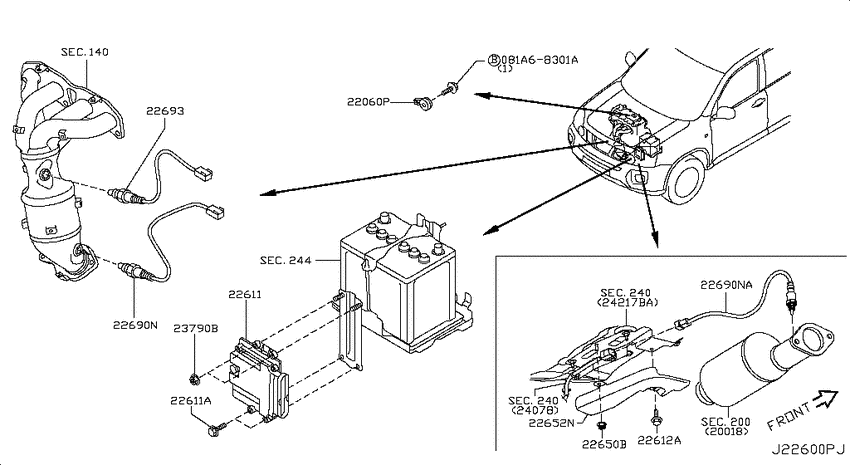

Engine control module (2009-08-01 ~ ; QR25DE) 7
| # | OEM | Part name |
|---|---|---|
| 22060 | 22060-JK20B | Knock Sensor |
| 22611 | 23710-CZ33A | Engine Control Module |
| 22611 | 01456-00561 | SCREW |
| 22611 | 23710-CZ31A | Engine Control Module |
| 22652 | 22650-JM00A | Heated Oxygen Sensor Bracket |
| 22693 | 22693-1AA0A | Sensor Assy-Air Fuel Ratio |
| 23790 | 01225-N6031 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 01225-N6031 | Nut | Engine control module (2009-08-01 ~ ; QR25DE) |
| 01456-00561 | SCREW | Engine control module (2009-08-01 ~ ; QR25DE) |
| 22060-JK20B | Knock Sensor | Engine control module (2009-08-01 ~ ; QR25DE) |
| 22650-JM00A | Heated Oxygen Sensor Bracket | Engine control module (2009-08-01 ~ ; QR25DE) |
| 22693-1AA0A | Sensor Assy-Air Fuel Ratio | Engine control module (2009-08-01 ~ ; QR25DE) |
| 23710-CZ31A | Engine Control Module | Engine control module (2009-08-01 ~ ; QR25DE) |
| 23710-CZ33A | Engine Control Module | Engine control module (2009-08-01 ~ ; QR25DE) |
