Search › Model › S35
S35

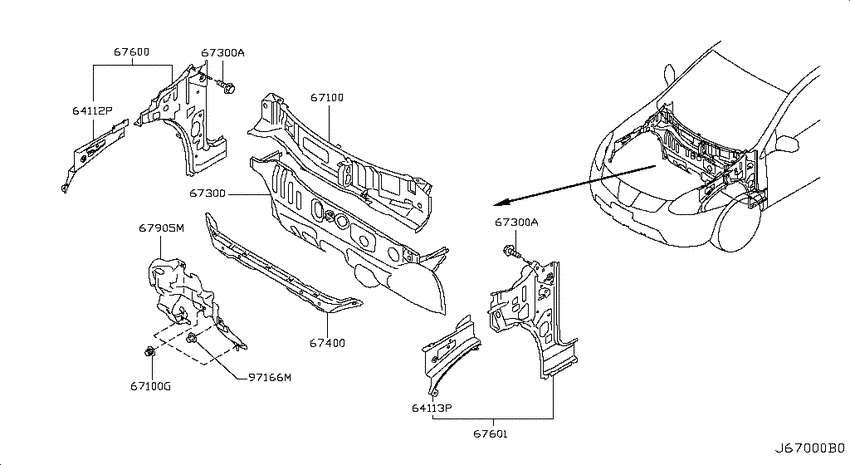

Dash panel & fitting (2009-08-01 ~ ; HB) 7
| # | OEM | Part name |
|---|---|---|
| 67100 | 67100-JM00A | Dash Assy-Upper |
| 67300 | 01121-N8021 | Bolt |
| 67400 | 67402-JM00A | Member-Dash Lower Cross |
| 67600 | 76240-JM00A | Dash-Side, Rh |
| 67601 | 76241-JM00A | Dash-Side, Lh |
| 67905 | 67810-JG40A | Insulator-Dash, Lower Front |
| 67905 | 67810-JG40B | Insulator-dash lower,front |
| OEM | Part name | Category |
|---|---|---|
| 01121-N8021 | Bolt | Dash panel & fitting (2009-08-01 ~ ; HB) |
| 67100-JM00A | Dash Assy-Upper | Dash panel & fitting (2009-08-01 ~ ; HB) |
| 67402-JM00A | Member-Dash Lower Cross | Dash panel & fitting (2009-08-01 ~ ; HB) |
| 67810-JG40A | Insulator-Dash, Lower Front | Dash panel & fitting (2009-08-01 ~ ; HB) |
| 67810-JG40B | Insulator-dash lower,front | Dash panel & fitting (2009-08-01 ~ ; HB) |
| 76240-JM00A | Dash-Side, Rh | Dash panel & fitting (2009-08-01 ~ ; HB) |
| 76241-JM00A | Dash-Side, Lh | Dash panel & fitting (2009-08-01 ~ ; HB) |
