S35

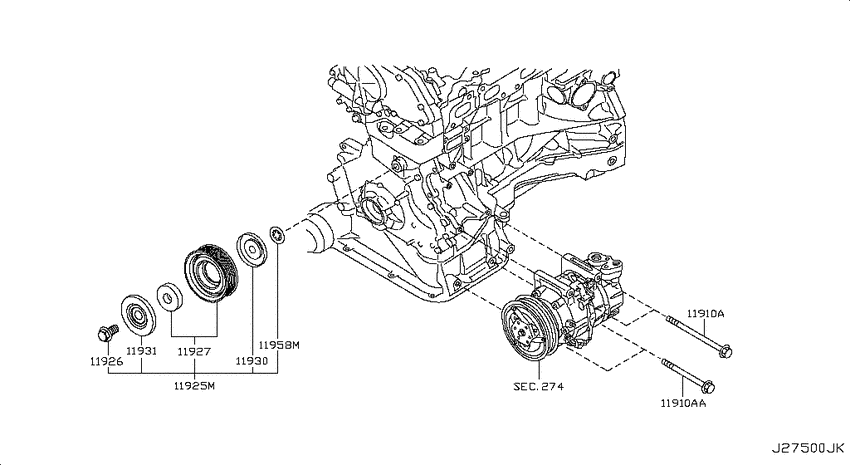

Compressor mounting & fitting (2009-08-01 ~ ; QR25DE) 8
| # | OEM | Part name |
|---|---|---|
| 11910 | 11916-6N20A | Bolt |
| 11910 | 11916-6N20B | Bolt |
| 11925 | 11925-EA00A | Pulley Assy-Idler, Compressor |
| 11926 | 11928-EA00B | Shaft-Idler Pulley |
| 11927 | 11927-EA000 | Pulley-Idler |
| 11930 | 11930-EA000 | Cover-Idler Pulley |
| 11931 | 11931-EA000 | Spacer-Idler Pulley |
| 11958 | 11958-VK500 | Stopper-Idler |
| OEM | Part name | Category |
|---|---|---|
| 11916-6N20A | Bolt | Compressor mounting & fitting (2009-08-01 ~ ; QR25DE) |
| 11916-6N20B | Bolt | Compressor mounting & fitting (2009-08-01 ~ ; QR25DE) |
| 11925-EA00A | Pulley Assy-Idler, Compressor | Compressor mounting & fitting (2009-08-01 ~ ; QR25DE) |
| 11927-EA000 | Pulley-Idler | Compressor mounting & fitting (2009-08-01 ~ ; QR25DE) |
| 11928-EA00B | Shaft-Idler Pulley | Compressor mounting & fitting (2009-08-01 ~ ; QR25DE) |
| 11930-EA000 | Cover-Idler Pulley | Compressor mounting & fitting (2009-08-01 ~ ; QR25DE) |
| 11931-EA000 | Spacer-Idler Pulley | Compressor mounting & fitting (2009-08-01 ~ ; QR25DE) |
| 11958-VK500 | Stopper-Idler | Compressor mounting & fitting (2009-08-01 ~ ; QR25DE) |
