Search › Model › S35
S35

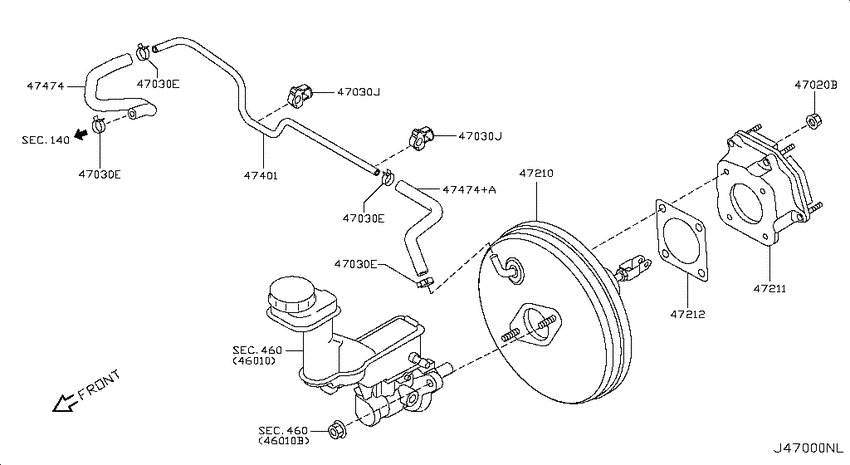

Brake servo & servo control (2009-08-01 ~ ; QR25DE) 6
| # | OEM | Part name |
|---|---|---|
| 47030 | 46289-JD92A | Clamp |
| 47211 | 47211-JD00A | Spacer-Brake Booster |
| 47212 | 47212-4CE0A | Packing-Booster |
| 47401 | 47401-JG010 | Tube-Booster To Tank |
| 47474 | 47474-JG310 | Hose-Booster |
| 47474 | 47471-JG010 | Hose-Booster |
| OEM | Part name | Category |
|---|---|---|
| 46289-JD92A | Clamp | Brake servo & servo control (2009-08-01 ~ ; QR25DE) |
| 47211-JD00A | Spacer-Brake Booster | Brake servo & servo control (2009-08-01 ~ ; QR25DE) |
| 47212-4CE0A | Packing-Booster | Brake servo & servo control (2009-08-01 ~ ; QR25DE) |
| 47401-JG010 | Tube-Booster To Tank | Brake servo & servo control (2009-08-01 ~ ; QR25DE) |
| 47471-JG010 | Hose-Booster | Brake servo & servo control (2009-08-01 ~ ; QR25DE) |
| 47474-JG310 | Hose-Booster | Brake servo & servo control (2009-08-01 ~ ; QR25DE) |
