S35

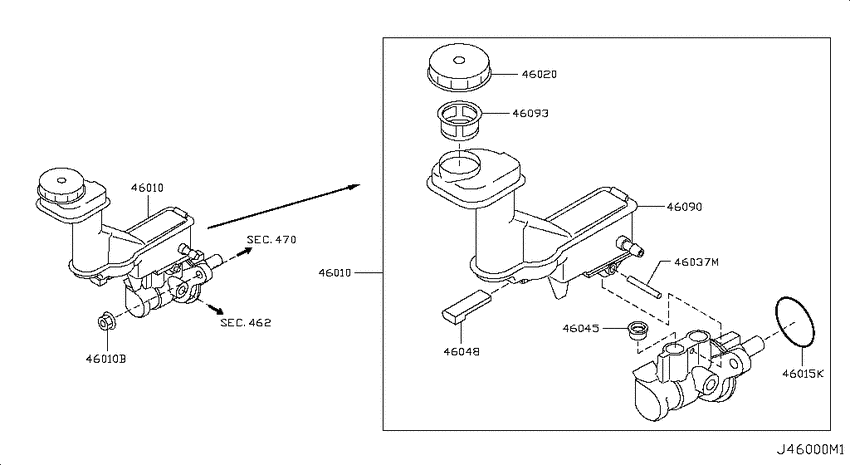

Brake master cylinder (2009-08-01 ~ ; QR25DE) 7
| # | OEM | Part name |
|---|---|---|
| 46010 | 46064-EN000 | Nut |
| 46020 | 01125-N8021 | Bolt |
| 46037 | 46037-EG000 | Pin-Spring |
| 46045 | 46045-EG000 | Seal-Reservoir Tank |
| 46048 | 46048-64J21 | Indicator Assy-Level |
| 46090 | 46091-JG80A | Tank Assy-Brake Oil Reservoir |
| 46093 | 46093-5V200 | Strainer-Brake Oil |
| OEM | Part name | Category |
|---|---|---|
| 01125-N8021 | Bolt | Brake master cylinder (2009-08-01 ~ ; QR25DE) |
| 46037-EG000 | Pin-Spring | Brake master cylinder (2009-08-01 ~ ; QR25DE) |
| 46045-EG000 | Seal-Reservoir Tank | Brake master cylinder (2009-08-01 ~ ; QR25DE) |
| 46048-64J21 | Indicator Assy-Level | Brake master cylinder (2009-08-01 ~ ; QR25DE) |
| 46064-EN000 | Nut | Brake master cylinder (2009-08-01 ~ ; QR25DE) |
| 46091-JG80A | Tank Assy-Brake Oil Reservoir | Brake master cylinder (2009-08-01 ~ ; QR25DE) |
| 46093-5V200 | Strainer-Brake Oil | Brake master cylinder (2009-08-01 ~ ; QR25DE) |
