S35

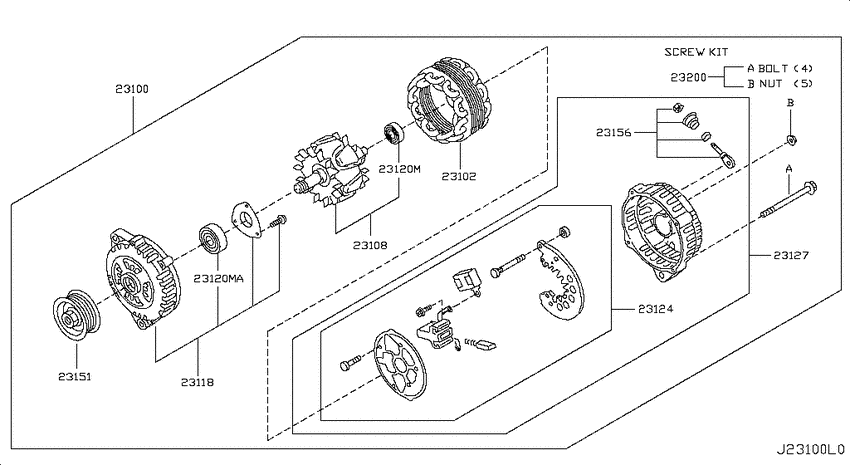

Alternator (2009-08-01 ~ ; ALTERNATOR ASSY; QR25DE) 9
| # | OEM | Part name |
|---|---|---|
| 23100 | 23100-AU40D | Alternator Assy |
| 23102 | 23102-AU401 | Stator Assy |
| 23108 | 23108-AU40B | Rotor Assy |
| 23118 | 23118-AU40A | Cover Assy-Front |
| 23120 | 23120-0M000 | Bearing-Ball |
| 23124 | 23124-AU40B | Rectifier Assy |
| 23127 | 23127-AU40A | Cover Assy-Rear |
| 23156 | 23156-CN10A | Terminal Assy-B |
| 23200 | 23200-CN10A | Screw Set |
| OEM | Part name | Category |
|---|---|---|
| 23100-AU40D | Alternator Assy | Alternator (2009-08-01 ~ ; ALTERNATOR ASSY; QR25DE) |
| 23102-AU401 | Stator Assy | Alternator (2009-08-01 ~ ; ALTERNATOR ASSY; QR25DE) |
| 23108-AU40B | Rotor Assy | Alternator (2009-08-01 ~ ; ALTERNATOR ASSY; QR25DE) |
| 23118-AU40A | Cover Assy-Front | Alternator (2009-08-01 ~ ; ALTERNATOR ASSY; QR25DE) |
| 23120-0M000 | Bearing-Ball | Alternator (2009-08-01 ~ ; ALTERNATOR ASSY; QR25DE) |
| 23124-AU40B | Rectifier Assy | Alternator (2009-08-01 ~ ; ALTERNATOR ASSY; QR25DE) |
| 23127-AU40A | Cover Assy-Rear | Alternator (2009-08-01 ~ ; ALTERNATOR ASSY; QR25DE) |
| 23156-CN10A | Terminal Assy-B | Alternator (2009-08-01 ~ ; ALTERNATOR ASSY; QR25DE) |
| 23200-CN10A | Screw Set | Alternator (2009-08-01 ~ ; ALTERNATOR ASSY; QR25DE) |
