Search › Model › S331M

S331M

Toyota PIXIS · 2011 · 2,215 parts · 164 categories

← Back to categories

2,215 items

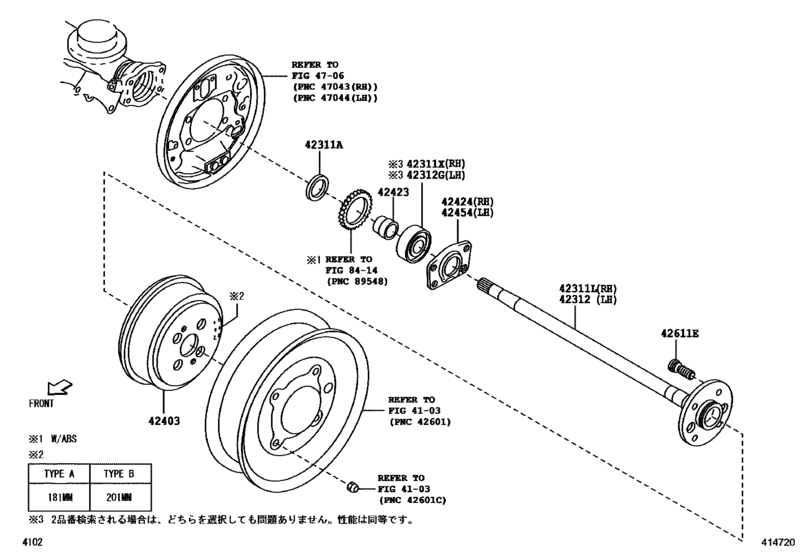

Rear Axle Shaft & Hub ([12.2011 - ] (1112- )) 11

#	OEM	Part name
42311	90043-11291	Seal, Oil (For Rear Axle Shaft)
42311	90043-11432	Seal, Oil (For Rear Axle Shaft)
42311	42311-B5010	Shaft, Rear Axle, Rh
42311	90043-63402	Bearing (For Rear Axle Shaft Rh)
42312	42312-B5010	Shaft, Rear Axle, Lh
42403	42431-97501	Drum Sub-Assy, Rear Brake
42403	42431-97502	Drum Sub-Assy, Rear Brake
42423	42423-87401	Retainer, Rear Axle Bearing, Inner
42423	42423-97502	Retainer, Rear Axle Bearing, Inner
42424	42424-97501	Retainer, Rear Axle Bearing, Outer, Rh
42611	90049-12055	Bolt, Hub (For Rear Axle Rh)

OEM	Part name	Category
42311-B5010	Shaft, Rear Axle, Rh	Rear Axle Shaft & Hub ([12.2011 - ] (1112- ))
42312-B5010	Shaft, Rear Axle, Lh	Rear Axle Shaft & Hub ([12.2011 - ] (1112- ))
42423-87401	Retainer, Rear Axle Bearing, Inner	Rear Axle Shaft & Hub ([12.2011 - ] (1112- ))
42423-97502	Retainer, Rear Axle Bearing, Inner	Rear Axle Shaft & Hub ([12.2011 - ] (1112- ))
42424-97501	Retainer, Rear Axle Bearing, Outer, Rh	Rear Axle Shaft & Hub ([12.2011 - ] (1112- ))
42431-97501	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([12.2011 - ] (1112- ))
42431-97502	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([12.2011 - ] (1112- ))
90043-11291	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([12.2011 - ] (1112- ))
90043-11432	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([12.2011 - ] (1112- ))
90043-63402	Bearing (For Rear Axle Shaft Rh)	Rear Axle Shaft & Hub ([12.2011 - ] (1112- ))
90049-12055	Bolt, Hub (For Rear Axle Rh)	Rear Axle Shaft & Hub ([12.2011 - ] (1112- ))

Source: Public OEM parts-catalog data
Variants: 2 / 24
Category: 164
Collected: 2026-08-04
