S331M

Toyota PIXIS · 2011 · 2,215 parts · 164 categories

← Back to categories

2,215 items

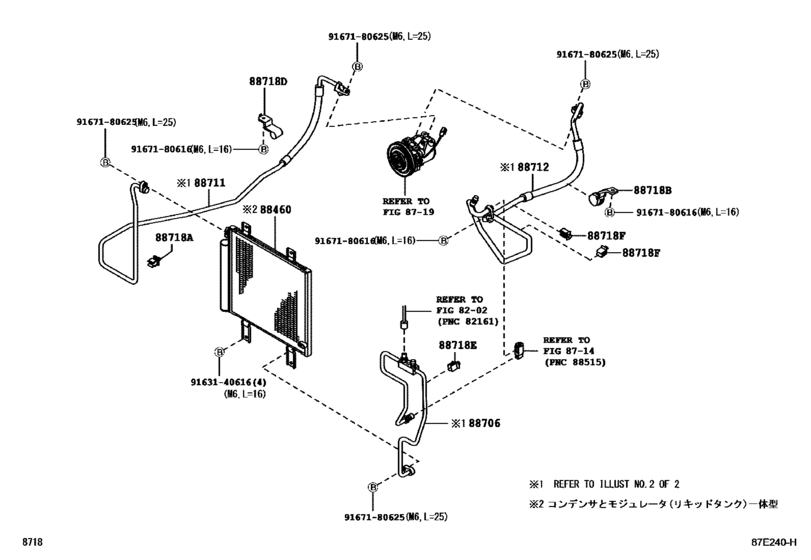

Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) 19

#	OEM	Part name
88374	88374-87601	Valve, Service, No.1
88375	88375-87603	Cap, Service Valve (For Cooler Pipe)
88375	88375-87601	Cap, Service Valve, No.1
88460	88460-B5040	Condenser Assy, Cooler
88706	88716-B5011	Pipe Sub-Assy, Liquid
88711	88711-B5110	Hose, Cooler Refrigerant Discharge, No.1
88711	15188-87402	Ring, O
88712	88712-B5070	Hose, Cooler Refrigerant Suction, No.1
88712	15188-87403	Ring, O(For Cooler Refrigerant Suction Hose)
88716	15188-87401	Ring, O
88718	88718-1A430	Clamp(For Cooler Refrigerant Pipe), No.1
88718	88718-B5010	Clamp(For Cooler Refrigerant Pipe), No.2
88718	88718-B5020	Clamp(For Cooler Refrigerant Pipe), No.4
88718	88718-87732	Clamp(For Cooler Refrigerant Pipe), No.5
88718	88718-87580	Clamp(For Cooler Refrigerant Hose), No.1
88719	88719-B2010	Switch, Pressure No.1
9163140616	91631-40616	Bolt(For Head To Camshaft Bearing Cap)
9167180616	91671-80616	BOLT FLANGE
9167180625	91671-80625	New Genuine Part

OEM	Part name	Category
15188-87401	Ring, O	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
15188-87402	Ring, O	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
15188-87403	Ring, O(For Cooler Refrigerant Suction Hose)	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
88374-87601	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
88375-87601	Cap, Service Valve, No.1	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
88375-87603	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
88460-B5040	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
88711-B5110	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
88712-B5070	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
88716-B5011	Pipe Sub-Assy, Liquid	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
88718-1A430	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
88718-87580	Clamp(For Cooler Refrigerant Hose), No.1	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
88718-87732	Clamp(For Cooler Refrigerant Pipe), No.5	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
88718-B5010	Clamp(For Cooler Refrigerant Pipe), No.2	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
88718-B5020	Clamp(For Cooler Refrigerant Pipe), No.4	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
88719-B2010	Switch, Pressure No.1	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
91631-40616	Bolt(For Head To Camshaft Bearing Cap)	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
91671-80616	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
91671-80625	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- ))
