Search › Model › S321M
S321M

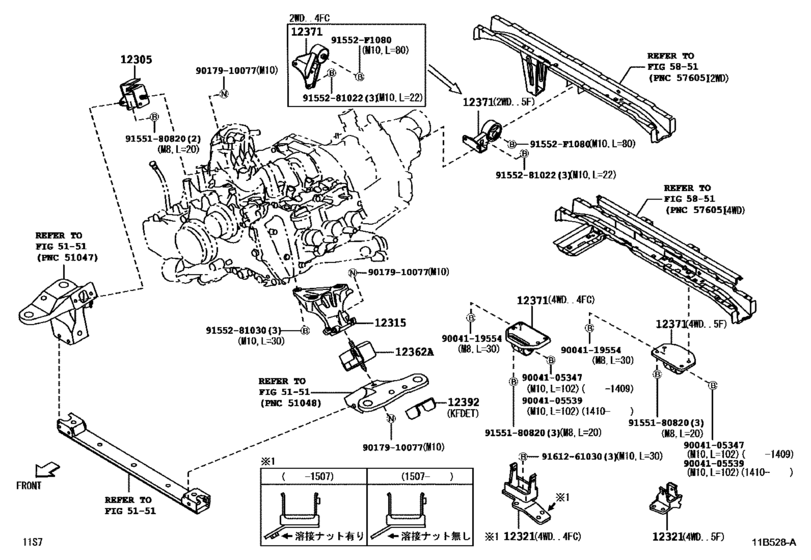

Mounting ([12.2011 - ] (1112- )) 14
| # | OEM | Part name |
|---|---|---|
| 12305 | 12361-B2010 | Insulator Sub-Assy, Engine Mounting, Rh |
| 12315 | 12315-B2080 | Bracket, Engine Mounting, Front No.1 Lh |
| 12362 | 12362-B2071 | Insulator, Engine Mounting, Front Lh |
| 12371 | 12371-B5100 | Insulator, Engine Mounting, Rear No.1 |
| 91552 | 91552-F1080 | BOLT FLANGE |
| 9004105347 | 90041-05347 | New Genuine Part |
| 9004105539 | 90041-05539 | New Genuine Part |
| 9004119554 | 90041-19554 | New Genuine Part |
| 9017910077 | 90179-10077 | Nut (For Front Lower Ball Joint Setting) |
| 9017910077 | 90179-10088 | Nut |
| 9155180820 | 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) |
| 9155281022 | 91552-81022 | New Genuine Part |
| 9155281030 | 91552-81030 | Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
| 9161261030 | 91612-61030 | Bolt (For Transmission Control Cable Bracket) |
| OEM | Part name | Category |
|---|---|---|
| 12315-B2080 | Bracket, Engine Mounting, Front No.1 Lh | Mounting ([12.2011 - ] (1112- )) |
| 12361-B2010 | Insulator Sub-Assy, Engine Mounting, Rh | Mounting ([12.2011 - ] (1112- )) |
| 12362-B2071 | Insulator, Engine Mounting, Front Lh | Mounting ([12.2011 - ] (1112- )) |
| 12371-B5100 | Insulator, Engine Mounting, Rear No.1 | Mounting ([12.2011 - ] (1112- )) |
| 90041-05347 | New Genuine Part | Mounting ([12.2011 - ] (1112- )) |
| 90041-05539 | New Genuine Part | Mounting ([12.2011 - ] (1112- )) |
| 90041-19554 | New Genuine Part | Mounting ([12.2011 - ] (1112- )) |
| 90179-10077 | Nut (For Front Lower Ball Joint Setting) | Mounting ([12.2011 - ] (1112- )) |
| 90179-10088 | Nut | Mounting ([12.2011 - ] (1112- )) |
| 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) | Mounting ([12.2011 - ] (1112- )) |
| 91552-81022 | New Genuine Part | Mounting ([12.2011 - ] (1112- )) |
| 91552-81030 | Bolt, Washer Based Head Hexagon (For Transfer Case Cover) | Mounting ([12.2011 - ] (1112- )) |
| 91552-F1080 | BOLT FLANGE | Mounting ([12.2011 - ] (1112- )) |
| 91612-61030 | Bolt (For Transmission Control Cable Bracket) | Mounting ([12.2011 - ] (1112- )) |
