S321M

Toyota PIXIS · 2011 · 2,028 parts · 156 categories

2,028 items

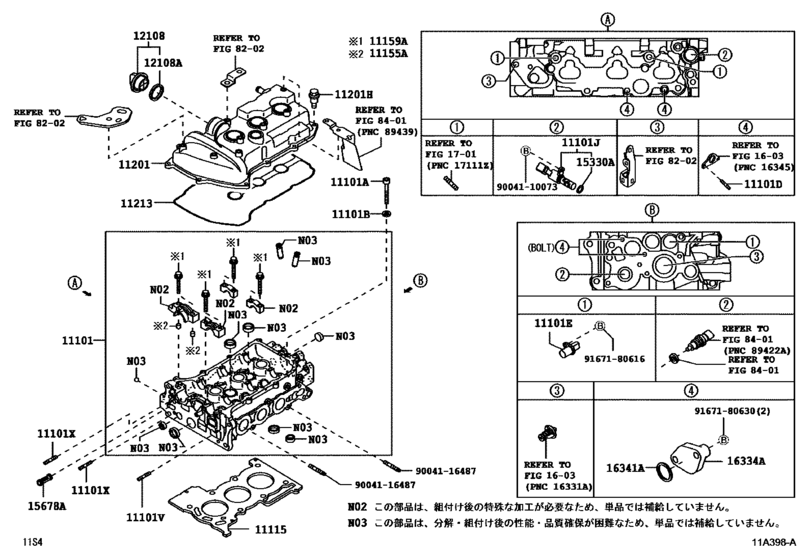

Cylinder Head ([04.2015 - ] (1504- )KFVE) 26

#	OEM	Part name
11101	11101-B2220	Head Sub-Assy, Cylinder
11101	90041-09258	Bolt(For Cylinder Head Set)
11101	90042-01637	Washer, Plate(For Cylinder Head Set)
11101	90041-26001	Bolt, Stud(For Water Outlet)
11101	90041-26006	Bolt, Stud(For Water Outlet)
11101	19311-B2011	Sensor, Cam Position
11101	15330-B2030	Valve Assy, Camshaft Timing Oil Control
11101	92132-81040	Bolt(For Cylinder Head Set Sub)
11101	92122-80630	Bolt(For Cylinder Head Set Sub)
11115	11115-B2034	Gasket, Cylinder Head
11155	90042-53010	Pin, Ring(For Camshaft Bearing Cap Setting)
11159	90041-19911	Bolt(For Head To Camshaft Bearing Cap)
11201	11201-B2101	Cover Sub-Assy, Cylinder Head
11201	91551-80620	Bolt
11213	11213-B2050	Gasket, Cylinder Head Cover
11213	11213-B2051	Gasket, Cylinder Head Cover
12108	12180-97401	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
15330	90043-01262	Ring, O
15678	15678-B2020	Filter, Oil Control Valve
16334	16334-B2020	Cover, Water Outlet Housing
16341	16341-B2040	Gasket, Water Outlet
9004110073	90041-10073	New Genuine Part
9004116487	90041-16487	Bolt, Stud(For Exhaust Manifold To Cylinder Head)
9167180616	91671-80616	BOLT FLANGE
9167180630	91671-80630	Bolt(For Cylinder Head Cover)

OEM	Part name	Category
11101-B2220	Head Sub-Assy, Cylinder	Cylinder Head ([04.2015 - ] (1504- )KFVE)
11115-B2034	Gasket, Cylinder Head	Cylinder Head ([04.2015 - ] (1504- )KFVE)
11201-B2101	Cover Sub-Assy, Cylinder Head	Cylinder Head ([04.2015 - ] (1504- )KFVE)
11213-B2050	Gasket, Cylinder Head Cover	Cylinder Head ([04.2015 - ] (1504- )KFVE)
11213-B2051	Gasket, Cylinder Head Cover	Cylinder Head ([04.2015 - ] (1504- )KFVE)
12180-97401	Cap Sub-Assy, Oil Filler	Cylinder Head ([04.2015 - ] (1504- )KFVE)
15330-B2030	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([04.2015 - ] (1504- )KFVE)
15678-B2020	Filter, Oil Control Valve	Cylinder Head ([04.2015 - ] (1504- )KFVE)
16334-B2020	Cover, Water Outlet Housing	Cylinder Head ([04.2015 - ] (1504- )KFVE)
16341-B2040	Gasket, Water Outlet	Cylinder Head ([04.2015 - ] (1504- )KFVE)
19311-B2011	Sensor, Cam Position	Cylinder Head ([04.2015 - ] (1504- )KFVE)
90041-09258	Bolt(For Cylinder Head Set)	Cylinder Head ([04.2015 - ] (1504- )KFVE)
90041-10073	New Genuine Part	Cylinder Head ([04.2015 - ] (1504- )KFVE)
90041-16487	Bolt, Stud(For Exhaust Manifold To Cylinder Head)	Cylinder Head ([04.2015 - ] (1504- )KFVE)
90041-19911	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([04.2015 - ] (1504- )KFVE)
90041-26001	Bolt, Stud(For Water Outlet)	Cylinder Head ([04.2015 - ] (1504- )KFVE)
90041-26006	Bolt, Stud(For Water Outlet)	Cylinder Head ([04.2015 - ] (1504- )KFVE)
90042-01637	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([04.2015 - ] (1504- )KFVE)
90042-53010	Pin, Ring(For Camshaft Bearing Cap Setting)	Cylinder Head ([04.2015 - ] (1504- )KFVE)
90043-01262	Ring, O	Cylinder Head ([04.2015 - ] (1504- )KFVE)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([04.2015 - ] (1504- )KFVE)
91551-80620	Bolt	Cylinder Head ([04.2015 - ] (1504- )KFVE)
91671-80616	BOLT FLANGE	Cylinder Head ([04.2015 - ] (1504- )KFVE)
91671-80630	Bolt(For Cylinder Head Cover)	Cylinder Head ([04.2015 - ] (1504- )KFVE)
92122-80630	Bolt(For Cylinder Head Set Sub)	Cylinder Head ([04.2015 - ] (1504- )KFVE)
92132-81040	Bolt(For Cylinder Head Set Sub)	Cylinder Head ([04.2015 - ] (1504- )KFVE)
