Search › Model › S321M
S321M

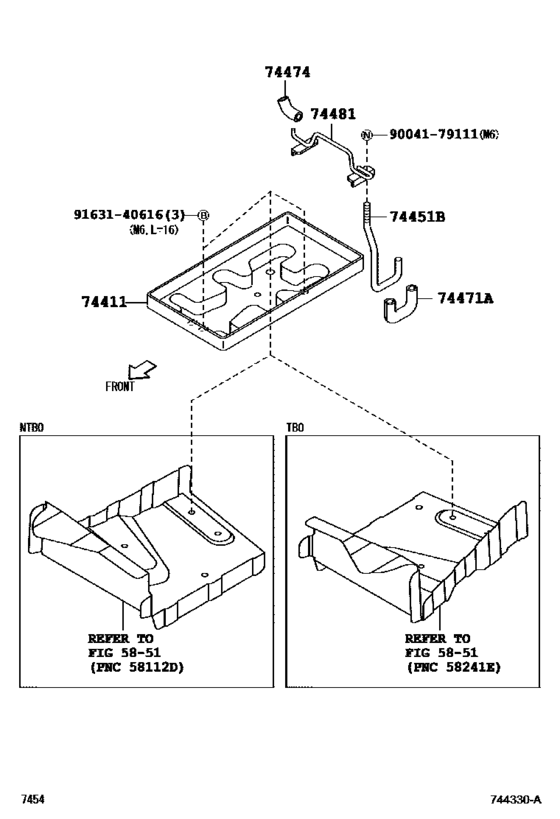

Battery Carrier ([12.2011 - ] (1112- )) 7
| # | OEM | Part name |
|---|---|---|
| 74411 | 74411-B5010 | Carrier, Battery |
| 74451 | 74451-B5010 | Bolt, Battery Clamp |
| 74471 | 74489-97501 | Pad, Battery Clamp |
| 74474 | 74423-97501 | Pad, Battery |
| 74481 | 74404-97501 | Clamp, Battery Hold Down |
| 9004179111 | 90041-79111 | Nut, Wing (For Battery Clamp Bolt) |
| 9163140616 | 91631-40616 | Bolt(For Head To Camshaft Bearing Cap) |
| OEM | Part name | Category |
|---|---|---|
| 74404-97501 | Clamp, Battery Hold Down | Battery Carrier ([12.2011 - ] (1112- )) |
| 74411-B5010 | Carrier, Battery | Battery Carrier ([12.2011 - ] (1112- )) |
| 74423-97501 | Pad, Battery | Battery Carrier ([12.2011 - ] (1112- )) |
| 74451-B5010 | Bolt, Battery Clamp | Battery Carrier ([12.2011 - ] (1112- )) |
| 74489-97501 | Pad, Battery Clamp | Battery Carrier ([12.2011 - ] (1112- )) |
| 90041-79111 | Nut, Wing (For Battery Clamp Bolt) | Battery Carrier ([12.2011 - ] (1112- )) |
| 91631-40616 | Bolt(For Head To Camshaft Bearing Cap) | Battery Carrier ([12.2011 - ] (1112- )) |
