S321M

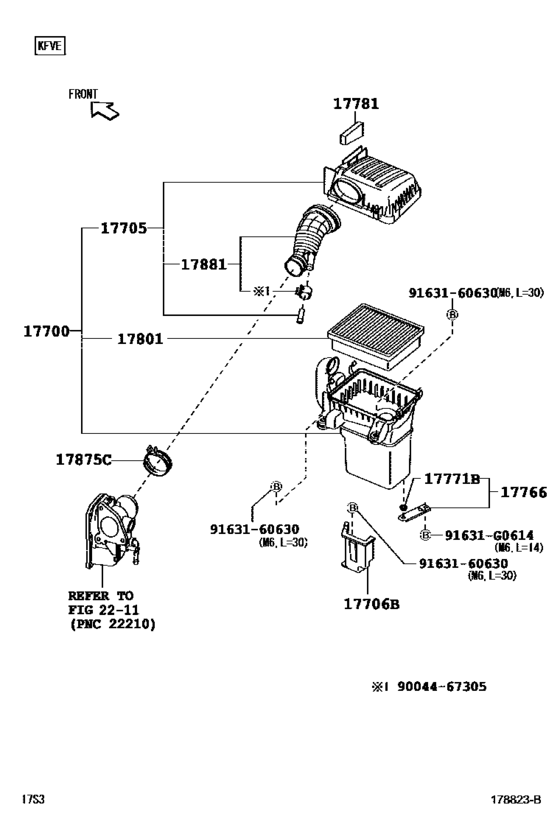

Air Cleaner ([04.2015 - ] (1504- )KFVE) 13
| # | OEM | Part name |
|---|---|---|
| 17700 | 17700-B5020 | Cleaner Assy, Air |
| 17705 | 17705-B5040 | Cap Sub-Assy, Air Cleaner |
| 17706 | 17799-B5010 | Retainer, Air Cleaner Inlet Pipe |
| 17766 | 17766-B5011 | Stay, Air Cleaner, No.2 |
| 17771 | 90044-80598 | Grommet |
| 17781 | 17781-B5010 | Seal, Air Cleaner Inlet |
| 17801 | 17801-B5010 | Element Sub-Assy, Air Cleaner Filter |
| 17875 | 90044-67613 | Clip(For Hose, No.1) |
| 17881 | 17881-B5030 | Hose, Air Cleaner, No.1 |
| 91631 | 91631-G0614 | BOT WWASHER |
| 9004467305 | 90044-67305 | Clamp Or Clip(For Air Hose, No.1) |
| 9163160630 | 91631-60630 | BOLT WWASHER |
| 9163160630 | 91631-B0630 | BOLT WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 17700-B5020 | Cleaner Assy, Air | Air Cleaner ([04.2015 - ] (1504- )KFVE) |
| 17705-B5040 | Cap Sub-Assy, Air Cleaner | Air Cleaner ([04.2015 - ] (1504- )KFVE) |
| 17766-B5011 | Stay, Air Cleaner, No.2 | Air Cleaner ([04.2015 - ] (1504- )KFVE) |
| 17781-B5010 | Seal, Air Cleaner Inlet | Air Cleaner ([04.2015 - ] (1504- )KFVE) |
| 17799-B5010 | Retainer, Air Cleaner Inlet Pipe | Air Cleaner ([04.2015 - ] (1504- )KFVE) |
| 17801-B5010 | Element Sub-Assy, Air Cleaner Filter | Air Cleaner ([04.2015 - ] (1504- )KFVE) |
| 17881-B5030 | Hose, Air Cleaner, No.1 | Air Cleaner ([04.2015 - ] (1504- )KFVE) |
| 90044-67305 | Clamp Or Clip(For Air Hose, No.1) | Air Cleaner ([04.2015 - ] (1504- )KFVE) |
| 90044-67613 | Clip(For Hose, No.1) | Air Cleaner ([04.2015 - ] (1504- )KFVE) |
| 90044-80598 | Grommet | Air Cleaner ([04.2015 - ] (1504- )KFVE) |
| 91631-60630 | BOLT WWASHER | Air Cleaner ([04.2015 - ] (1504- )KFVE) |
| 91631-B0630 | BOLT WWASHER | Air Cleaner ([04.2015 - ] (1504- )KFVE) |
| 91631-G0614 | BOT WWASHER | Air Cleaner ([04.2015 - ] (1504- )KFVE) |
