Search › Model › S27A
S27A

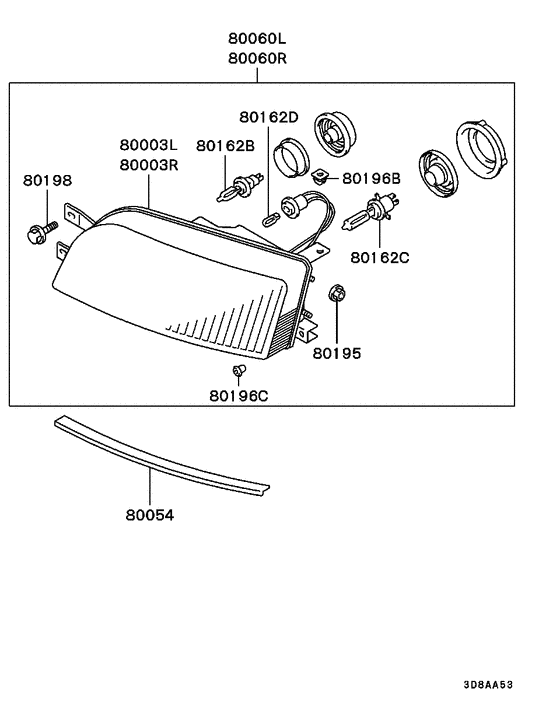

Headlamp 15
| # | OEM | Part name |
|---|---|---|
| 80003 | MR108387 | BODY, HEADLAMP, LH |
| 80003 | MR108388 | BODY, HEADLAMP, RH |
| 80054 | MR300079 | SEAL, HEADLAMP - Rubber |
| 80060 | MB912905 | HEADLAMP KIT, LH - 12v-60/55w,55w,5w,halogen |
| 80060 | MB912906 | HEADLAMP KIT, RH - 12v-60/55w,55w,5w,halogen |
| 80162 | MS820969 | BULB, HEADLAMP - 12v-55w,h3c |
| 80162 | MS820968 | BULB, HEADLAMP - 12v-60/55w,h4(hb2) |
| 80162 | MS820087 | BULB, HEADLAMP - 12v-5w |
| 80162 | MS820090 | BULB (12V, 5W) - 12v-5w |
| 80195 | MS440502 | NUT, FUEL TANK - Washer assembled,6 |
| 80196 | MB196738 | GROMMET, ENG IDLE CONTROL EQUIP - 5 |
| 80196 | MS480002 | GROMMET, HOOD LOCKING - Screw,5 |
| 80196 | MU810518 | GROMMET, FOG LAMP |
| 80198 | MS240179 | BOLT, FR BUMPER - Washer assembled,6x16 |
| 80198 | MS240581 | BOLT, BRAKE FLUID LINE - Washer assembled,6x16 |
| OEM | Part name | Category |
|---|---|---|
| MB196738 | GROMMET, ENG IDLE CONTROL EQUIP - 5 | Headlamp |
| MB912905 | HEADLAMP KIT, LH - 12v-60/55w,55w,5w,halogen | Headlamp |
| MB912906 | HEADLAMP KIT, RH - 12v-60/55w,55w,5w,halogen | Headlamp |
| MR108387 | BODY, HEADLAMP, LH | Headlamp |
| MR108388 | BODY, HEADLAMP, RH | Headlamp |
| MR300079 | SEAL, HEADLAMP - Rubber | Headlamp |
| MS240179 | BOLT, FR BUMPER - Washer assembled,6x16 | Headlamp |
| MS240581 | BOLT, BRAKE FLUID LINE - Washer assembled,6x16 | Headlamp |
| MS440502 | NUT, FUEL TANK - Washer assembled,6 | Headlamp |
| MS480002 | GROMMET, HOOD LOCKING - Screw,5 | Headlamp |
| MS820087 | BULB, HEADLAMP - 12v-5w | Headlamp |
| MS820090 | BULB (12V, 5W) - 12v-5w | Headlamp |
| MS820968 | BULB, HEADLAMP - 12v-60/55w,h4(hb2) | Headlamp |
| MS820969 | BULB, HEADLAMP - 12v-55w,h3c | Headlamp |
| MU810518 | GROMMET, FOG LAMP | Headlamp |
