Search › Model › S231E

S231E

Toyota SPARKY · 2000 · 2,884 parts · 155 categories

2,884 items

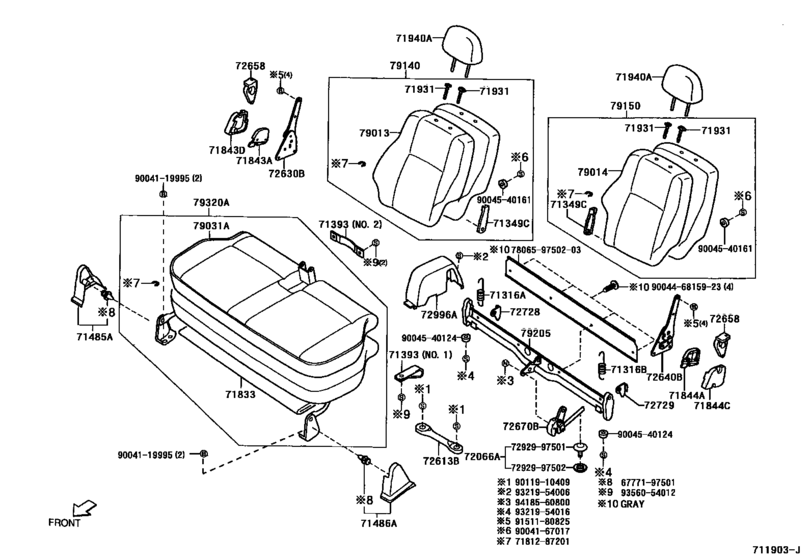

Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR) 55

#	OEM	Part name
71316	71462-97501	Spring, Torsion, No.1
71316	71463-97501	Spring, Torsion, No.2
71349	71349-97501	Cover, Rear Seat Back Hinge
71393	71393-97503	Band, Rear Seat Cushion
71393	71393-97501	Band, Rear Seat Cushion
71393	71393-97504	Band, Rear Seat Cushion
71485	71485-97501-03	Cover, Rear Seat Hinge, No.2 Rh
71486	71486-97501-03	Cover, Rear Seat Hinge, No.2 Lh
71833	71893-97505-03	Mat, Rear Seat Floor, Front
71843	72667-97501-03	Cover, Rear Seat Reclining, No.2 Rh
71843	72665-97502-03	Cover, Rear Seat Reclining, No.2 Rh
71844	72668-97501-03	Cover, Rear Seat Reclining, No.2 Lh
71844	72666-97502-03	Cover, Rear Seat Reclining, No.2 Lh
71931	71930-97202-23	Support, Front Seat Headrest
71931	71930-97202-B0	Support, Front Seat Headrest
71931	71931-97202-23	Support, Front Seat Headrest
71931	71931-97202-B0	Support, Front Seat Headrest
71940	71940-97524-01	Headrest Assy, Rear Seat
72066	72065-97501	Hook Sub-Assy,rear Seat Cushion Lock,rh
72613	72692-97501	Striker, Rear Seat Lock
72630	72630-97502	Adjuster Assy, Rear No.1 Seat, Inner Rh
72640	72640-97502	Adjuster Assy, Rear No.1 Seat, Inner Lh
72658	71317-97501	Knob, Rear Seat Handle
72658	71318-97501	Knob, Rear Seat Handle
72658	72658-97201-13	Knob, Rear Seat Handle
72658	72658-97201-23	Knob, Rear Seat Handle
72670	72670-97501	Lock Assy, Rear Seat Cushion, Rh
72728	72728-97501	Protector, Rear Seat Reclining, Inner Rh
72729	72729-97501	Protector, Rear Seat Reclining, Inner Lh
72996	72975-97501-03	Cover, Rear Seat Back
79013	71087-97511-01	Cover Sub-Assy, No.1 Seat Back, Rh
79014	71088-97522-01	Cover Sub-Assy, No.1 Seat Back, Lh
79031	71085-97508-01	Cover Sub-Assy, No.3 Seat Cushion
79140	71480-97512-01	Back Assy, No.1 Seat, Rh
79150	71490-97579-01	Back Assy, No.1 Seat, Lh
79205	71309-97503	Leg Sub-Assy, No.2 Seat
79205	71309-97504	Leg Sub-Assy, No.2 Seat
79320	71470-97539-01	Cushion Assy, No.3 Seat
6777197501	67771-97501	Weatherstrip, Back Door Trim, Rh
7181287201	71812-87201	Clip (For Front Seat Cushion Cover)
7292997501	72929-97501	Holder, Rear Seat Cushion Band
7292997502	72929-97502	Holder, Rear Seat Cushion Band
9004119995	90041-19995	New Genuine Part
9004167017	90041-67017	New Genuine Part
9004540124	90045-40124	New Genuine Part
9004540161	90045-40161	Cushion, Rear Seat
9011910409	90119-10409	New Genuine Part
9151180825	91511-80825	BOLTFLANGE
9321954006	93219-54006	New Genuine Part
9321954016	93219-54016	New Genuine Part
9356054012	93560-54012	Screw
9418560800	94185-60800	NUT
780659750203	78065-97502-03	Cover Sub-assy, Rear Seat Legrest
900446815923	90044-68159-23	Clip, Instrument Panel, No.1
900446815923	90044-68159-N1	Clip, Instrument Panel, No.1

OEM	Part name	Category
67771-97501	Weatherstrip, Back Door Trim, Rh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71085-97508-01	Cover Sub-Assy, No.3 Seat Cushion	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71087-97511-01	Cover Sub-Assy, No.1 Seat Back, Rh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71088-97522-01	Cover Sub-Assy, No.1 Seat Back, Lh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71309-97503	Leg Sub-Assy, No.2 Seat	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71309-97504	Leg Sub-Assy, No.2 Seat	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71317-97501	Knob, Rear Seat Handle	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71318-97501	Knob, Rear Seat Handle	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71349-97501	Cover, Rear Seat Back Hinge	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71393-97501	Band, Rear Seat Cushion	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71393-97503	Band, Rear Seat Cushion	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71393-97504	Band, Rear Seat Cushion	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71462-97501	Spring, Torsion, No.1	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71463-97501	Spring, Torsion, No.2	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71470-97539-01	Cushion Assy, No.3 Seat	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71480-97512-01	Back Assy, No.1 Seat, Rh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71485-97501-03	Cover, Rear Seat Hinge, No.2 Rh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71486-97501-03	Cover, Rear Seat Hinge, No.2 Lh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71490-97579-01	Back Assy, No.1 Seat, Lh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71812-87201	Clip (For Front Seat Cushion Cover)	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71893-97505-03	Mat, Rear Seat Floor, Front	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71930-97202-23	Support, Front Seat Headrest	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71930-97202-B0	Support, Front Seat Headrest	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71931-97202-23	Support, Front Seat Headrest	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71931-97202-B0	Support, Front Seat Headrest	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
71940-97524-01	Headrest Assy, Rear Seat	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72065-97501	Hook Sub-Assy,rear Seat Cushion Lock,rh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72630-97502	Adjuster Assy, Rear No.1 Seat, Inner Rh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72640-97502	Adjuster Assy, Rear No.1 Seat, Inner Lh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72658-97201-13	Knob, Rear Seat Handle	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72658-97201-23	Knob, Rear Seat Handle	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72665-97502-03	Cover, Rear Seat Reclining, No.2 Rh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72666-97502-03	Cover, Rear Seat Reclining, No.2 Lh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72667-97501-03	Cover, Rear Seat Reclining, No.2 Rh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72668-97501-03	Cover, Rear Seat Reclining, No.2 Lh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72670-97501	Lock Assy, Rear Seat Cushion, Rh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72692-97501	Striker, Rear Seat Lock	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72728-97501	Protector, Rear Seat Reclining, Inner Rh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72729-97501	Protector, Rear Seat Reclining, Inner Lh	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72929-97501	Holder, Rear Seat Cushion Band	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72929-97502	Holder, Rear Seat Cushion Band	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
72975-97501-03	Cover, Rear Seat Back	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
78065-97502-03	Cover Sub-assy, Rear Seat Legrest	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
90041-19995	New Genuine Part	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
90041-67017	New Genuine Part	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
90044-68159-23	Clip, Instrument Panel, No.1	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
90044-68159-N1	Clip, Instrument Panel, No.1	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
90045-40124	New Genuine Part	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
90045-40161	Cushion, Rear Seat	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
90119-10409	New Genuine Part	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
91511-80825	BOLTFLANGE	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
93219-54006	New Genuine Part	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
93219-54016	New Genuine Part	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
93560-54012	Screw	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)
94185-60800	NUT	Seat & Seat Track ([09.2000 - ] ﾘﾔｼ-ﾄ NO.2 ｼ-ﾄ (0009- )HIR)

Source: Public OEM parts-catalog data
Variants: 2 / 9
Category: 155
Collected: 2026-08-04
