Search › Model › S231E

S231E

Toyota SPARKY · 2000 · 2,884 parts · 155 categories

2,884 items

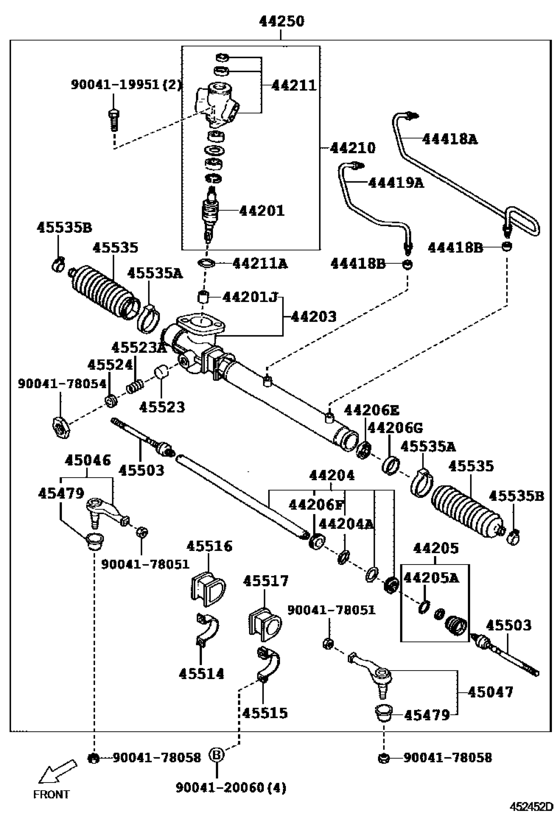

Front Steering Gear & Link ([09.2000 - ] (0009- )) 35

#	OEM	Part name
44201	44210-97503	Valve Sub-Assy, Power Steering Control
44201	44483-97501	Bearing(For Power Steering Control Valve Center)
44203	44203-97503	Housing Sub-Assy, Power Steering Rack
44204	44204-97501	Rack Sub-Assy, Power Steering
44204	44485-97201	Ring(For Rack Steering Piston)
44205	44205-97502	Stopper Sub-Assy, Cylinder End
44205	44485-97203	Ring(For Rack Steering Piston)
44206	44482-97202	Seal, Oil(For Power Steering Rack Bush)
44206	45523-97204	Spacer, No.1(For Power Steering Cylinder Tube)
44211	44022-97502	Housing, Control Valve
44211	44485-97204	Ring(For Power Steering Control Valve)
44250	44250-97503	Gear Assy, Power Steering(For Rack & Pinion)
44418	44418-97501	Tube, Steering Right Turn Pressure
44418	44492-97204	Seat, Union(For Power Steering Control Valve)
44419	44419-97501	Tube, Steering Left Turn Pressure
45046	45047-87510	End Sub-Assy, Tie Rod, Rh
45047	45046-87510	End Sub-Assy, Tie Rod, Lh
45479	45479-87508	Seal, Steering Link Joint Dust
45503	45503-97201	End Sub-Assy, Steering Rack
45514	45514-97502	Bracket, Steering Rack Housing, No.1
45515	45515-97502	Bracket, Steering Rack Housing, No.2
45516	45516-97503	Grommet, Steering Rack Housing, No.1
45517	45517-97502	Grommet, Steering Rack Housing, No.2
45523	45523-97203	Guide, Rack(For Steering Gear)
45523	45523-97402	Guide, Rack(For Steering Gear)
45523	90045-01799	Spring(For Steering Gear Rack Guide)
45524	45524-97201	Cap, Steering Rack Guide Spring
45535	45535-97202	Boot, Steering Rack, No.1
45535	45536-97201	Clamp(For Steering Rack Boot)
45535	90044-67481	Clip(For Steering Rack Boot)
9004119951	90041-19951	New Genuine Part
9004120060	90041-20060	New Genuine Part
9004178051	90041-78051	New Genuine Part
9004178054	90041-78054	New Genuine Part
9004178058	90041-78058	Nut, Lock

OEM	Part name	Category
44022-97502	Housing, Control Valve	Front Steering Gear & Link ([09.2000 - ] (0009- ))
44203-97503	Housing Sub-Assy, Power Steering Rack	Front Steering Gear & Link ([09.2000 - ] (0009- ))
44204-97501	Rack Sub-Assy, Power Steering	Front Steering Gear & Link ([09.2000 - ] (0009- ))
44205-97502	Stopper Sub-Assy, Cylinder End	Front Steering Gear & Link ([09.2000 - ] (0009- ))
44210-97503	Valve Sub-Assy, Power Steering Control	Front Steering Gear & Link ([09.2000 - ] (0009- ))
44250-97503	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([09.2000 - ] (0009- ))
44418-97501	Tube, Steering Right Turn Pressure	Front Steering Gear & Link ([09.2000 - ] (0009- ))
44419-97501	Tube, Steering Left Turn Pressure	Front Steering Gear & Link ([09.2000 - ] (0009- ))
44482-97202	Seal, Oil(For Power Steering Rack Bush)	Front Steering Gear & Link ([09.2000 - ] (0009- ))
44483-97501	Bearing(For Power Steering Control Valve Center)	Front Steering Gear & Link ([09.2000 - ] (0009- ))
44485-97201	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([09.2000 - ] (0009- ))
44485-97203	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([09.2000 - ] (0009- ))
44485-97204	Ring(For Power Steering Control Valve)	Front Steering Gear & Link ([09.2000 - ] (0009- ))
44492-97204	Seat, Union(For Power Steering Control Valve)	Front Steering Gear & Link ([09.2000 - ] (0009- ))
45046-87510	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([09.2000 - ] (0009- ))
45047-87510	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([09.2000 - ] (0009- ))
45479-87508	Seal, Steering Link Joint Dust	Front Steering Gear & Link ([09.2000 - ] (0009- ))
45503-97201	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([09.2000 - ] (0009- ))
45514-97502	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([09.2000 - ] (0009- ))
45515-97502	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([09.2000 - ] (0009- ))
45516-97503	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([09.2000 - ] (0009- ))
45517-97502	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([09.2000 - ] (0009- ))
45523-97203	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([09.2000 - ] (0009- ))
45523-97204	Spacer, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([09.2000 - ] (0009- ))
45523-97402	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([09.2000 - ] (0009- ))
45524-97201	Cap, Steering Rack Guide Spring	Front Steering Gear & Link ([09.2000 - ] (0009- ))
45535-97202	Boot, Steering Rack, No.1	Front Steering Gear & Link ([09.2000 - ] (0009- ))
45536-97201	Clamp(For Steering Rack Boot)	Front Steering Gear & Link ([09.2000 - ] (0009- ))
90041-19951	New Genuine Part	Front Steering Gear & Link ([09.2000 - ] (0009- ))
90041-20060	New Genuine Part	Front Steering Gear & Link ([09.2000 - ] (0009- ))
90041-78051	New Genuine Part	Front Steering Gear & Link ([09.2000 - ] (0009- ))
90041-78054	New Genuine Part	Front Steering Gear & Link ([09.2000 - ] (0009- ))
90041-78058	Nut, Lock	Front Steering Gear & Link ([09.2000 - ] (0009- ))
90044-67481	Clip(For Steering Rack Boot)	Front Steering Gear & Link ([09.2000 - ] (0009- ))
90045-01799	Spring(For Steering Gear Rack Guide)	Front Steering Gear & Link ([09.2000 - ] (0009- ))

Source: Public OEM parts-catalog data
Variants: 2 / 9
Category: 155
Collected: 2026-08-04
