Search › Model › S231E

S231E

Toyota SPARKY · 2000 · 2,884 parts · 155 categories

2,884 items

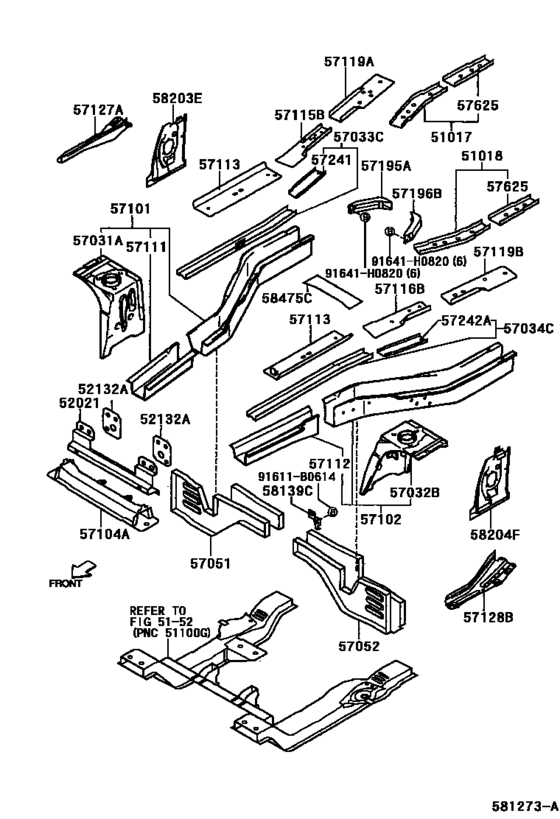

Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- )) 33

#	OEM	Part name
51017	51017-97502	Reinforcement Sub-Assy, Side Rail, No.1 Rh
51018	51018-97502	Reinforcement Sub-Assy, Side Rail, No.1 Lh
52021	52021-97501	Reinforcement Sub-Assy, Front Bumper
52132	52132-97501	Reinforcement, Front Bumper, No.2
57031	57031-97506	Reinforce Sub-Assy, Front Side Member, No.2 Rh
57032	57032-97506	Reinforcement Sub-Assy, Front Side Member, No.2 Lh
57033	57033-97503	Reinforce Sub-Assy, Front Side Member, No.3 Rh
57034	57034-97502	Reinforce Sub-Assy, Front Side Member, No.3 Lh
57051	57051-97503	Member Sub-Assy, Front Floor Cross, Rh
57052	57052-97503	Member Sub-Assy, Front Floor Cross, Lh
57101	57101-97514	Member Sub-Assy, Front Side, Rh
57102	57102-97512	Member Sub-Assy, Front Side, Lh
57104	57104-97503	Member Sub-Assy, Front Cross
57111	57111-97505	Member, Front Side, Rh
57112	57112-97504	Member, Front Side, Lh
57113	57113-97503	Extension, Front Side Member, Rh
57115	57115-97505	Plate, Front Side Member, No.1 Rh
57116	57106-97503	Plate, Front Side Member, No.1 Lh
57119	57119-97501	Plate, Front Side Member, Front Rh
57119	57118-97502	Plate, Front Side Member, Front Lh
57127	57127-97502	Reinforcement, Front Side Member, No.8 Rh
57128	57128-97502	Reinforcement, Front Side Member, No.8 Lh
57195	57195-97501	Reinforcement, Front Side Member, Front Rh
57196	57196-97501	Reinforcement, Front Side Member, Front Lh
57241	57245-97502	Reinforcement, Front Side Member, No.5 Rh
57242	57246-97502	Reinforcement, Front Side Member, No.5 Lh
57625	57625-97501	Reinforcement, Rear Floor Side Member, Rh
58139	58139-97502	Bracket, Harness Clamp
58203	58203-97504	Pillar, Center Body, Inner Lower Rh
58204	58204-97504	Pillar, Center Body, Inner Lower Lh
58475	57475-97501	Packing, Engin Sub Cover, No.3
91611	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
91641	91641-H0820	Bolt

OEM	Part name	Category
51017-97502	Reinforcement Sub-Assy, Side Rail, No.1 Rh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
51018-97502	Reinforcement Sub-Assy, Side Rail, No.1 Lh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
52021-97501	Reinforcement Sub-Assy, Front Bumper	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
52132-97501	Reinforcement, Front Bumper, No.2	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57031-97506	Reinforce Sub-Assy, Front Side Member, No.2 Rh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57032-97506	Reinforcement Sub-Assy, Front Side Member, No.2 Lh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57033-97503	Reinforce Sub-Assy, Front Side Member, No.3 Rh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57034-97502	Reinforce Sub-Assy, Front Side Member, No.3 Lh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57051-97503	Member Sub-Assy, Front Floor Cross, Rh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57052-97503	Member Sub-Assy, Front Floor Cross, Lh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57101-97514	Member Sub-Assy, Front Side, Rh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57102-97512	Member Sub-Assy, Front Side, Lh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57104-97503	Member Sub-Assy, Front Cross	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57106-97503	Plate, Front Side Member, No.1 Lh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57111-97505	Member, Front Side, Rh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57112-97504	Member, Front Side, Lh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57113-97503	Extension, Front Side Member, Rh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57115-97505	Plate, Front Side Member, No.1 Rh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57118-97502	Plate, Front Side Member, Front Lh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57119-97501	Plate, Front Side Member, Front Rh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57127-97502	Reinforcement, Front Side Member, No.8 Rh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57128-97502	Reinforcement, Front Side Member, No.8 Lh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57195-97501	Reinforcement, Front Side Member, Front Rh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57196-97501	Reinforcement, Front Side Member, Front Lh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57245-97502	Reinforcement, Front Side Member, No.5 Rh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57246-97502	Reinforcement, Front Side Member, No.5 Lh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57475-97501	Packing, Engin Sub Cover, No.3	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
57625-97501	Reinforcement, Rear Floor Side Member, Rh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
58139-97502	Bracket, Harness Clamp	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
58203-97504	Pillar, Center Body, Inner Lower Rh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
58204-97504	Pillar, Center Body, Inner Lower Lh	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
91641-H0820	Bolt	Front Floor Panel & Front Floor Member ([09.2000 - ] (0009- ))
