Search › Model › S221E

S221E

Toyota SPARKY · 2000 · 2,799 parts · 150 categories

2,799 items

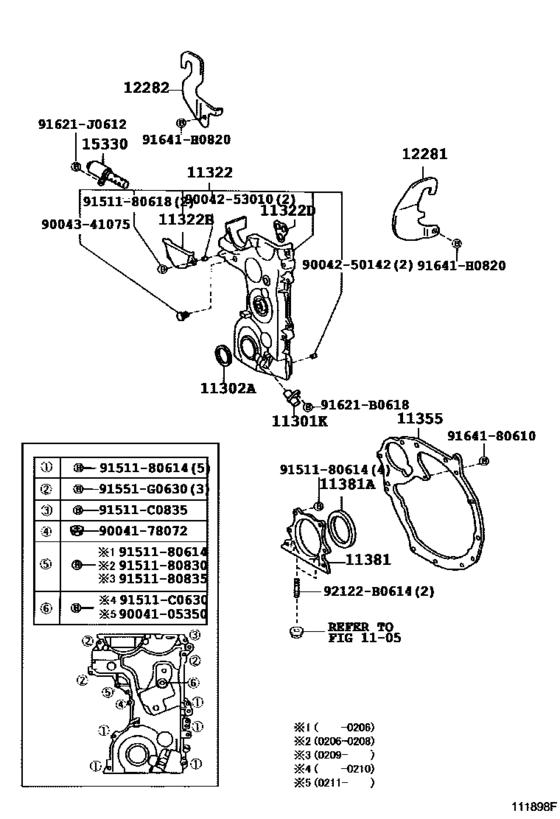

Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- )) 38

#	OEM	Part name
11301	19311-97401	Sensor, Crank Position
11302	90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)
11322	11310-97402	Cover Sub-Assy, Timing Chain Or Belt
11322	11310-B1081	Cover Sub-Assy, Timing Chain Or Belt
11322	91511-C0630	New Genuine Part
11322	91511-H0625	New Genuine Part
11322	94613-10601	Washer (For Primary Regulator Valve)
11322	90042-01771	New Genuine Part
11322	11310-97403	Cover Sub-Assy, Timing Chain Or Belt
11322	11310-97404	Cover Sub-Assy, Timing Chain Or Belt
11322	11322-97401	Cover, Timing Chain Or Belt, No.2
11322	11322-B1010	Cover, Timing Chain Or Belt, No.2
11322	11328-97401	Gasket, Timing Belt Cover, No.1
11322	11328-B1010	Gasket, Timing Gear Or Chain Cover
11355	11355-97402	Plate, Rear End
11381	11381-97401	Retainer, Engine Rear Oil Seal
11381	11381-97402	Retainer, Engine Rear Oil Seal
11381	90043-11292	Seal, Engine Rear Oil
12281	12281-97401	Hanger, Engine, No.1
12282	12282-97405	Hanger, Engine, No.2
15330	15330-97401	Valve Assy, Cam Timing Oil Control
91511	91511-C0835	Bolt(For Transaxle Case & Engine Setting)
91551	91551-G0630	New Genuine Part
91621	91621-B0618	New Genuine Part
91621	91651-B0620	New Genuine Part
91621	91621-J0612	BOLT W-WASHER
91641	91641-H0820	Bolt
92122	92122-B0614	Bolt, Stud(For Oil Strainer)
9004105350	90041-05350	New Genuine Part
9004178072	90041-78072	New Genuine Part
9004250142	90042-50142	Pin, Straight(For Timing Chain Cover)
9004253010	90042-53010	Pin, Ring(For Camshaft Bearing Cap Setting)
9004341075	90043-41075	Plug, Straight(For Timing Gear Cover)
9151180614	91511-80614	BOLT FLANGE
9151180618	91511-80618	New Genuine Part
9151180830	91511-80830	Bolt(For Alternator)
9151180835	91511-80835	Bolt(For Transaxle Case & Engine Setting)
9164180610	91641-80610	BOLT WWASHER

OEM	Part name	Category
11310-97402	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
11310-97403	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
11310-97404	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
11310-B1081	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
11322-97401	Cover, Timing Chain Or Belt, No.2	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
11322-B1010	Cover, Timing Chain Or Belt, No.2	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
11328-97401	Gasket, Timing Belt Cover, No.1	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
11328-B1010	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
11355-97402	Plate, Rear End	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
11381-97401	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
11381-97402	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
12281-97401	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
12282-97405	Hanger, Engine, No.2	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
15330-97401	Valve Assy, Cam Timing Oil Control	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
19311-97401	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
90041-05350	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
90041-78072	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
90042-01771	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
90042-50142	Pin, Straight(For Timing Chain Cover)	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
90042-53010	Pin, Ring(For Camshaft Bearing Cap Setting)	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
90043-11292	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
90043-41075	Plug, Straight(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
90311-35040	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
91511-80614	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
91511-80618	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
91511-80830	Bolt(For Alternator)	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
91511-80835	Bolt(For Transaxle Case & Engine Setting)	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
91511-C0630	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
91511-C0835	Bolt(For Transaxle Case & Engine Setting)	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
91511-H0625	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
91551-G0630	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
91621-B0618	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
91621-J0612	BOLT W-WASHER	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
91641-80610	BOLT WWASHER	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
91641-H0820	Bolt	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
91651-B0620	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
92122-B0614	Bolt, Stud(For Oil Strainer)	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
94613-10601	Washer (For Primary Regulator Valve)	Timing Gear Cover & Rear End Plate ([09.2000 - ] (0009- ))
