Search › Model › S221E

S221E

Toyota SPARKY · 2000 · 2,799 parts · 150 categories
S221E ×

← Back to categories

2,799 items

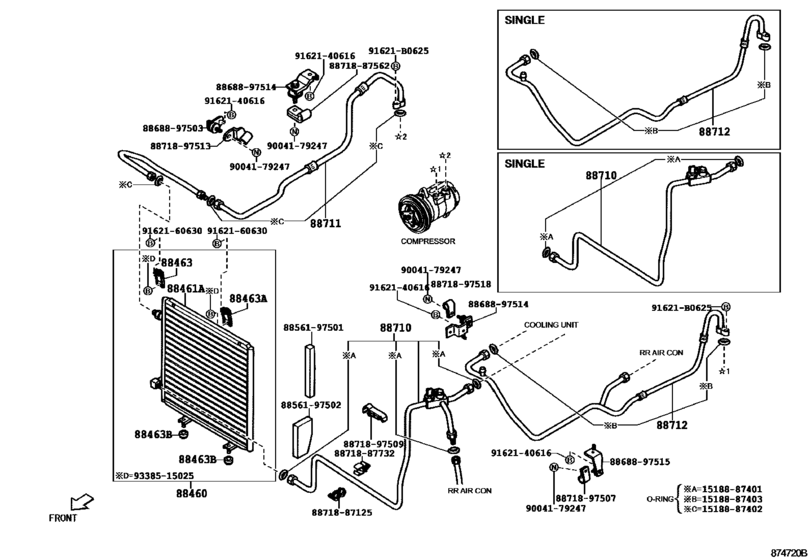

Heating & Air Conditioning - Cooler Piping ([09.2000 - ] ﾌﾛﾝﾄ (0009- )) 31
#OEMPart name
88460 88460-97510 Condenser Assy, Cooler
88460 88460-97519 Condenser Assy, Cooler
88461 88461-97501 Core, Cooler Condenser
88463 88463-97504 Bracket, Cooler Condenser, No.1
88463 88463-97505 Bracket, Cooler Condenser, No.2
88463 88463-97506 Bracket, Cooler Condenser, No.3
88710 88710-97505 Tube Assy, Air Conditioner
88710 88710-97507 Tube Assy, Air Conditioner
88711 88711-97508 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-97509 Hose, Cooler Refrigerant Suction, No.1
88712 88712-97510 Hose, Cooler Refrigerant Suction, No.1
91621 91621-B0625 New Genuine Part
1518887401 15188-87401 Ring, O
1518887402 15188-87402 Ring, O
1518887403 15188-87403 Ring, O(For Cooler Refrigerant Suction Hose)
8856197501 88561-97501 Cover, Cooler Unit
8856197502 88561-97502 Cover, Cooler Unit
8868897503 88688-97503 Bracket, Cooler Diaphragm
8868897514 88688-97514 Bracket, Cooler Diaphragm
8868897515 88688-97515 Bracket, Cooler Diaphragm
8871887125 88718-87125 Clamp(For Cooler Refrigerant Pipe), No.1
8871887562 88718-87562 Pipe, Cooler Refrigerant Suction, No.2
8871887732 88718-87732 Clamp(For Cooler Refrigerant Pipe), No.5
8871897507 88718-97507 Clamp(For Cooler Refrigerant Pipe), No.2
8871897509 88718-97509 Pipe, Cooler Refrigerant Suction, No.2
8871897513 88718-97513 Pipe, Cooler Refrigerant Suction, No.2
8871897518 88718-97518 Pipe, Cooler Refrigerant Suction, No.2
9004179247 90041-79247 New Genuine Part
9162140616 91621-40616 Step Cover Bolt
9162160630 91621-60630 New Genuine Part
9338515025 93385-15025 New Genuine Part
