S221E

Toyota SPARKY · 2000 · 2,799 parts · 150 categories
S221E ×

← Back to categories

2,799 items

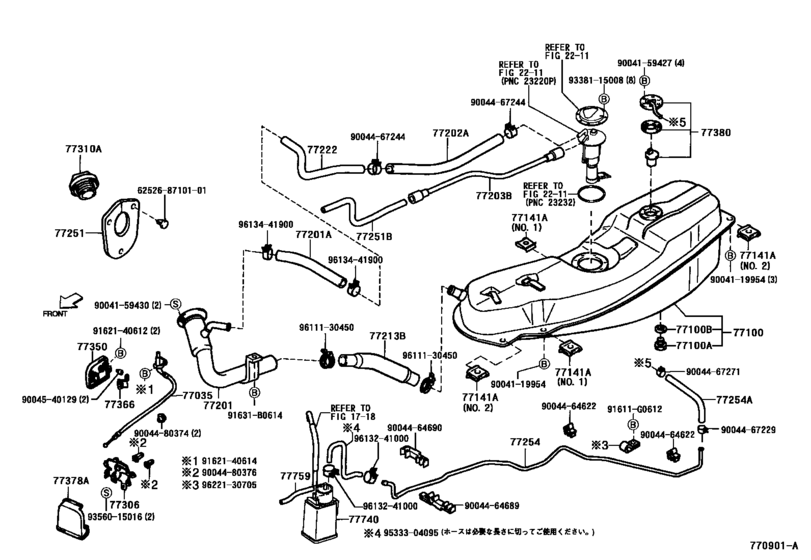

Fuel Tank & Tube ([09.2000 - ] (0009- )) 57
#OEMPart name
77035 77035-97503 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-97501 Tank Assy, Fuel
77100 90041-05177 Plug(For Fuel Tank)
77100 90044-30291 Gasket(For Fuel Tank)
77141 77141-87504 Reinforcement, Fuel Tank Flange
77141 77141-97501 Reinforcement, Fuel Tank Flange
77201 77201-97504 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-97505 Pipe Sub-Assy, Fuel Tank Inlet
77201 77269-97503 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77202 77269-97502 Hose, Fuel, No.1 (For Breather Tube)
77203 77203-97503 Tube Sub-Assy, Fuel Suction
77213 77213-97503 Hose, Fuel Tank To Filler Pipe
77222 77222-97501 Tube, Fuel Tank Breather, No.2
77222 77222-97502 Tube, Fuel Tank Breather, No.2
77251 77291-97501 Shield, Fuel Tank, Inlet, No.1
77251 77251-97506 Tube, Fuel Main
77251 77251-97504 Tube, Fuel Main
77254 77263-97503 Tube, Fuel Emission, No.1
77254 77263-97504 Tube, Fuel Emission, No.1
77254 77259-97501 Hose, Fuel, No.1 (For Emission Tube, No.1)
77306 77306-97501 Lever Sub-Assy, Fuel Lid Lock Open
77310 77310-97402 Cap Assy, Fuel Tank
77350 77350-97503-01 Lid Assy, Fuel Filler Opening
77350 77350-97503-03 Lid Assy, Fuel Filler Opening
77350 77350-97503-08 Lid Assy, Fuel Filler Opening
77350 77350-97503-09 Lid Assy, Fuel Filler Opening
77350 77350-97503-13 Lid Assy, Fuel Filler Opening
77350 77350-97503-18 Lid Assy, Fuel Filler Opening
77366 77366-87203 Spring, Fuel Filler Opening Lid Hinge
77378 77345-97501-13 Cover, Fuel Filler Opening Lid Lock
77380 77380-87501 Valve Assy, Fuel Cut Off
77740 77704-97501 Canister Assy, Charcoal
77759 77759-97501 Hose, Charcoal Canister
91611 91611-G0612 Bolt
91631 91631-B0614 BOLT WWASHER
9004119954 90041-19954 New Genuine Part
9004159427 90041-59427 New Genuine Part
9004159430 90041-59430 New Genuine Part
9004464622 90044-64622 Clamp, Brake Tube, No.3
9004464689 90044-64689 Clamp, Fuel Tube, No.1
9004464690 90044-64690 Clamp, Fuel Tube, No.1
9004467229 90044-67229 New Genuine Part
9004467244 90044-67244 Clamp Or Clip, Hose(For Water By-Pass Pipe)
9004467271 90044-67271 Clip(For Actuator Hose)
9004480374 90044-80374 New Genuine Part
9004480376 90044-80376 New Genuine Part
9004540129 90045-40129 Cushion(For Fuel Inlet Box Cover)
9162140612 91621-40612 BOLT W-WASHER
9162140614 91621-40614 BOLT
9338115008 93381-15008 SCREWWWASHER
9356015016 93560-15016 New Genuine Part
9533304095 95333-04095 Hose, Fuel
9611130450 96111-30450 New Genuine Part
9613241000 96132-41000 Clip, No.1(For Idle-Up Hose)
9613441900 96134-41900 Clip Or Clamp(For Ventilation Hose)
9622130705 96221-30705 Clamp, Brake Tube, No.4
625268710101 62526-87101-01 Clip, Quarter Window Garnish
