S221E

Toyota SPARKY · 2000 · 2,799 parts · 150 categories
S221E ×

← Back to categories

2,799 items

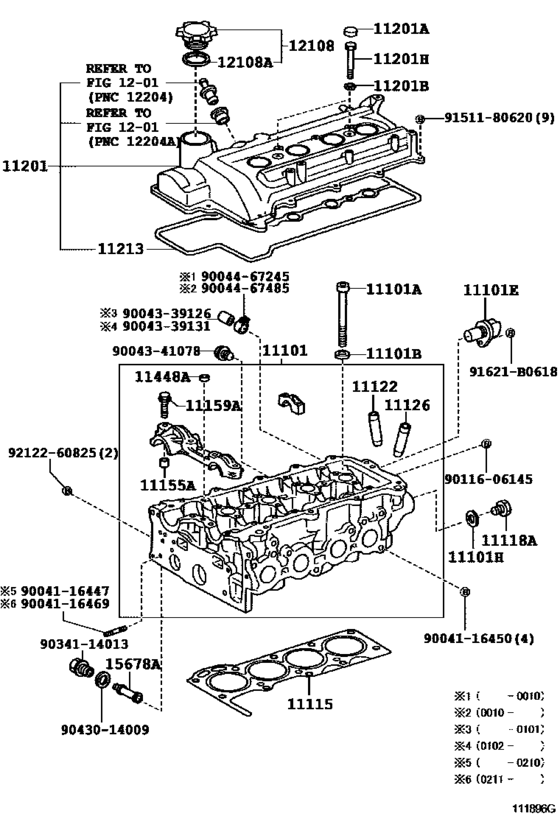

Cylinder Head ([09.2000 - ] (0009- )) 38
#OEMPart name
11101 11101-97408 Head Sub-Assy, Cylinder
11101 11101-97416 Head Sub-Assy, Cylinder
11101 90041-10045 Bolt(For Cylinder Head Set)
11101 90910-02143 Bolt(For Cylinder Head Set)
11101 90042-01637 Washer, Plate(For Cylinder Head Set)
11101 90919-05024 Sensor, Cam Position
11101 90430-12221 Gasket
11115 11115-97402 Gasket, Cylinder Head
11118 90043-41077 Plug, W/head Straight Screw, No.1
11122 11122-21010 Bush, Intake Valve Guide
11126 11123-21010 Bush, Intake Valve Guide
11155 90042-53010 Pin, Ring(For Camshaft Bearing Cap Setting)
11159 90041-19911 Bolt(For Head To Camshaft Bearing Cap)
11201 11201-97406 Cover Sub-Assy, Cylinder Head
11201 90179-06036 Nut, Cap(For Cylinder Head Cover)
11201 90179-06299 Nut, Wire Adjusting, No.1
11201 90210-06013 Washer, Seal(For Cylinder Head Cover)
11201 90041-05272 Bolt(For Cylinder Head Cover)
11213 11213-97401 Gasket, Cylinder Head Cover
11448 11448-87201 Orifice, Cylinder Block Oil
12108 12180-97401 Cap Sub-Assy, Oil Filler
12108 90430-37140 Gasket(For Oil Filler Cap)
15678 15678-21010 Filter, Oil Control Valve
91621 91621-B0618 New Genuine Part
91621 91651-B0620 New Genuine Part
9004116447 90041-16447 New Genuine Part
9004116450 90041-16450 Bolt, Stud(For Manifold To Cylinder Head)
9004116469 90041-16469 New Genuine Part
9004339126 90043-39126 New Genuine Part
9004339126 90043-39131 New Genuine Part
9004341078 90043-41078 Ball No.1(For Cylinder Head)
9004467245 90044-67245 Clip(For Water By-Pass Hose No.2)
9004467245 90044-67485 Clip(For Water By-Pass Hose No.2)
9011606145 90116-06145 Bolt, Stud(For Oil Pan)
9034114013 90341-14013 Plug, W/head Taper Screw, No.1
9043014009 90430-14009 Gasket(For Cylinder Head Screw Plug)
9151180620 91511-80620 Direct
9212260825 92122-60825 Bolt, Stud(For Manifold To Carburetor)
