Search › Model › S211U

S211U

Toyota PIXIS · 2011 · 2,254 parts · 145 categories

2,254 items

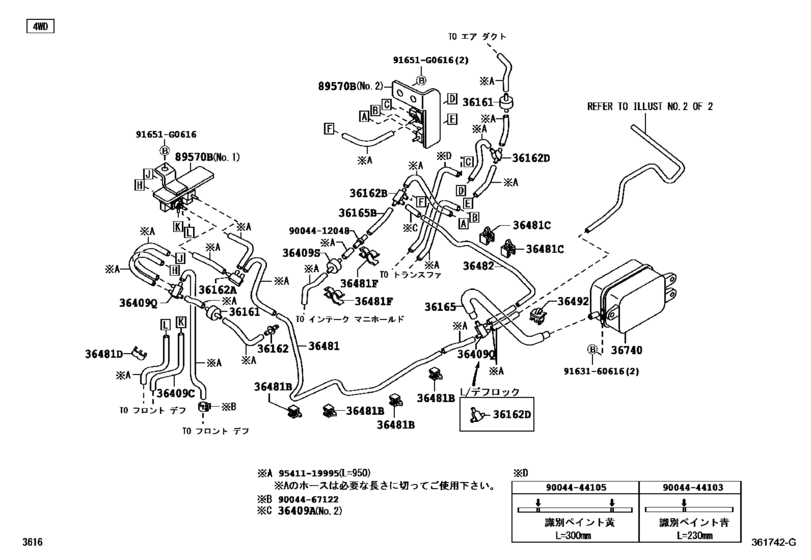

Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211) 38

#	OEM	Part name
36161	90048-24010	Filter Assy, Air(For Front)
36162	90044-12061	Way, 2(For Front Check Valve)
36162	90044-13034	Way, 3(For Air Hose)
36162	90044-14016	Way, 4(For Transfer Vacuum)
36162	90044-13053	Way, 3(For Hot Start Valve)
36165	90044-48543	Hose, Tank Vacuum
36165	44750-B5110	Hose(Check Valve, No.2)
36165	90044-46727	Hose, Flexible(Vsv)
36168	42599-B5010	Hose, Flexible
36168	90049-22157	Hose, Flexible
36409	90044-48198	Hose (For Vacuum Tube)
36409	95411-19995	Hose, Vaccum
36409	90999-92004	Hose, Vacuum, No.1 (For Front Drive Shift)
36409	90044-14015	Way, 4(For Transfer Vacuum)
36409	90048-20008	Valve, Check, No.1
36409	90044-64386	Clamp, Vacuum Tube
36480	90044-65038	Clamp (For Vacuum Check Valve)
36481	36481-97502	Tube, Front Drive Vacuum, No.1
36481	90044-64826	Clamp, Front Drive Vacuum Tube, No.1
36481	90044-64108	Clamp(For Vacuum Hose)
36481	90044-64168	Clamp, No.3(For Transfer Vacuum)
36481	90044-64758	Clamp, Front Drive Vacuum Tube, No.2
36482	36482-97502	Tube, Front Drive Vacuum, No.2
36492	90044-64687	Clamp, Front Drive Vacuum Tube, No.1
36740	36751-97501	Tank Assy, Transfer Vacuum
41485	41485-B5010	Tube, Differential Lock Clutch Pressure Apply
41485	41485-B5020	Tube, Differential Lock Clutch Pressure Apply, No.2
89570	89570-97508	Valve Assy, Vacuum Switching
89570	89570-97509	Valve Assy, Vacuum Switching
89570	89570-97510	Valve Assy, Vacuum Switching
91651	91651-G0616	BOLT WWASHER
9004412048	90044-12048	New Genuine Part
9004444103	90044-44103	New Genuine Part
9004444105	90044-44105	New Genuine Part
9004467122	90044-67122	Clip(For Intake Manifold)
9004523007	90045-23007	Ring, E(For Clutch Release Cable)
9163160616	91631-60616	BOLT WWASHER
9163160616	91631-B0616	BOLT WWASHER

OEM	Part name	Category
36481-97502	Tube, Front Drive Vacuum, No.1	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
36482-97502	Tube, Front Drive Vacuum, No.2	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
36751-97501	Tank Assy, Transfer Vacuum	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
41485-B5010	Tube, Differential Lock Clutch Pressure Apply	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
41485-B5020	Tube, Differential Lock Clutch Pressure Apply, No.2	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
42599-B5010	Hose, Flexible	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
44750-B5110	Hose(Check Valve, No.2)	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
89570-97508	Valve Assy, Vacuum Switching	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
89570-97509	Valve Assy, Vacuum Switching	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
89570-97510	Valve Assy, Vacuum Switching	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-12048	New Genuine Part	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-12061	Way, 2(For Front Check Valve)	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-13034	Way, 3(For Air Hose)	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-13053	Way, 3(For Hot Start Valve)	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-14015	Way, 4(For Transfer Vacuum)	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-14016	Way, 4(For Transfer Vacuum)	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-44103	New Genuine Part	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-44105	New Genuine Part	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-46727	Hose, Flexible(Vsv)	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-48198	Hose (For Vacuum Tube)	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-48543	Hose, Tank Vacuum	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-64108	Clamp(For Vacuum Hose)	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-64168	Clamp, No.3(For Transfer Vacuum)	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-64386	Clamp, Vacuum Tube	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-64687	Clamp, Front Drive Vacuum Tube, No.1	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-64758	Clamp, Front Drive Vacuum Tube, No.2	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-64826	Clamp, Front Drive Vacuum Tube, No.1	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-65038	Clamp (For Vacuum Check Valve)	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90044-67122	Clip(For Intake Manifold)	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90045-23007	Ring, E(For Clutch Release Cable)	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90048-20008	Valve, Check, No.1	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90048-24010	Filter Assy, Air(For Front)	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90049-22157	Hose, Flexible	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
90999-92004	Hose, Vacuum, No.1 (For Front Drive Shift)	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
91631-60616	BOLT WWASHER	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
91631-B0616	BOLT WWASHER	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
91651-G0616	BOLT WWASHER	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
95411-19995	Hose, Vaccum	Transfer Vacuum Piping ([12.2011 - ] 4WD (1112- )S211)
