Search › Model › S211U

S211U

Toyota PIXIS · 2011 · 2,254 parts · 145 categories

2,254 items

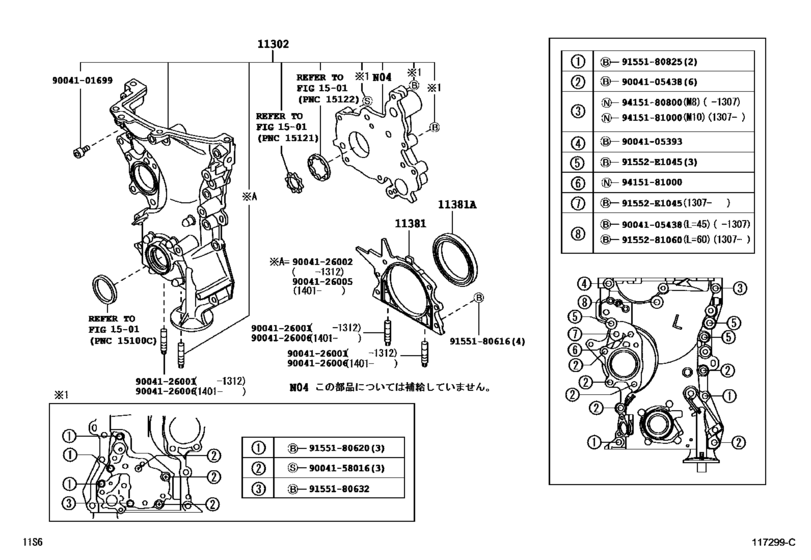

Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- )) 22

#	OEM	Part name
0	91552-E1045	New Genuine Part
11302	11310-B2083	Cover Sub-Assy, Timing Chain Or Belt
11302	11310-B2084	Cover Sub-Assy, Timing Chain Or Belt
11302	11310-B2085	Cover Sub-Assy, Timing Chain Or Belt
11381	11381-B2030	Retainer, Engine Rear Oil Seal
11381	90043-11364	Seal, Engine Rear Oil
11381	90043-11434	Seal, Engine Rear Oil
9004101699	90041-01699	New Genuine Part
9004105393	90041-05393	New Genuine Part
9004105438	90041-05438	New Genuine Part
9004126001	90041-26001	Bolt, Stud(For Water Outlet)
9004126001	90041-26006	Bolt, Stud(For Water Outlet)
9004126002	90041-26002	Bolt, Stud(For Timing Gear Cover)
9004126002	90041-26005	Bolt, Stud(For Timing Gear Cover)
9004158016	90041-58016	New Genuine Part
9155180616	91551-80616	BOLT FLANGE
9155180620	91551-80620	Bolt
9155180632	91551-80632	Bolt(For Head To Camshaft Bearing Cap)
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)
9155281060	91552-81060	Bolt, No.3(For Alternator)
9415180800	94151-80800	Nut (For Transmission Control Cable)
9415181000	94151-81000	NUT FLANGE

OEM	Part name	Category
11310-B2083	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
11310-B2084	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
11310-B2085	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
11381-B2030	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
90041-01699	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
90041-05393	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
90041-05438	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
90041-26001	Bolt, Stud(For Water Outlet)	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
90041-26002	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
90041-26005	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
90041-26006	Bolt, Stud(For Water Outlet)	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
90041-58016	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
90043-11364	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
90043-11434	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
91551-80616	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
91551-80620	Bolt	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
91551-80632	Bolt(For Head To Camshaft Bearing Cap)	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
91551-80825	Bolt(For Cylinder Head Set Sub)	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
91552-81060	Bolt, No.3(For Alternator)	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
91552-E1045	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
94151-80800	Nut (For Transmission Control Cable)	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))
94151-81000	NUT FLANGE	Timing Gear Cover & Rear End Plate ([12.2011 - ] (1112- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 145
Collected: 2026-08-04
