Search › Model › S211U

S211U

Toyota PIXIS · 2011 · 2,254 parts · 145 categories

← Back to categories

2,254 items

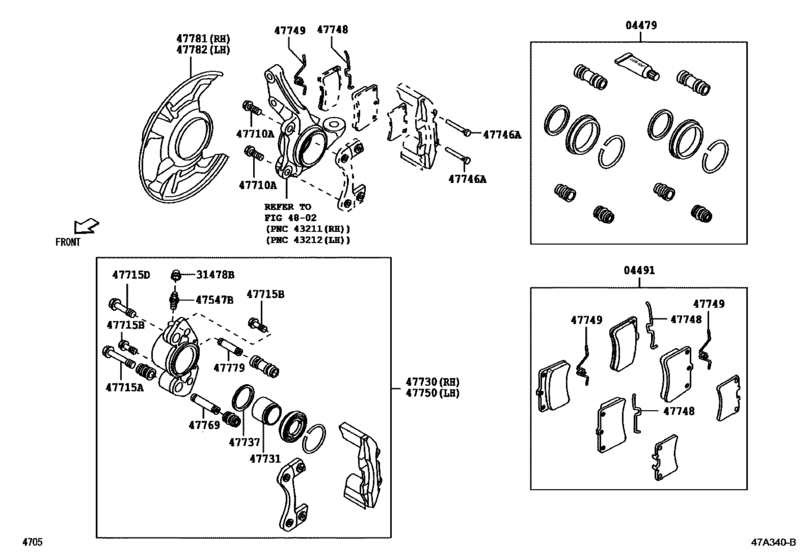

Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- )) 19

#	OEM	Part name
4479	04478-B5020	Cylinder Kit, Disc Brake, Front
4491	04465-B5020	Pad Kit, Disc Brake, Front
4491	04465-B5021	Pad Kit, Disc Brake, Front
31478	47548-87501	Cap, Bleeder Plug(For Front Disc Brake)
47547	47547-87206	Plug, Bleeder(For Front Disc Brake)
47710	90041-05176	Bolt, Hexagon(For Front Disc Brake Caliper)
47715	47715-97501	Pin, Front Disc Brake Cylinder Slide
47715	90041-01362	Bolt(For Front Disc Brake Cylinder Slide)
47715	47715-97204	Pin, Front Disc Brake Cylinder Slide
47730	47730-B5011	Cylinder Assy, Front Disc Brake, Rh
47731	47731-B5010	Piston, Front Disc Brake
47737	47737-97202	Seal, Front Disc Brake Cylinder Piston
47746	90042-40149	Pin, W/hole(For Disc Brake Pad, Front)
47748	47748-87501	Spring, Anti-Rattle, No.1(For Front Disc Brake)
47749	47749-87501	Clip, Pin Hold
47750	47750-B5011	Cylinder Assy, Disc Brake, Lh
47769	47769-B5010	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47779	47779-87202	Bush, Cylinder Slide, No.2(For Front Disc Brake)
47781	47781-97503	Cover, Disc Brake Dust, Front Rh

OEM	Part name	Category
04465-B5020	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
04465-B5021	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
04478-B5020	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
47547-87206	Plug, Bleeder(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
47548-87501	Cap, Bleeder Plug(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
47715-97204	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
47715-97501	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
47730-B5011	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
47731-B5010	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
47737-97202	Seal, Front Disc Brake Cylinder Piston	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
47748-87501	Spring, Anti-Rattle, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
47749-87501	Clip, Pin Hold	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
47750-B5011	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
47769-B5010	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
47779-87202	Bush, Cylinder Slide, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
47781-97503	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
90041-01362	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
90041-05176	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))
90042-40149	Pin, W/hole(For Disc Brake Pad, Front)	Front Disc Brake Caliper & Dust Cover ([12.2011 - ] (1112- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 145
Collected: 2026-08-04
