S211U

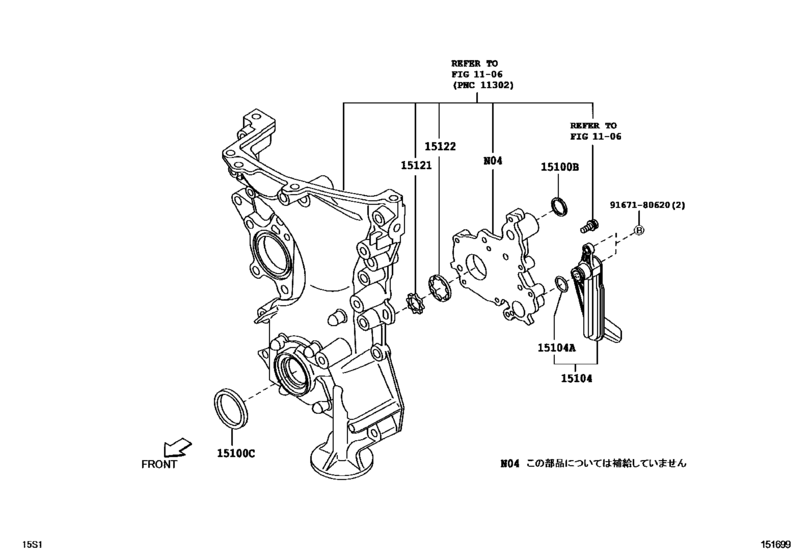

Engine Oil Pump ([12.2011 - ] (1112- )) 8
| # | OEM | Part name |
|---|---|---|
| 15100 | 90043-01325 | Ring, O(For Oil Pump) |
| 15100 | 90043-11371 | Seal(For Oil Pump) |
| 15100 | 90043-11435 | Seal(For Oil Pump) |
| 15104 | 15104-B2021 | Strainer Sub-Assy, Oil |
| 15104 | 90043-01324 | Ring, O(For Oil Strainer) |
| 15121 | 15121-B2011 | Gear, Oil Pump Drive |
| 15122 | 15122-B2011 | Gear, Oil Pump Driven |
| 9167180620 | 91671-80620 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 15104-B2021 | Strainer Sub-Assy, Oil | Engine Oil Pump ([12.2011 - ] (1112- )) |
| 15121-B2011 | Gear, Oil Pump Drive | Engine Oil Pump ([12.2011 - ] (1112- )) |
| 15122-B2011 | Gear, Oil Pump Driven | Engine Oil Pump ([12.2011 - ] (1112- )) |
| 90043-01324 | Ring, O(For Oil Strainer) | Engine Oil Pump ([12.2011 - ] (1112- )) |
| 90043-01325 | Ring, O(For Oil Pump) | Engine Oil Pump ([12.2011 - ] (1112- )) |
| 90043-11371 | Seal(For Oil Pump) | Engine Oil Pump ([12.2011 - ] (1112- )) |
| 90043-11435 | Seal(For Oil Pump) | Engine Oil Pump ([12.2011 - ] (1112- )) |
| 91671-80620 | New Genuine Part | Engine Oil Pump ([12.2011 - ] (1112- )) |
