Search › Model › S211U

S211U

Toyota PIXIS · 2011 · 2,254 parts · 145 categories

2,254 items

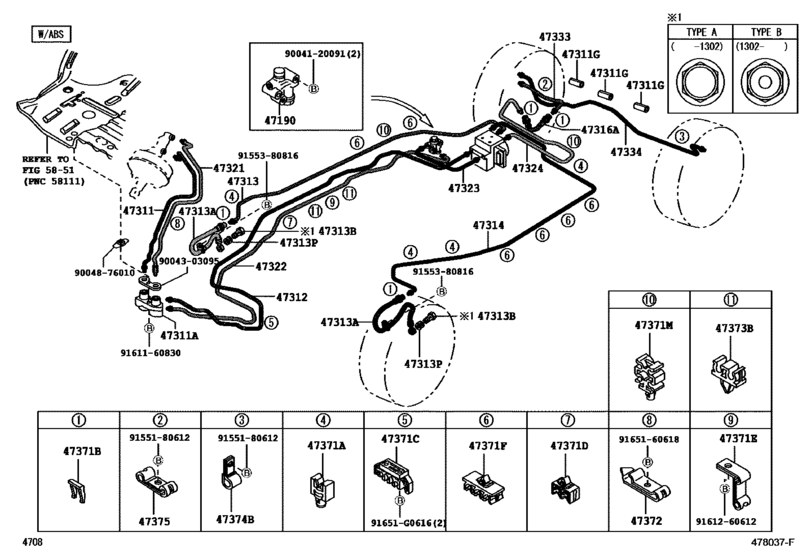

Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308)) 54

#	OEM	Part name
47190	47150-97503	Valve Assy, Proportioning & By-Pass
47190	47150-B5010	Valve Assy, Proportioning & By-Pass
47190	47190-97507	Valve Assy, Proportioning & By-Pass
47311	47311-B5020	Tube, Front Brake, No.1
47311	47311-B5030	Tube, Front Brake, No.1
47311	47311-B5050	Tube, Front Brake, No.1
47311	90044-14026	Way(For Front Brake Tube)
47311	90044-46059	Hose, Flexible(For Brake Tube)
47312	47312-97512	Tube, Front Brake, No.2
47312	47312-B5030	Tube, Front Brake, No.2
47312	47312-B5090	Tube, Front Brake, No.2
47313	47313-97505	Tube, Front Brake, No.3
47313	47313-B5030	Tube, Front Brake, No.3
47313	90049-22178	Hose, Flexible, No.1(For Front)
47313	90044-01079	Bolt, Union(For Front Flexible Hose)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47313	47389-97201	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47314	47314-97503	Tube, Front Brake, No.4
47314	47314-97506	Tube, Front Brake, No.4
47316	90049-22197	Hose, Flexible(For Rear Brake Tube)
47321	47321-B5020	Tube, Rear Brake, No.1
47321	47321-B5030	Tube, Rear Brake, No.1
47321	47321-B5050	Tube, Rear Brake, No.1
47322	47322-97511	Tube, Rear Brake, No.2
47322	47322-B5040	Tube, Rear Brake, No.2
47322	47322-B5070	Tube, Rear Brake, No.2
47323	47323-97504	Tube, Rear Brake, No.3
47323	47323-B5020	Tube, Rear Brake, No.3
47323	47323-B5050	Tube, Rear Brake, No.3
47324	47324-97501	Tube, Rear Brake, No.4
47333	47333-97503	Tube, Rear Brake, No.12
47334	47334-B5010	Tube, Rear Brake, No.13
47371	90044-64826	Clamp, Front Drive Vacuum Tube, No.1
47371	90044-65441	Clamp, Brake Tube, No.6
47371	90044-65520	Clamp, Brake Tube, No.7
47371	90044-61718	Clamp, Brake Tube, No.8
47371	90044-61850	Clamp, Brake Tube, No.9
47371	90044-64742	Clamp (For Front Drive Vacuum Tube)
47371	90044-65521	Clamp, Brake Tube, No.13
47372	90044-61287	Clamp, Brake Tube, No.2
47373	90044-64622	Clamp, Brake Tube, No.3
47374	96221-30705	Clamp, Brake Tube, No.4
47375	90044-61363	Clamp, Brake Tube, No.5
91651	91651-G0616	BOLT WWASHER
9004120091	90041-20091	New Genuine Part
9004303095	90043-03095	New Genuine Part
9004876010	90048-76010	New Genuine Part
9155180612	91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)
9155380816	91553-80816	Bolt (For Transmission Control Cable Bracket)
9161160830	91611-60830	Bolt(For Clutch Release Cylinder Setting)
9161260612	91612-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161260612	91611-G0612	Bolt
9165160618	91651-60618	Bolt(For Oil Receiver Pipe)

OEM	Part name	Category
47150-97503	Valve Assy, Proportioning & By-Pass	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47150-B5010	Valve Assy, Proportioning & By-Pass	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47190-97507	Valve Assy, Proportioning & By-Pass	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47311-B5020	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47311-B5030	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47311-B5050	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47312-97512	Tube, Front Brake, No.2	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47312-B5030	Tube, Front Brake, No.2	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47312-B5090	Tube, Front Brake, No.2	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47313-97505	Tube, Front Brake, No.3	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47313-B5030	Tube, Front Brake, No.3	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47314-97503	Tube, Front Brake, No.4	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47314-97506	Tube, Front Brake, No.4	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47321-B5020	Tube, Rear Brake, No.1	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47321-B5030	Tube, Rear Brake, No.1	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47321-B5050	Tube, Rear Brake, No.1	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47322-97511	Tube, Rear Brake, No.2	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47322-B5040	Tube, Rear Brake, No.2	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47322-B5070	Tube, Rear Brake, No.2	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47323-97504	Tube, Rear Brake, No.3	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47323-B5020	Tube, Rear Brake, No.3	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47323-B5050	Tube, Rear Brake, No.3	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47324-97501	Tube, Rear Brake, No.4	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47333-97503	Tube, Rear Brake, No.12	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47334-B5010	Tube, Rear Brake, No.13	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
47389-97201	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90041-20091	New Genuine Part	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90043-03095	New Genuine Part	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90044-01079	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90044-14026	Way(For Front Brake Tube)	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90044-46059	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90044-61287	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90044-61363	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90044-61718	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90044-61850	Clamp, Brake Tube, No.9	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90044-64622	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90044-64742	Clamp (For Front Drive Vacuum Tube)	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90044-64826	Clamp, Front Drive Vacuum Tube, No.1	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90044-65441	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90044-65520	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90044-65521	Clamp, Brake Tube, No.13	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90048-76010	New Genuine Part	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90049-22178	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90049-22197	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
91553-80816	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
91611-60830	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
91611-G0612	Bolt	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
91612-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
91651-60618	Bolt(For Oil Receiver Pipe)	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
91651-G0616	BOLT WWASHER	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
96221-30705	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([12.2011 - 08.2013] W/ABS (1112-1308))
